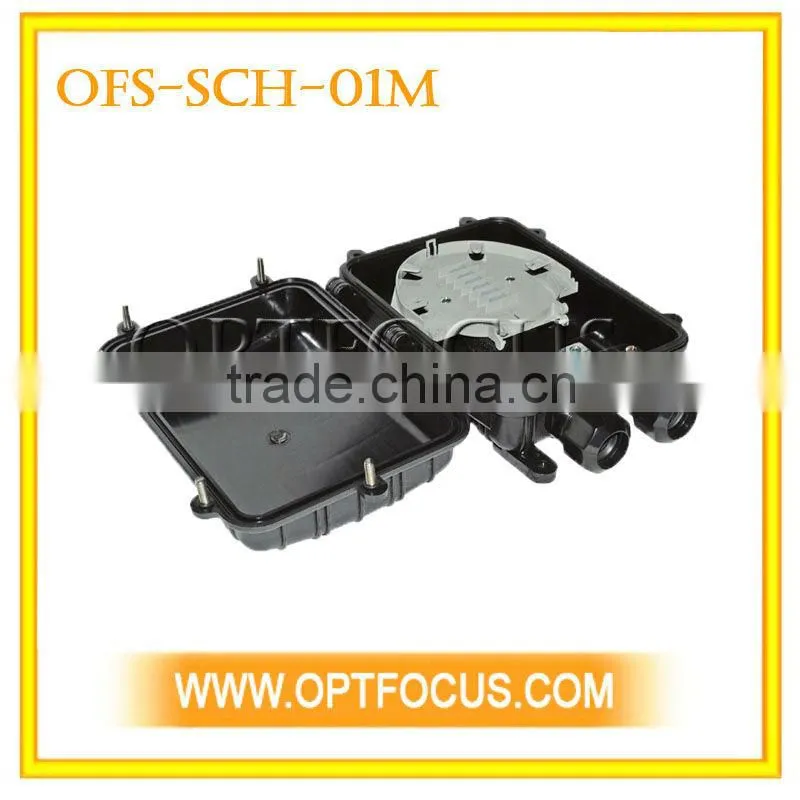

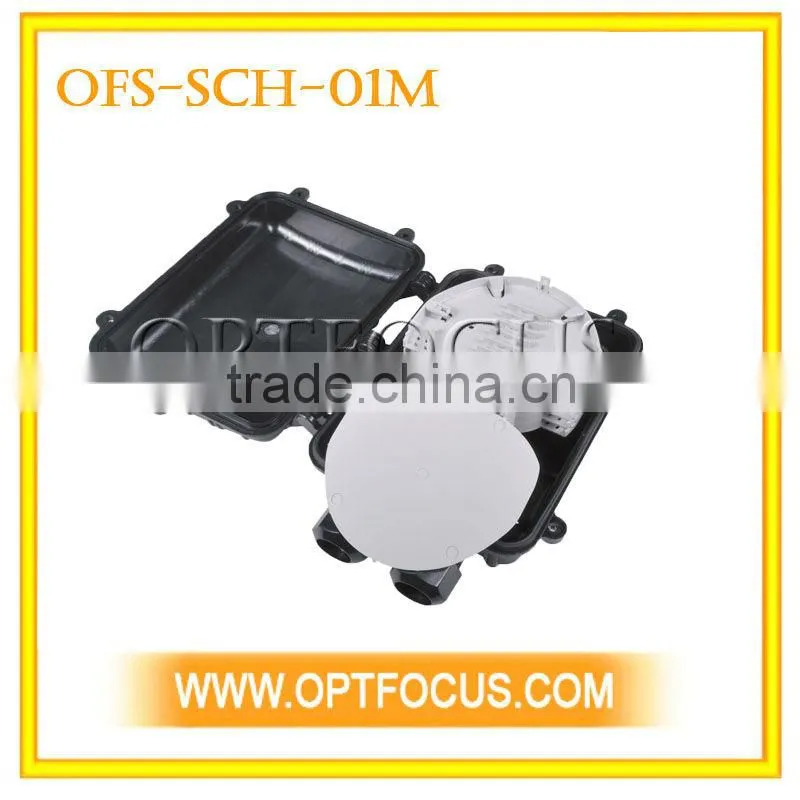

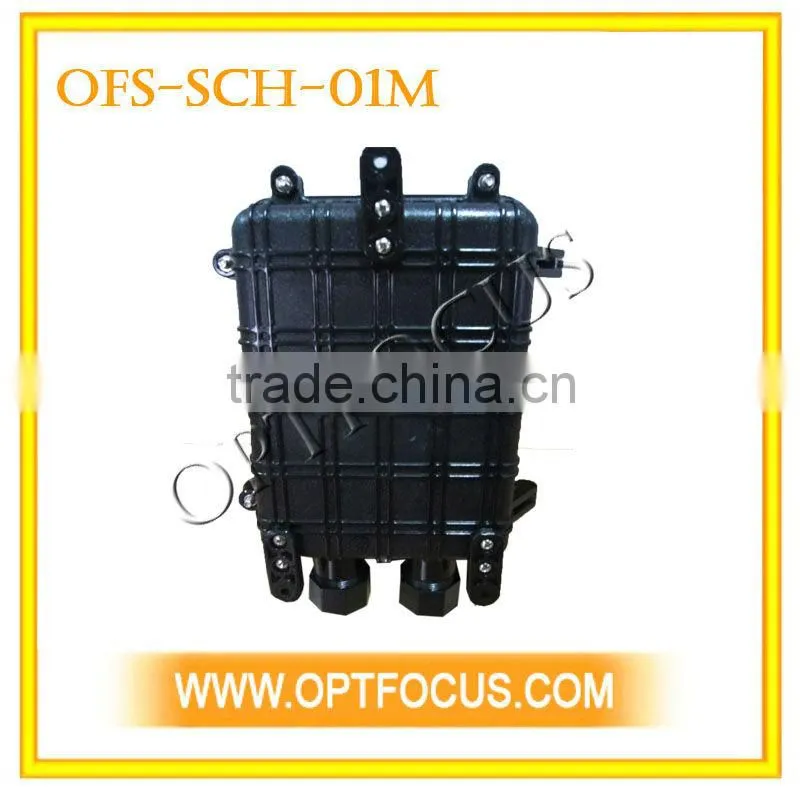

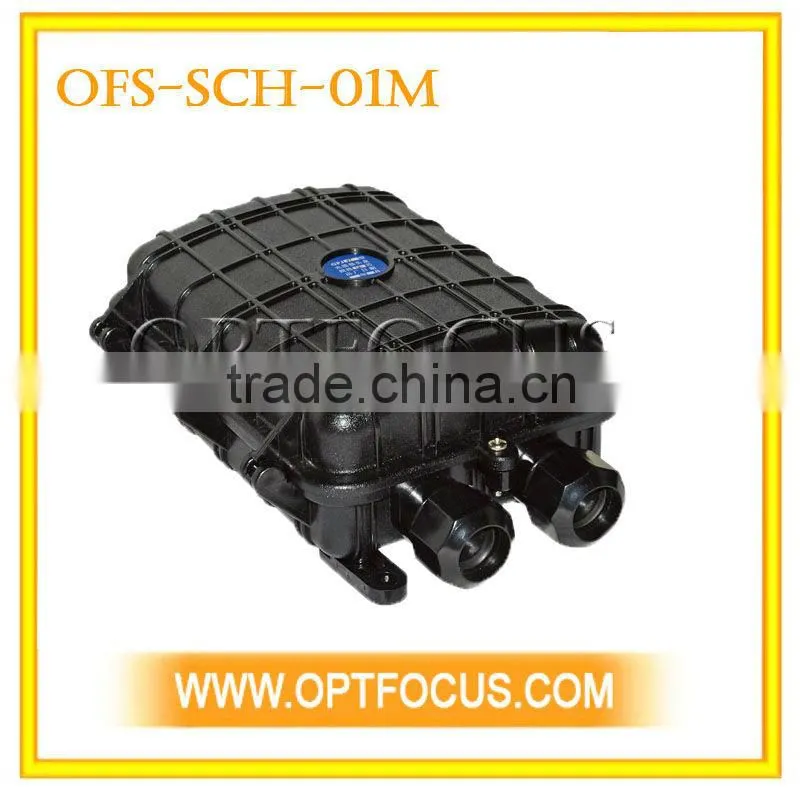

Horizetal Enclosure OFS-SCH-01M
Specifications
OFS-SCH-01B horizetal closure1.high quality , IP 68
2. 24core,1 in 1out
OFS-SCH-01M
Horizontal Splice Closure
Features:
l Excellent sealing performance, reusable. Protection grade is IP 68.
l Installation Method: wall-mounted, aerial, pipe-lined, manhole
l Feature:
l Easy in operation and good in practicality.
l Inner and external push button can insure good sealing, requirements of cable torque, stretching, pressure, bending.
l Vulcanized sealing can meet the Φ8—Φ14 (mm) optical cable sealing needs with excellent re-package performance.
l The ambient temperature ranges from -40 to +65°C.
Applications
The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhold.
OFS-SCH-01M Fiber Optic Splice Closure Datasheet
Model No. |
Size (mm) L×W×H |
Core capacity |
Cable Ports (max) |
Max diameter of cable (mm) |
Weight (excluding outside box) |
OFS-SCH-01M-1 |
280x200x90 (mm) |
96 |
2(1 in 1 out) |
Φ8—Φ14 (mm) |
280x200x90 (mm) |
OFS-SCH-01M-2 |
280x200x90 (mm) |
96 |
2(1 in 2 out) |
Φ8—Φ14 (mm) |
280x200x90 (mm) |
Main components
No. |
Name of components |
Quantity |
Usage |
Remarks |
1 |
FOSC cover |
1 piece |
Protecting fiber cable splices in whole |
Internal diameter: 205x146 (mm) |
2 |
FOSC bottom |
1 piece |
Fixing reinforced core, fiber cable and FOST |
Internal diameter: 205x146 (mm) |
3 |
Fiber optic splice tray (FOST) |
Max. 4 pieces (bunchy) |
Fixing heat shrinkable protective sleeve and holding fibers |
Suitable for: Bunchy:6,12,24(cores) |
4 |
Integrated seal fitting |
1 set |
Sealing between FOSC cover and FOSC bottom |
|
5 |
Port plug |
2 pieces |
Sealing empty ports |
|
6 |
Earthling deriving device |
1 set |
Deriving metallic components of fiber cable in FOSC for earthling connection. |
Configuration as per requirement. |
