Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Horizetal Optical Splice Closure

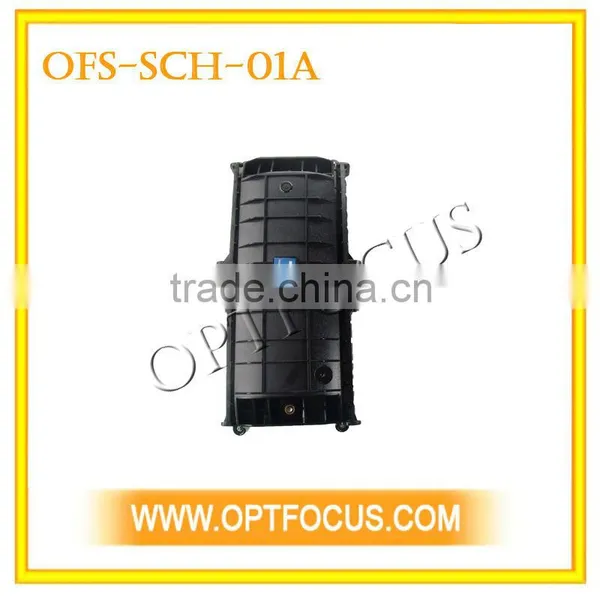

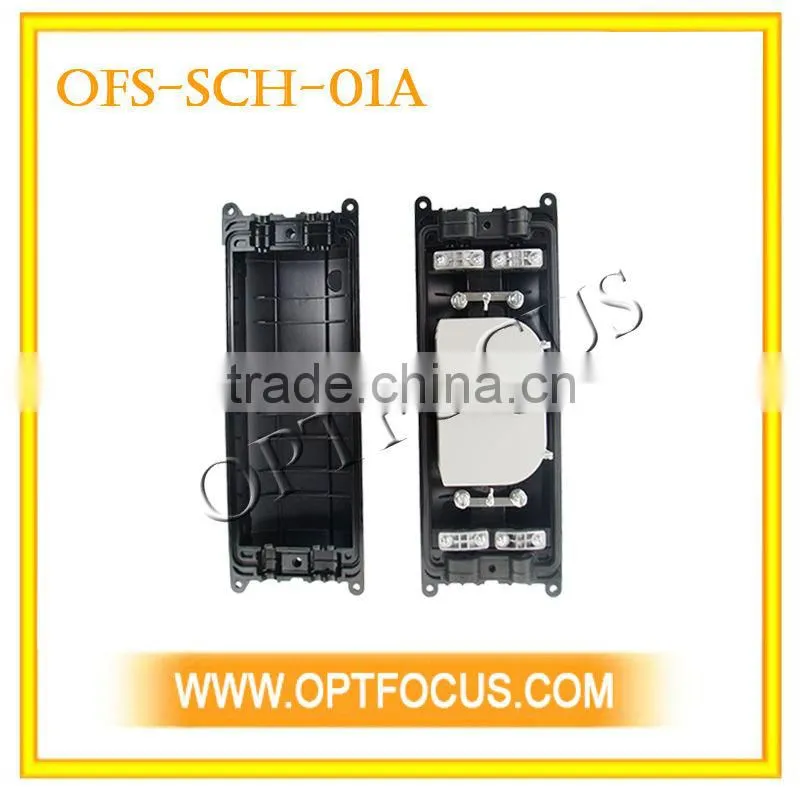

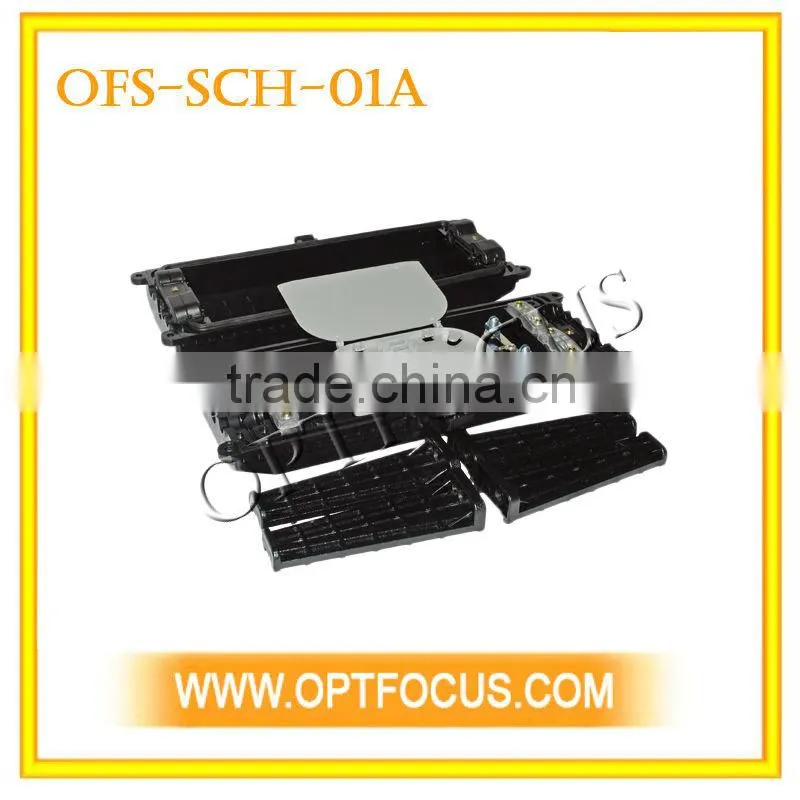

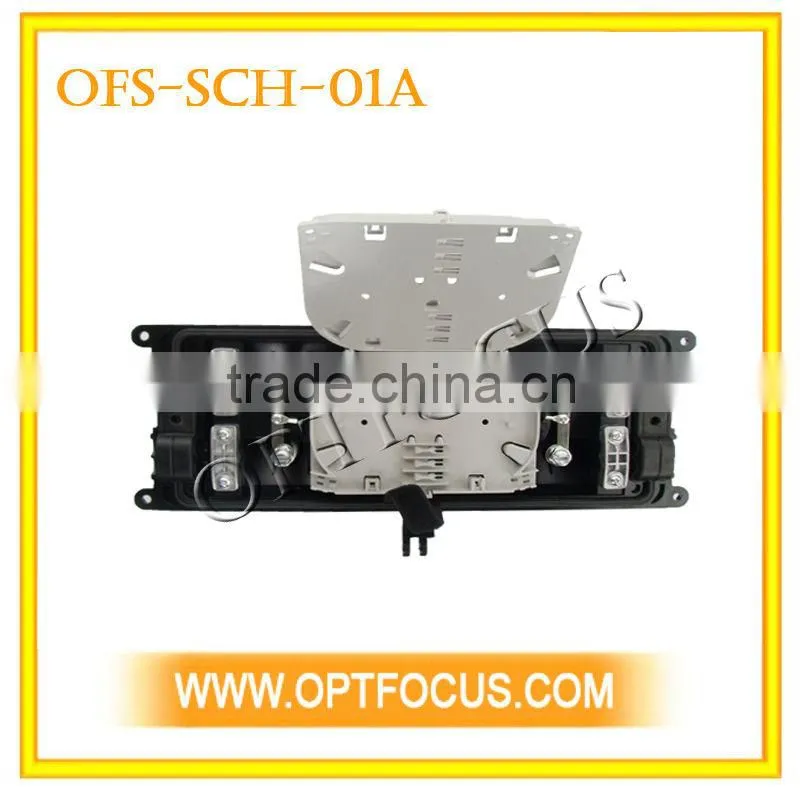

Horizetal Optical Splice Closure

Name: Horizetal Optical Splice Closure
Brand: OPTFOCUS
SKU: 107908075
Availability: InStock

Horizetal Optical Splice Closure thumbnail-1

Horizetal Optical Splice Closure photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OPTFOCUS

Model Number:

OFS-SCH-01A

Contact Supplier Request Quote Chat Now

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OPTFOCUS

Model Number OFS-SCH-01A

Specifications

OFS-SCH-01A horizetal closure
1.high quality ,Protection grade is IP 68
2.wall-mounted, aerial,pipe-lined manhole

Horizontal Fiber Optic Splice Closure (FOSC)

OFS-SCH-01A

1.Features:

l Gule seal: Excellent sealing performance,reusable. Protection grade is IP 68.

l Installation Method: wall-mounted, aerial,pipe-lined,manhole

l Feature:

l Easy in operation and good in practicality.

l Inner and external push button can insure good sealing,requirements of cable torque , stretching, pressure, bending.

l Vulcanized sealing can meet the Φ8—Φ16(mm) optical cable sealing needs with excellent re-package performance.

l The ambient temperature ranges from -40 to +65°C.

2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (LxWxH)	410x200x120(mm)
Weight (excluding outside box)	1900g-2100g
Number of inlet/outlet ports	6 ports
Diameter of fiber cable	Φ8—Φ16(mm)
Capacity of FOSC	Bunchy: 6—96(Cores) Ribbon: max. 144 (Cores)

2.2 Main components

No.		Name of components	Quantity	Usage	Remarks
1		Housing	1 set	Protecting fiber cable splices in whole	Internal diameter: 285x110 (mm)
2		Insert plate	2 pairs	Fixing the housing	175x56x30(mm)
3		Fiber optic splice tray (FOST)	Max. 4 trays (bunchy) Max. 4 trays (ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy: 6,8,12,16,24(cores) Ribbon: 3 (pieces)
4		Foundation	1 set	Fixing fiber cable, reinforced core and FOST
5		Seal fitting	1 set	Sealing between FOSC cover and FOSC bottom
6		Port plug	6 pieces	Sealing empty ports
7	Earthing deriving device		1 set	Deriving metallic parts of fiber cables in FOSC for earthing connection	Configuration as per requirement

2.3 Main accessories and special tools

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Insulation tape	1 roll	Enlarging diameter of fiber cable for easy fixing
4	Seal tape	1 roll	Enlarging diameter of fiber cable which fits in with seal fitting	Configuration as per specification
5	Hanging hook	1 set	For aerial use
6	Earthing wire	1 piece	Putting through between earthing devices	To put through as per actual requirement
7	Abrasive cloth	1 piece	Scratching fiber cable
8	Labeling paper	1 piece	Labeling fiber
9	Special wrench	3 pieces	Fixing bolts, tightening nut of reinforced core
10	Measuring paper	1 piece	To measure perimeter of fiber cable, of which the diameter is enlarged with seal tape	To measure perimeter with the corresponding measuring paper
11	Buffer tube	To be decided by customers	Hitched to fibers and fixed with FOST, managing buffer	Configuration as per requirement
12	Desiccant	1 bag	Put into FOSC before sealing for desiccating air.

Applications

The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole.

INSTALLATION METHODS

Remarks:

Installation accessories provided: one set of elastic seal fitting, seal tape, insulation tape, 2 pieces of special wrenches, abrasive cloth, earthing wire, nylon ties, labeling paper, measuring paper and desiccant.
Accessories by customers’ selection: earthing device, buffer pipe for bunchy fiber, pressure testing valve, adapter panel, adapter, pigtail, patchcord, wall-mounting bracket and pole mounting bracket.
