Horizontal Splitter Splice Closure OFS-FTH-501

Name: Horizontal Splitter Splice Closure OFS-FTH-501
Brand: OPTFOCUS
SKU: 107908005
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

OPTFOCUS

Model Number:

OFS-FTH-501

Shenzhen Optfocus Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name OPTFOCUS

Model Number OFS-FTH-501

Specifications

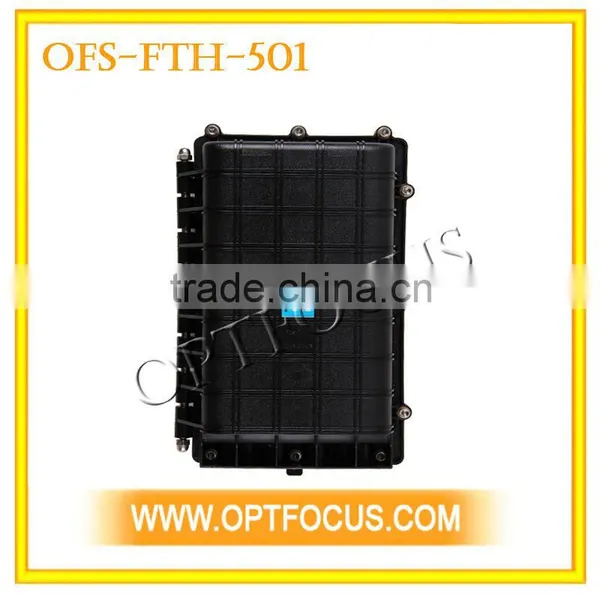

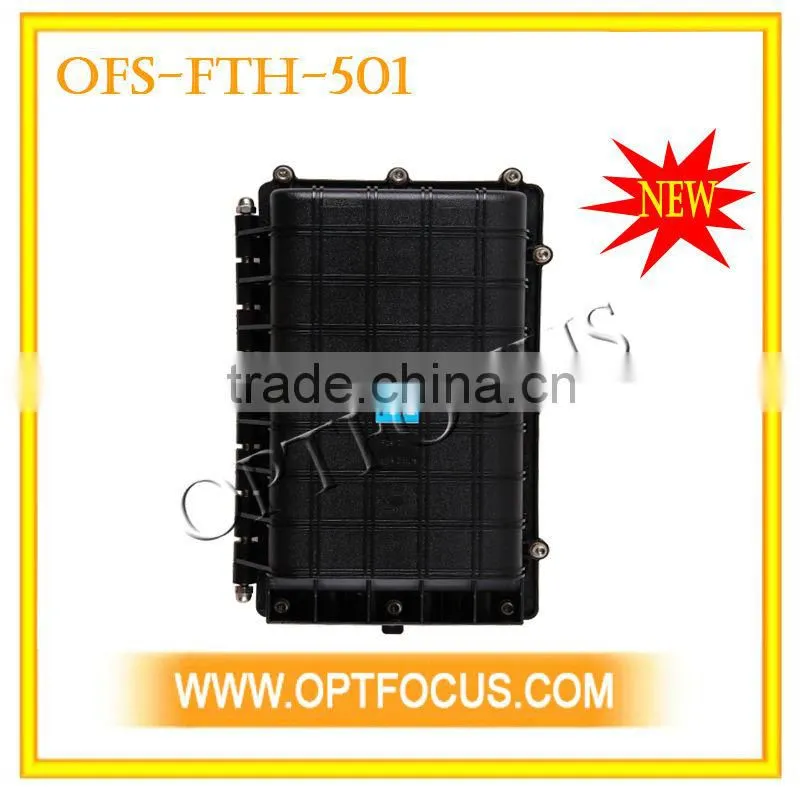

Horizontal Splitter Splice Closure
1.high quality , IP 68
2.Max capacity 288C

1.Horizontal Splitter Splice Closure

1.1 Features:

Advanced internal structure design
Easy to re-enter, it never requires re-entry tool kit.
The closure is spacious enough for winding and storing fibers
Fiber Optic Splice Trays(FOSTs) are designed in SLIDE-IN-LOCK and its opening angle is about 90^o
The curved diameter meets with international standard
Easy and fast to increase and reduce FOSTs
Straight-through for un-cutting and branching for cut
Lay adapters suit for FTTH and easy to operate

1.2Applications

2. Basic structure and configuration

2.1 Dimension and capacity

Outside dimension (LxWxH)	385x248x120 (mm)
Weight (excluding outside box)	3200g – 3600g
Number of inlet/outlet ports	6 (pieces) on each side
Diameter of fiber cable	Φ8—Φ23 (mm)
Capacity of FOSC	Bunchy: 12—288 (Cores) Ribbon: max. 864 (Cores)

2.2 Main components

No.		Name of components	Quantity	Usage	Remarks
1		Housing	1 set	Protecting fiber cable splices in whole	Internal diameter: 330x188x110 (mm)
2		Fiber optic splice tray (FOST)	max 9 pieces (bunchy) max. 6 pieces (ribbon)	Fixing heat shrinkable protective sleeve and holding fibers	Suitable for: Bunchy:12,24,48(cores) Ribbon:12 (pieces)
3		Seal fitting	1 set	Sealing between FOSC cover and FOSC bottom
4		Port plug	6 pieces	Sealing empty ports
6	Pressure testing valve		1 set	After injecting air, it is used for pressure testing and sealing testing	Configuration as per requirement
7	Earthing deriving device		1 set	Deriving metallic components of fiber cable in FOSC for earthing connection	Configuration as per requirement

2.3 Main accessories and special tools

No.	Name of accessories	Quantity	Usage	Remarks
1	Heat shrinkable protective sleeve		Protecting fiber splices	Configuration as per capacity
2	Nylon tie		Fixing fiber with protective coat	Configuration as per capacity
3	Insulation tape	1 roll	Enlarging diameter of fiber cable for easy fixing
4	Seal tape	1 roll	Enlarging diameter of fiber cable which fits in with seal fitting	Configuration as per specification
5	Hanging hook	1 set	For aerial use
6	Earthing wire	1 piece	Putting through between earthing devices
7	Abrasive cloth	1 piece	Scratching fiber cable
8	Labeling paper	1 piece	Labeling fiber
9	Special wrench	3 pieces	Fixing bolts, tightening nut of reinforced core
10	Measuring paper	1 piece	To measure circle, of which its diameter is enlarged with seal tape
11	Buffer tube	To be decided by customers	Hitched to fibers and fixed with FOST, managing buffer	Configuration as per requirement
12	Desiccant	1 bag	Put into FOSC before sealing for desiccating air.
