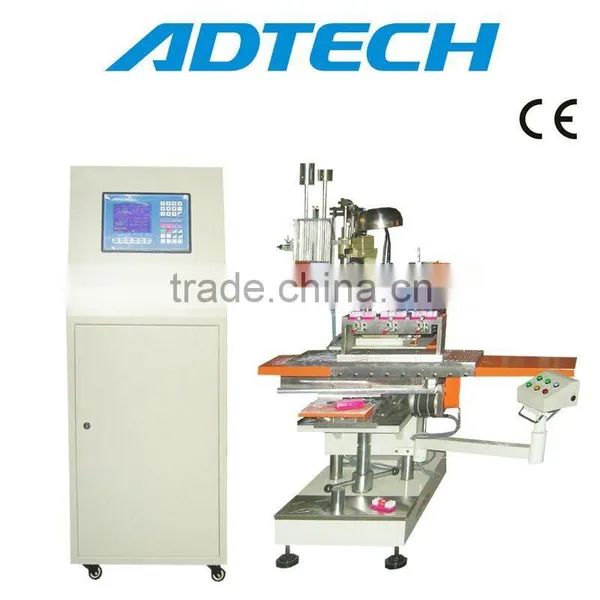

BM-CNC2Z01P 2 Axes Tufting Brush Machine

Name: BM-CNC2Z01P 2 Axes Tufting Brush Machine
Brand: adtech
SKU: 107838733

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Product Type:

Other

Place of Origin:

China

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Product Type Other

Place of Origin China

Brand Name adtech

Model Number BM-CNC2Z01P

Certification CE

Specifications

This 2-axis brush machine is suitable for making various kinds of horizontal, flat wooden or plastic brushes.

With 5.7 LCD screen,Chinese and English interface.
Supports data switching.The controller can be used as a U-Disk,and it also can be connected with U-Disk.
Convenient to adjust the hole position with the handwheel.
Long life , nice feel,and reliable keypad.
Safe to operate.With alarming fuction ,the system will give an alam and stop to run when the machine fails.
Full Featured, Editing functions of processing data, such as ADD, ALT,INSERT,DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.
Easy to operate and program.
Large capacity,it can store 2000 programmes and each programme can imput 100,000 processing data.
Convenient to find the specific program by choosing the program number.
Standard designed circuit reduces the line interference and makes sure send the correct singal.
You can confirm whether the hole postion is right by step test after the program is saved.
Reasonable designed mechanical part position makes the machine good features.
Standard spare parts offered.
Spare parts are all made by our factory.It is very easy to replaceable.

Item	Model	BM-CNC2Z01P
1	NO. of axis	2-axis
2	The stroke of X axis	300mm rovide flexible customize for customer.
2	The stroke of Y axis	200mm rovide flexible customize for customer.
3	Setting of Worktable	high-precision straight-line rail and ball screw,steady and durable.
4	Material of Brush Handle	Polyethylene, polystyrene, return materials, wood
5	Material of Filaments	PP,nylon,bristle,stainless steel,brass wire
6	Application	To tuft varieties of flat plastic brushes
7	Diameter of Filaments	0.08mm-1.2mm
8	The length of filament(outside the hole)	35mm
9	Diameter of hole	2mm-8mm
10	Colors of Brush Filaments	single color or double colors
11	Maximum Tufting Speed	5 holes/second
12	AC motor	Delta Brake Motor
13	Type&Brand of Driver/Motor	stepper motor&driver , can adopt some brand motor&driver requested by users.
14	Adjust Speed	Frequency-conversion stepless-adjustable speed
15	Replaceable Fixture	FMS type. It can be easily changed to make other kinds of brushes.
16	Head mode	Flat
17	Programme Storage	Store 2000 programme,each can imput 100 thousand processing data.
18	Program System	CNC system,high precision,stability and efficiency
19	Dimension(LWH)	850×850×1200mm
20	Gross weight	280KG
21	Power	Single-phase 220v , 3-phase 220v or3-phase 380v, 50-60Hz
22	Total power	About 800w
23	Compressed Air Pressure	0.6-0.8Mpa
