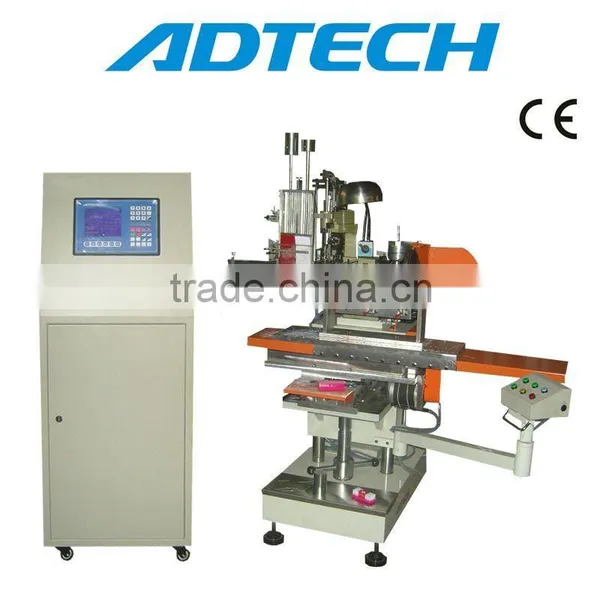

BM-CNC2K01 2-Axis Drilling Machine/brush Drilling Machine

Name: BM-CNC2K01 2-Axis Drilling Machine/brush Drilling Machine
Brand: Adtech
SKU: 107838745

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Adtech

Model Number:

BM-CNC2K01

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Adtech

Model Number BM-CNC2K01

Specifications

2-Axis brush drilling machine
1)Drill different material brush:plastic, wood ect
2)Diameter of hole:2-5mm
3)Easy to operate

Item	Model	BM-CNC2K01P
1	NO. of axis	2-axis
2	The stroke of X axis	300mm rovide flexible customize for customer.
2	The stroke of Y axis	200mm rovide flexible customize for customer.
3	Setting of Worktable	high-precision straight-line rail and ball screw,steady and durable.
4	Material of Brush Handle	Polyethylene, polystyrene, return materials, wood
5	Application	To drill varieties of flat wood brush and plastic brush
6	Depth of hole	1-12mm
7	Diameter of hole	1.5-8mm
8	Maximum Drilling Speed	6holes/second
9	Max Speed	15000n/min
10	High Speed Motor	Delta High-Speed Motor
11	AC motor	Delta Brake Motor
12	Type&Brand of Driver/Motor	stepper motor&driver , can adopt some brand motor&driver requested by users.
13	Adjust Speed	Frequency-conversion stepless-adjustable speed
14	Replaceable Fixture	FMS type. It can be easily changed to make other kinds of brushes.
15	Programme Storage	Store 2000 programme,each can imput 100 thousand processing data.
16	Program System	CNC system,high precision,stability and efficiency
17	Dimension(LWH)	850×850×1200mm
18	Gross weight	300KG
19	Power	Single-phase 220v , 3-phase 220v or3-phase 380v, 50-60Hz
20	Total power	About 600w
21	Compressed Air Pressure	0.6-0.8Mpa

1	With 5.7 LCD screen,Chinese and English interface.
2	Supports data switching.The controller can be used as a U-Disk,and it also can be connected with U-Disk.
3	Convenient to adjust the hole position with the handwheel.
4	Long life , nice feel,and reliable keypad.
5	Safe to operate.With alarming fuction ,the system will give an alam and stop to run when the machine fails.
6	Full Featured, Editing functions of processing data, such as ADD, ALT,INSERT,DELETE, makes it convenient to solve these problems: the deviation of hole position, hole-repeating and hole-missing.
7	Easy to operate and program.
8	Large capacity,it can store 2000 programmes and each programme can imput 100,000 processing data.
9	Convenient to find the specific program by choosing the program number.
10	Standard designed circuit reduces the line interference and makes sure send the correct singal.
11	You can confirm whether the hole postion is right by step test after the program is saved.
12	Reasonable designed mechanical part position makes the machine good features.
13	Standard spare parts offered.
14	Spare parts are all made by our factory.It is very easy to replaceable.
