Home > Consumer Electronics > LED Display > Indoor LED Display > Full Color Rotatable Stage Led Mesh Screen

Full Color Rotatable Stage Led Mesh Screen

Name: Full Color Rotatable Stage Led Mesh Screen
Brand: LAMP
SKU: 107760693
Availability: InStock

Full Color Rotatable Stage Led Mesh Screen thumbnail-1

Full Color Rotatable Stage Led Mesh Screen photo-1

US$ 1 - 8,000 MOQ: 5 Square Meters

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

LAMP

Model Number:

P18.75 Seele series

Contact Supplier Request Quote Chat Now

Shenzhen Lamp Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name LAMP

Model Number P18.75 Seele series

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, P18.75

Screen Dimension unlimited

Specifications

P18.75 led mesh display
1)High see through rate
2)Completely DIY cabinet design
3)Easy formation of a complete circle display

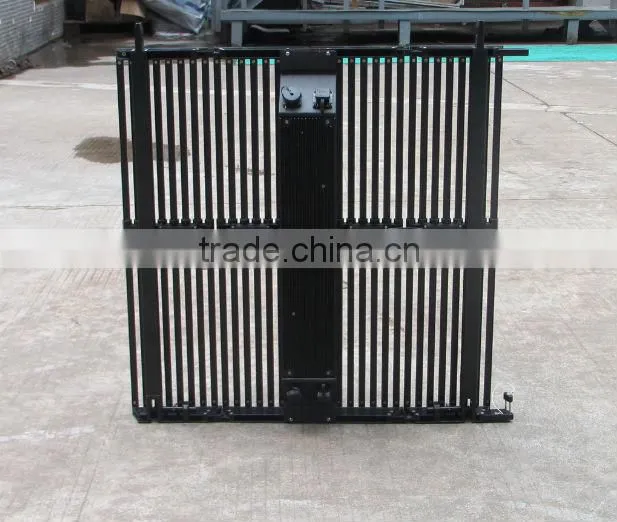

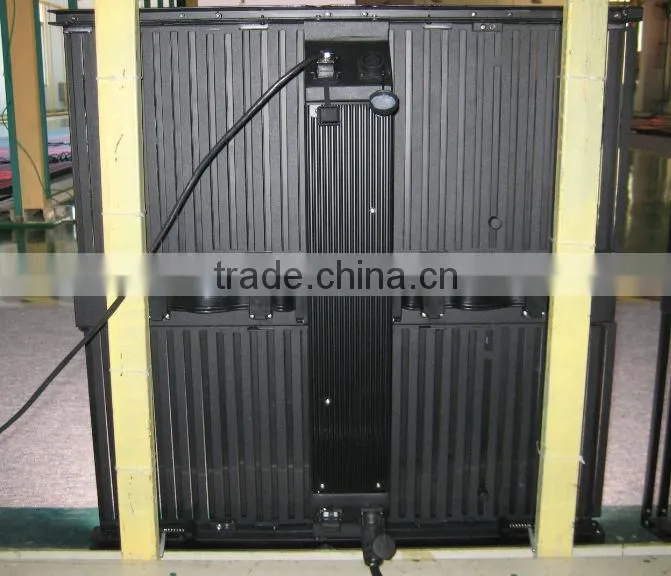

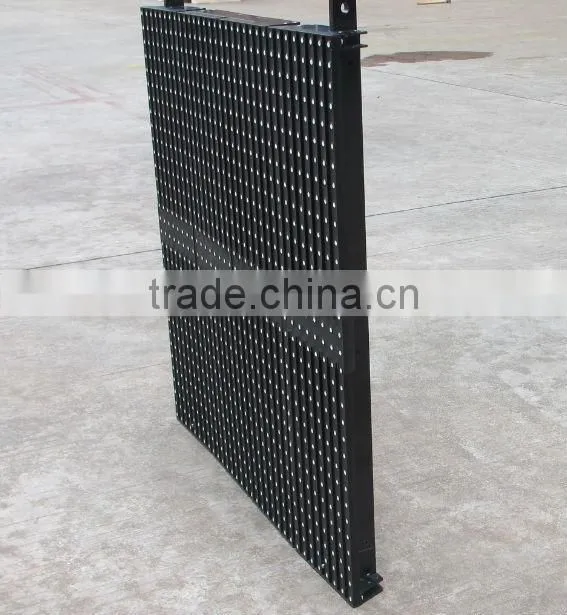

Full color rotatable stage led mesh screen

Main features

1.Fast Assembly
Creative design on the connection structure which could be installed fast and easily without tools. And the assembly or disassembly of single module is applicable for any position on the display.

2.Rotated Stucture
Ventilative module which can be rotated to and fro.

3.Fan-less
A fan-less design to meet all kinds of quiet occasions.

4.High Power Efficiency
A high efficiency power supply with 83% power efficiency which saves 10% more than normal display.

Specification

Visual Parameter
Pixel Pitch:	18.75mm
Pixel Density:	2,844 pixels/sq meters
Pixel Configuration:	SMD5050
Cabinets Dimension:	60060091 mm
Cabinets Resolution:	32*32 pixels
Performance Parameter
Brightness:	5,000 cd/sq meters
Best Viewing Distance:	> 20m
Max Consumption:	200 W/cabinet
Weight:	8 kg/unit
Viewing Angle:	Horizontal angle: 140 degree Vertical angle: 140 degree
Gray Scale Level:	16 bit
Refresh Rate:	1,600Hz
Rotation Angle:	-15°~ +15°
Scan Mode:	Static
Material:	Aluminum alloy
LED Lifetime:	50,000 hours
Environment Parameter
Temperature Range:	-20~60°C
Operation Humidity:	10%~99%
Ingress Protection:	IP65
Control Parameter
Control System:	LINSN
Control Distance:	100m via CAT05/Maximum 10km via Fiber Optic (Single mode)
Signal:	DVI up to UXGA, SDI, HD-SDI, S-video, compositem, YUV

All product specifications are for reference only and subject to change without prior notice;

Please contact sales for details;

Pictures showing

As a modular system of LED video panels which designed for the demanding rental and staging market & fixed installations, seele allows you to create your own video imaging design to set your staging apart from the ordinary.

A true IP65 protection rating, wide operating temperature range and high brightness enable the curtain to be used in most indoor & outdoor applications. Until now, seele series includes 18mm and 40mm for outdoor application, and a 6mm is in process.

Technologies:

Currently, LAMP Tech has developed various products and solutions, some of which are unique in the global market. Besides the regular led screens such as fixed installation and rental screens, we are ahead of our competitors in the following products and solutions such as

1. EMC compliance — TUV certified screens, both in Class A and Class B;

2. ETL compliant – we passed the formality by ETL certification authority in 2009, and have been under strict inspection and supervision by such organization;

3. Finest pixel pitch led screens in the world: P1.5mm, P1.8mm, P2.0mm & P2.5mm, and has achieved great popularity and generated great sales with these unique products;

4. Finest pixel pitch and magnificent outdoor curtain screens in the world: P9 outdoor curtain screen, P10.41mm curtain screen, and so on;

5. Probably the thinnest and spectacular die-cast cabinet for indoor products with the pixel pitches of P4mm, P5mm, P6mm & P10mm, etc;

6. A completely flexible product that enables users to form a complete circle easily;

All above new and popular products, together with a lot more others yet to come, are our own proprietary products and have been developed by our most talented technical team.
