1.Two engineers available to service machinary overseas.
2. It's 12 months warranty.
Company: Yuedong Metallizer
Sales assistant: Ms Sophia Chen
Mobile: +86-13902736527
1. Certificate: CE
2. World customers: We sold more than 20 machines to India,Turkey,Iran,Vietnam,Bangladesh and North Korea.
3. Our hall at Chinaplas 2014: W5
4. Our booth at Chinaplas 2014: P05
|
type |
WFT-800 | WFT-1200 | WFT-1600 | WFT-1800 | WFT-2000 |
| Max.dia of film | 800 | 800 | 800 | 800 | 800 |
| Max.width of film | 800 | 1200 | 1600 | 1800 | 2000 |
| Max.dia of product | 500 | 500 | 500 | 500 | 500 |
| Max.width of product | 12-800 | 20-1200 | 50-1600 | 80-1800 | 80-2000 |
| slitting speed | 200 | 200 | 200 | 200 | 200 |
Usage of slitting machine:
WFT Series Slitting Machine: Mainly used in plastic film, non-woven fabric, cellophane, and aluminum foil, etc. Web slitting.
Main features:
Horizontal plane for the machine, run a smooth, medium-speed operation suitable for a maximum cutting speed of 200M/Min, maintenance is simple, low failure rate.
Structure features of slitting machine:
1. Let the ordinary mechanical shaft volume, the fixed sleeve in order to adapt to the deformation of the substrate paper core;
2. Put volume correction used to improve the precision slitting;
3. Dual-admission scroll up using gas-axis, and is equipped with pressure roller;
4. Vol retractable tension independent from their respective magnetic clutch control;
5. Selvage works by guiding high-power wind fan, will be spent the right side by the wind blow pipe;
6. Independent, integrated computer control, rolling count, Automatic shutdown of meters;
7. All aluminum guide roller machine are Taiwan and Shanghai joint venture production of high-hardened guide roller, balanced movement.
8. Can be used and film circle knife knife (based on user needs).

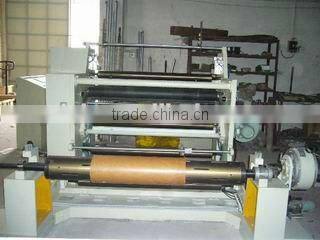

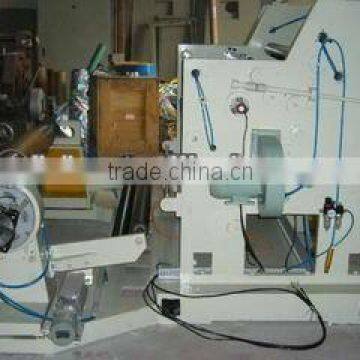

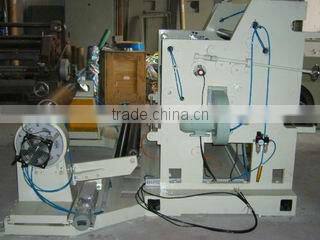

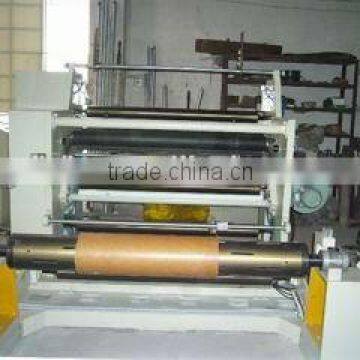

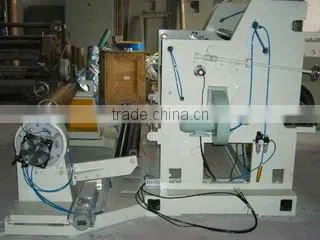

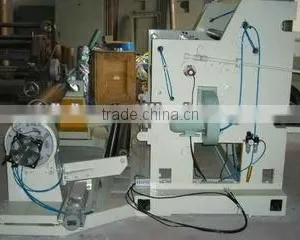

The details of slitting machine:
