1.By surface rewinding to achieve rewind .
2.The machine is suitable for rewind and slitting the plastic films such as CPP,PET and Metallized films.
3.By closed loop to control the unwind tension which consist of magnetic powder brake,tension sensor and tension controller.
4.Equipped with a photoelectricity tracking and correction device.
5.Equipped with an automatic counter to set the length of production during working.
6.By imported drive to control the working speed of machine.
7.Both rewind shaft and unwind shaft are pneumatic inflate shafts.
8.By pneumatic devices to control rewind pressure.There is each pressure controller on both rewind shafts to control the suitable rewind pressure.
1.By surface rewinding to achieve rewind .
2.The machine is suitable for rewind and slitting the plastic films such as CPP,PET and Metallized films.
3.By closed loop to control the unwind tension which consist of magnetic powder brake,tension sensor and tension controller.
4.Equipped with a photoelectricity tracking and correction device.
5.Equipped with an automatic counter to set the length of production during working.
6.By imported drive to control the working speed of machine.
7.Both rewind shaft and unwind shaft are pneumatic inflate shafts.
8.By pneumatic devices to control rewind pressure.There is each pressure controller on both rewind shafts to control the suitable rewind pressure.

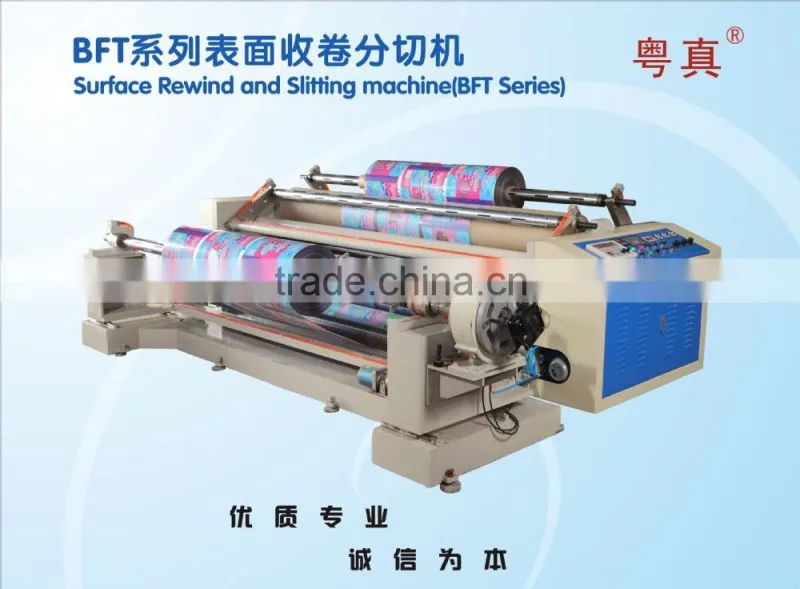

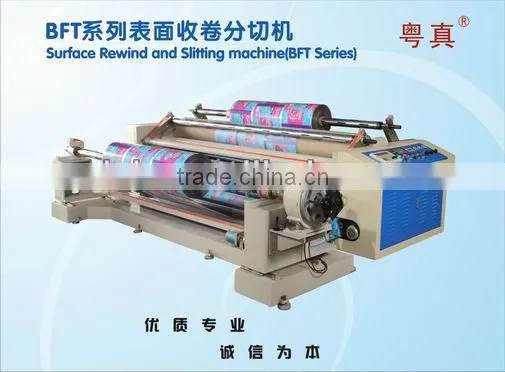

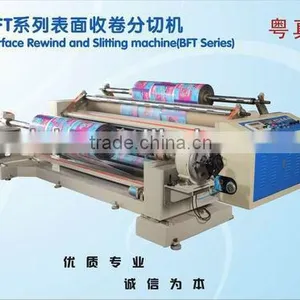

The parameters of rewinder and slitter machine:
Item |
BFT-1300 |
BFT-1600 |
BFT-2000 |
BFT-2500 |
| Max.Dia. of material (mm) | 700 |
700 |
800 |
800 |
| Max.width of material (mm) | 1320 |
1620 |
2020 |
2520 |
| Max.Dia. of rewind (mm) | 700 |
700 |
800 |
800 |
| Slitting width (mm) | 50~1300 |
50~1600 |
50~2000 |
50~2500 |
| Slitting speed (m/min) | 10~300 |
10~300 |
10~300 |
10~300 |
| Total power (Kw) | 4 |
5 |
6.5 |
8 |
| Outsize (L×W×H mm) | 2000*2400*1200 |
2000*2700*1200 |
2100*3100*1250 |
2100*3600*1250 |

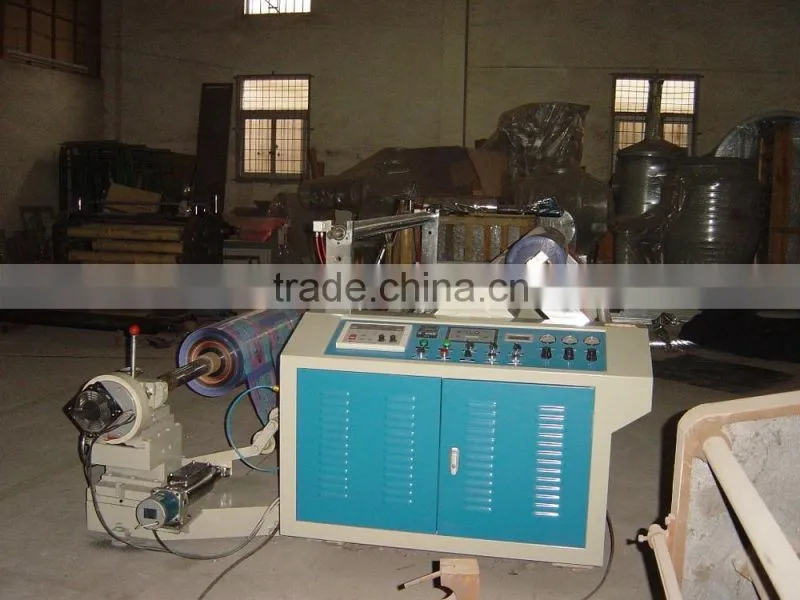

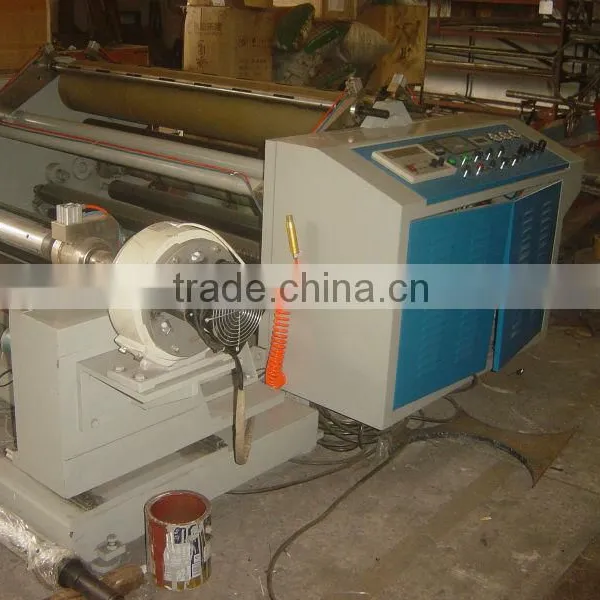

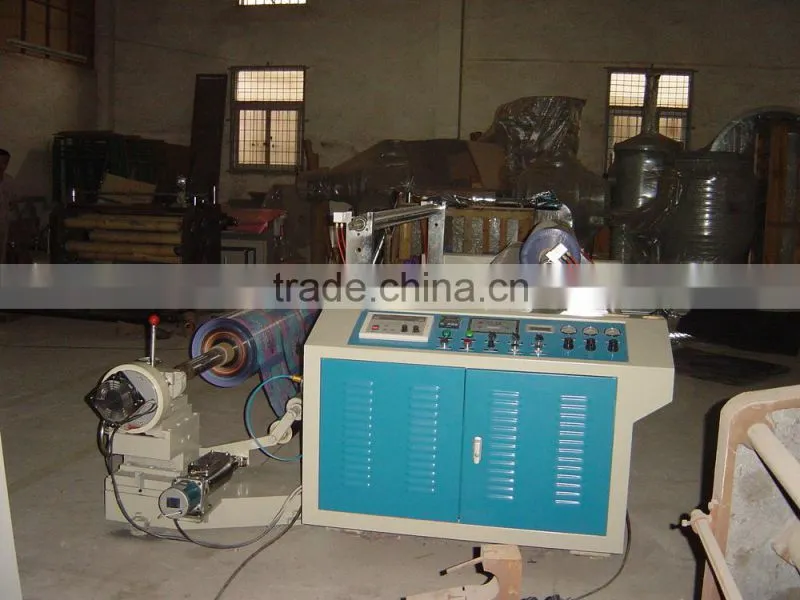

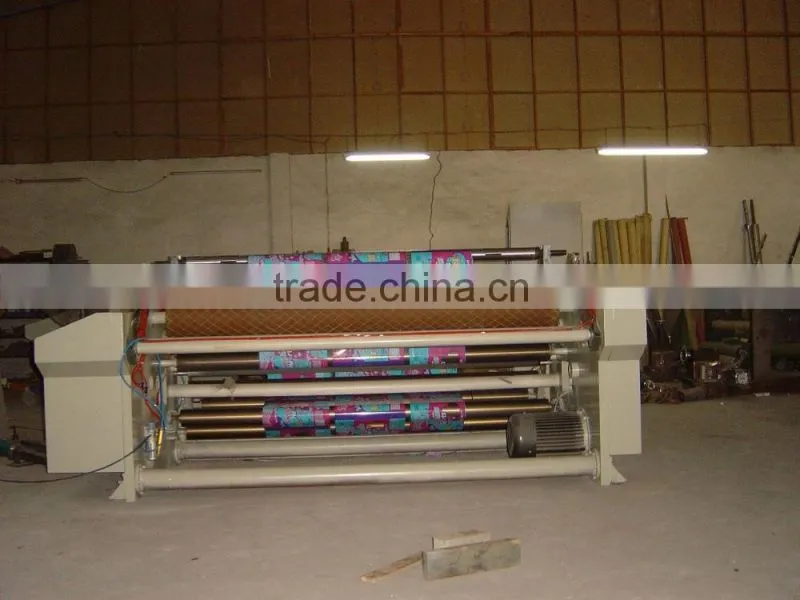

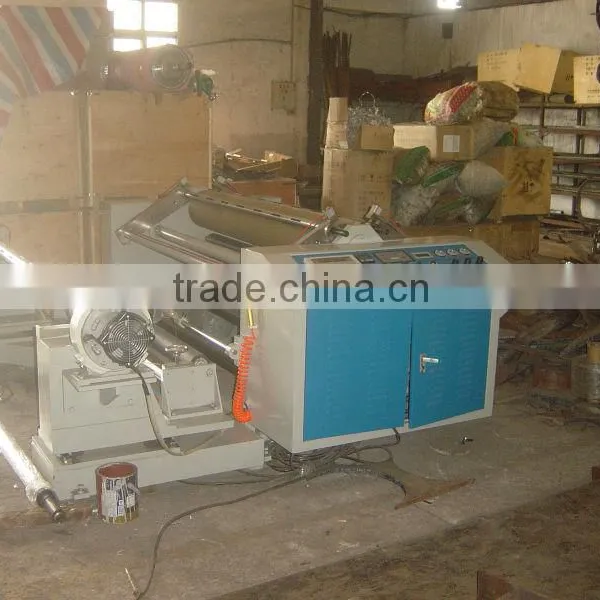

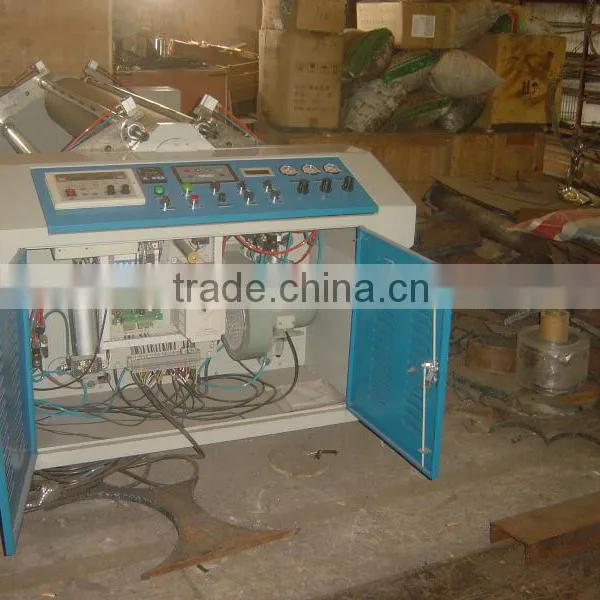

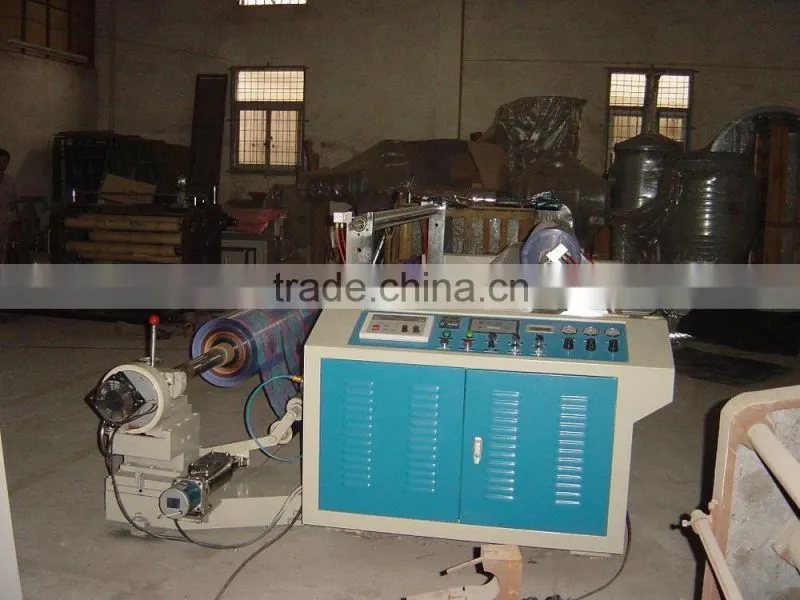

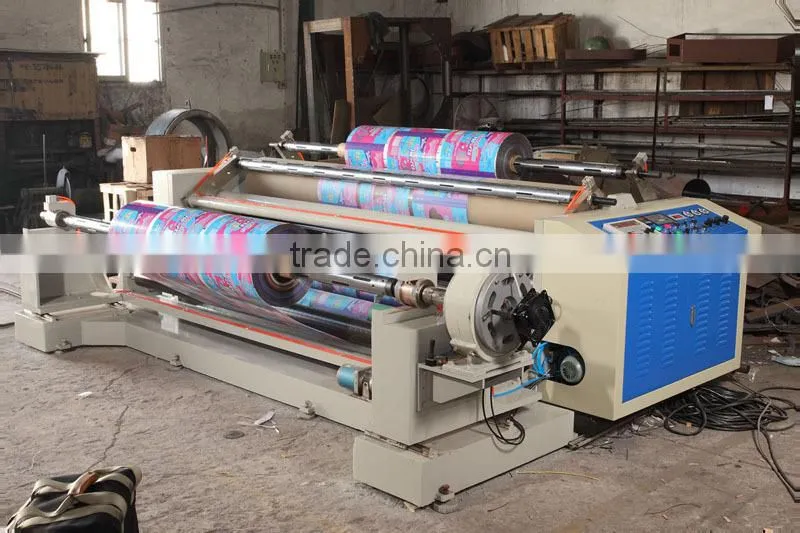

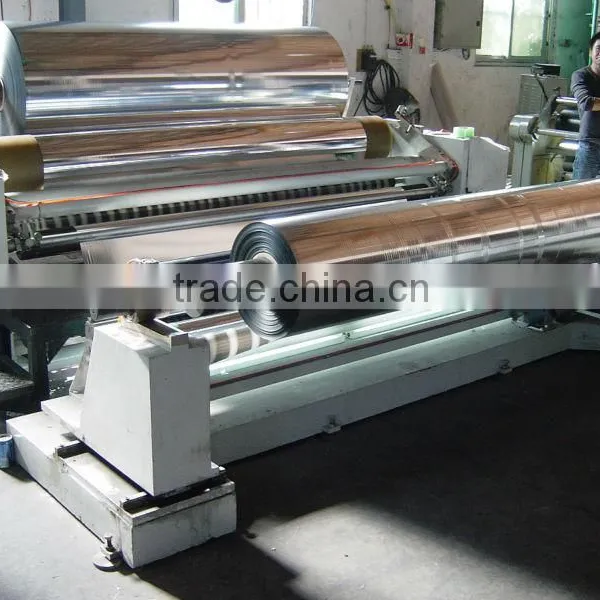

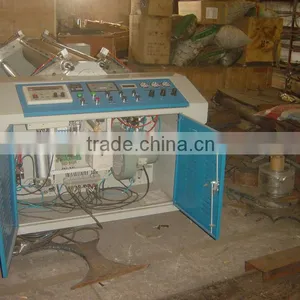

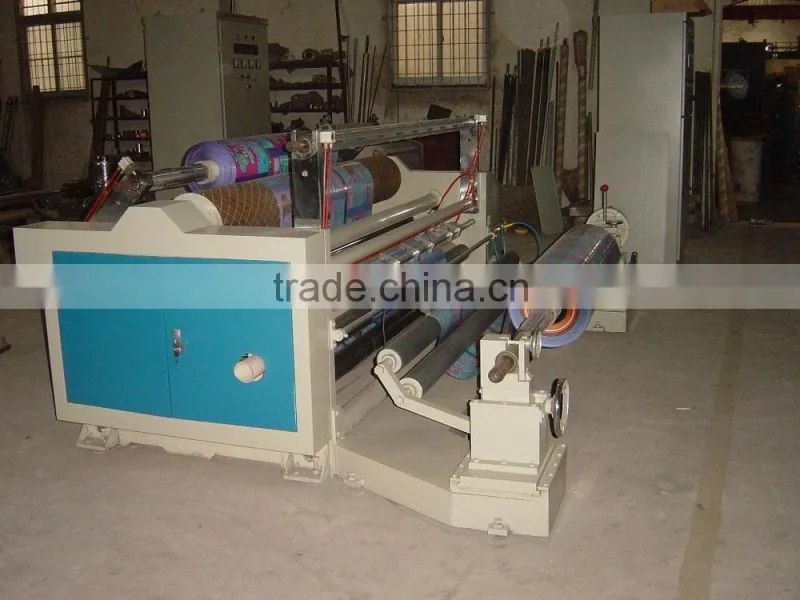

More details of rewinder and slitter machine:
