Richmor 4CH GPS SD 3G Live Video Streaming Vehicle CCTV DVR
US$ 255 - 290
/ Piece
1 Piece(Min. Order)
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Economic 2CH/4CH WIFI CCTV DVR 3G Mini DVR With Google Map
-
4CH CCTV Recorder H.264 3G GPS Car DVR Recorder
-
3G SD Card Mobile DVR 4 Channel H.264 Used in Bus, Truck, Police Car, Texi, Ship Etc.
-
4 Channel Car Mobile DVR 3G GPS Mobile DVR Super Wide Voltage 6~48V Ensuring the Stability Working on Vechile
-
Support Software Upgrading SD Card Mobile DVR Small Recorder Overload Short Circuit Over Temperature Protection
-
Professional Car Power Supply Design 4CH Mobile Car DVR Shock Proof Support Software Upgrading Customized Function
Product Details
| Place of Origin | Guangdong, China | Brand Name | RICHMOR | |
| Model Number | RCM-MDR501SDG |
Product Description
Specifications
Vehicle CCTV DVR1.3G GPS Live Video Vehicle CCTV DVR
2.6-48V,Phone monitor
3.OEM/ODM Accept
4.CE FCC RoHS,12 Month warranty
Richmor 4CH GPS SD 3G Live Video Streaming Vehicle CCTV DVR
Vehicle CCTV DVR Hardware
- 4CH full D1 high resolution recording.
- 3G/4G LTE, GPS and WIFI functions optional.
- G-sensor, RJ45 with IE browser access.
- Capable of remote PTZ and two-way talk.
- Other functions incl. "geo fence, batch configuration, 3G-WIFI auto switch etc."
- Rich external devices to link such as "LED panel, Advertising screen, RFID, oil sensor"
- Support CAN, OBD etc.
- Flexiable upgrade, locally or remotely with dual-flash strategy, no data loss.
- Up to 64GB SD Loop Recording storage, MINI size and shockproof.
- CE, FCC RoSH certified.
- SDK available for future development.
- 24/7 online Technical Support with years of at-field expertise.
- Factory 12 months warranty, OEM and LOGO accepted.
3G GPS SD Vehicle CCTV DVR Specification
| RCM-MDR501SDG series (4 channels SD Vehicle CCTV MDVR) | ||
| Item | Parameter | Performance |
| System | Language | Chinese / English |
| Operation System | Linux | |
| Interface | Imaging menu operation interface(OSD Menu) | |
| Password Security | 2 levels: Admin; Normal user | |
| Video | Video Input | 4 composite video input |
| Video Output | 1 composite video input | |
| Video on screen | Single or quadruple video on screen | |
| Video standard | PAL, NTSC | |
| Video compression | H.264 Main profile, 100 frame / sec | |
| Audio | Audio Input | 4 audio input |
| Audio Output | 1 audio output | |
| Audio Code | G726 | |
| Way of recording | Simultaneous recording of video and audio | |
| Image Processing & Storage | Image format | CIF/HD1/D1 Available |
| Standard of Video Stream | ISO14496-10 | |
| Code rate of Video | CIF: 1536Kbps ~ 128Kbps, | |
| HD1: 2048Kbps ~ 380Kbps, | ||
| D1: 2048Kbps ~ 400Kbps, | ||
| 8 levels of image quality: Class 1 the highest resolution, and class 8 the lowest. | ||
| Audio Code Rate | 8KB/s | |
| Data Storage | SD Card slots *2 (max.128GB) | |
| Alarm | Alarm input | Alarm Input *8 |
| Alarm output | Alarm Output*2 | |
| Communication Port | RS485 port | RS485*1 |
| RS232 port | RS232*2 | |
| CAN port | CAN*1 | |
| Ethernet Port | 10M/100M Ethernet*1 | |
| Extend Port | Intercom port | Intercom*1 |
| Speaker port | Speaker*1 | |
| Extend port | Connect control panel | |
| Speed port | Speed sensor*1 | |
| Wireless Modules | 3G WCDMA | WCDMA module available |
| WIFI | WIFI 802.11b/g/n module available | |
| GPS | Build-in module, to show Geo location, speed etc. Support google map, mapinfo etc. | |
| G-Sensor | Build-in ±8g G-Sensor | |
| Software | Vehicle Analysis Software (VAS) | Video playback and information of floating vehicles analysis at PC |
| Vehicle Network Management System (VNMS) | Video preview, GPS information, alarm upload and command download via wireless network | |
Richmor 3G GPS SD Vehicle CCTV DVR Network
- 3G Live Video
- Real Time GPS Position by Google/Baidu/Mapinfo Map
- Remote Video Playback
- History Car Driving Router Replay and tracking
- Geo Fence/Alarm Window Pop up/Millage/Oil report etc
More funciton that you can image........

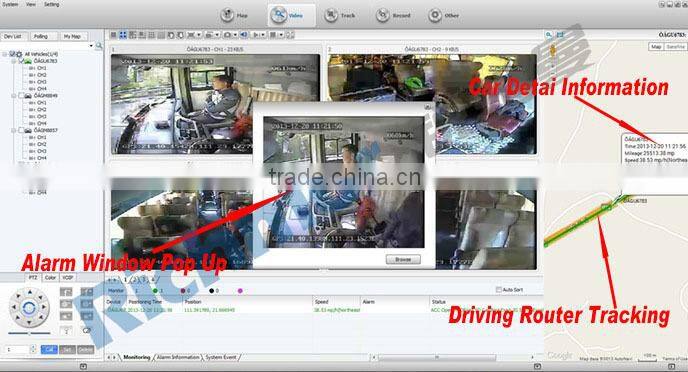

Richmor 3G GPS Vehicle CCTV DVR Powerful Software
No limited in Vehicle Quantity for fleet mangement;
Muilted Lanague: English/Chinese/Thai/Portuguese/Spanish/Russian etc

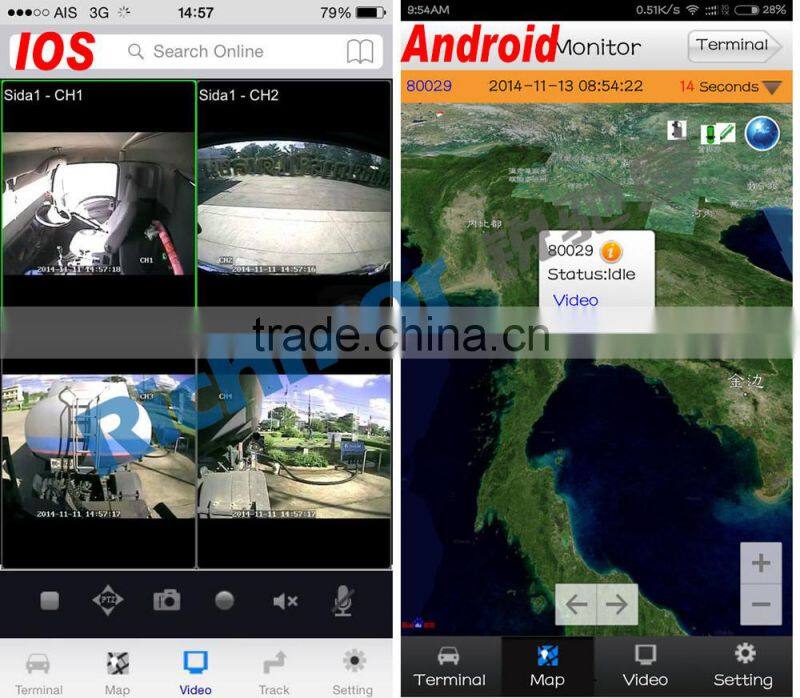

PC/Web/Iphone/Android/Ipad access for real time monitor at anytime anywhere

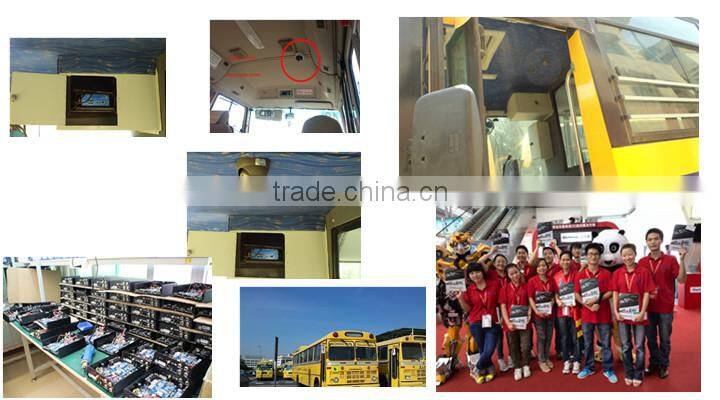

Richmor Vehicle CCTV DVR Application
Richmor Vehicle CCTV DVR Package
Vehicle CCTV DVR Certification
We offer One Stop Vehicle CCTV DVR products, for more detail,please click here
Richmor Vehicle CCTV DVR manufacturer warmly welcom your coming visit,let's see in our Bar relax area. :)
