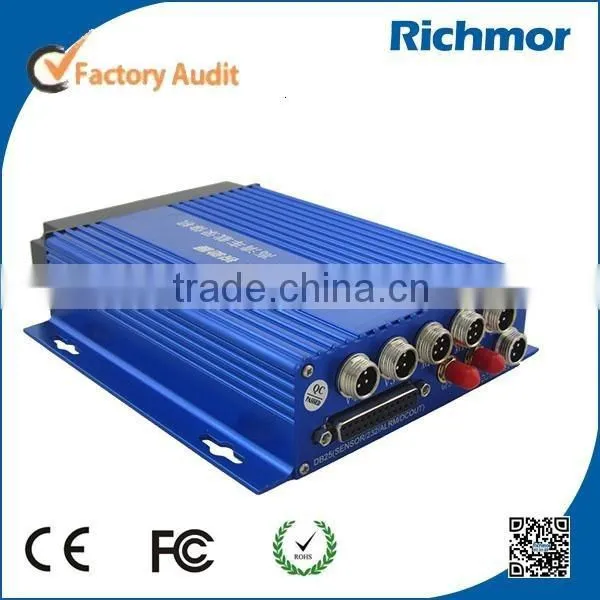

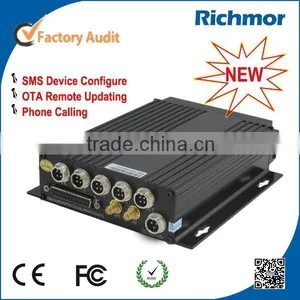

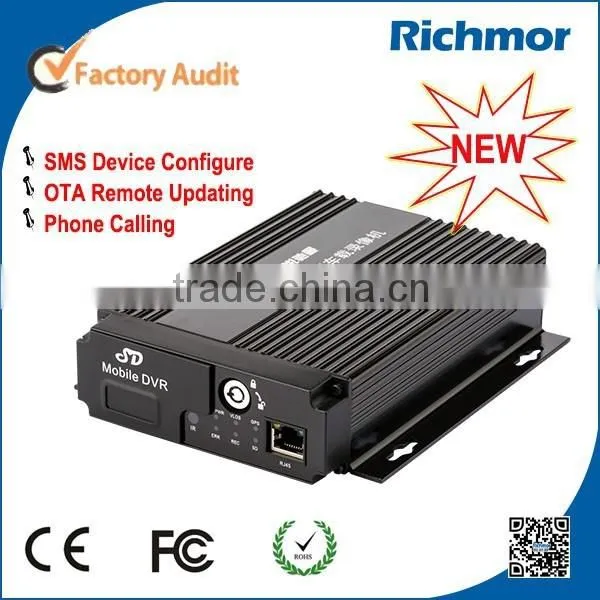

Double SD Card Bus Truck Car Mobile DVR 4ch Mobile DVR 3G/4G G-sensor GPS
RICHMOR DVR Advantages:

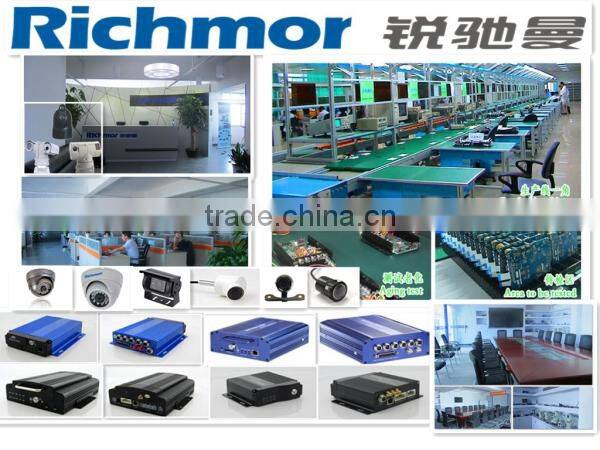

WE ARE MANUFACTURER.
1. Power failure protection.
2. Wide voltage (6-48V, Seldom other companies can achieve this function
, other companies only can achieve 8-36V).
3. OTA function support. (Upgrating DVR software automatically, better after-sales service for you, ONLY WE CAN ACHIEVE IT IN CHINA FOR NOW.)
4. A SMS can get DVR situation feedback from DVR.(ONLY WE CAN ACHIEVE IT IN CHINA FOR NOW.)
5. Industrial level design. (More professional and better quality.)
6. Modular design. (To prevent a module error while affecting the entire product.)
7. Encrypt video format. (To prevent data loss)
8. Current and voltage over protection.
9. Wide working temperature. (-25℃- +75℃).
10. Data redundancy technology. (To prevent data loss)
11. Excellent vibration protection.
Overviews:
Super Wide Voltage,Special UPS Tech,High Capacity SD Card,Many Recording Mode for Option,Support 3G GPS,All Aviation Connectors,4CH Video+2CH Audio, CIF and D1 Switched Freely,Security Key for SD Card and SIM Card, Support PTZ Controland Mobile Phone Remote Monitoring.
Car DVR for Mobile Security
3G MDVR Features
- H.264 Video Compression,G.726 Audio Code,4CH Video&2CH Audio.
- Recording Mode Can be Option CIF/HD1/D1,Frame Quality Can be Adjusted.
- Professional Power Design for Vehicle,6~48V Wide Voltage;Over-load,Over-voltage,Short Ciruit,Reverse Protection.
- All Aviation Connectors,Super Stable,High Anti-shock,Easy installation plug in and out.
- Support DC12V,DC5V Output,Can offer Power for Cameras and some Accessories.
- 128 GB SD Card Max with Data Redundary Tech,Ensuring Data Stable.
- Auto Recording,Timing Recording,Alarm(Open/Close door) Recording Mode for Different Request.
- Powerful file fragmentation removal technology and data protection features,support for abnormal restart protection function.
- Special Delay Power off circuit,Which can support the systerm continus running after vehicle power off.
- 4CH Alarm Imput,Local and Remote PTZ Control.
- Support 3G/4G,GPS, Wifi Module.
- Free software offered,Support Real-time Live videl,GPS Location,Sceenshot,Playback,Analysis,Alarm,Log Management.
- Updated through SD or OTA Remote Automatic updating ;support phone monitoring Android/IOS.
- Support phone calling function.
3G MDVR Specifications:
Item | Parameter |
A&V Input | 4 channel, aviation connector |
A&V Output | 1 channel, aviation connector |
Video compression format | H.264 |
Resolution | D1/HD1/CIF selectable. D1-the highest, CIF-the lowest |
Video Frame rate | 100 fps (PAL),120fps(NTSC),50fps(4*D1) |
Recording | Fire recording, time recording, alarm recording |
Storage | SD card |
Alarm | 1CH alarm; alarm and recording at the same time |
Vehicle recording | Recording Vehicle operation (turn left/right, stop lamp), license NO. ,route, driver |
System Protection | Saving the recording data when the power off, support hard disk upgrading |
Network | RJ45 Ethernet interface and can copy the data through Wired/Wireless networks, controlling and managing the main machine. |
PTZ control | RS232 can turn to PTZ interface |
GPS | Support GPS module expansion, recoding and playback the vehicle route |
G-SENSOR module | Support G-Sensor module expansion, recording vehicle direction state and alarm |
Battery | Wide Voltage Range. Operation voltage: 6V~48V; Recommend range: 8V-40V; instantaneous range: 6-70V. Support overvoltage protection, under-voltage protection, short-circuit protection, transposition protection, fire on/off timing,delay power-off. Output voltage is 12v . |
Powder | 2.4W |
System | Embedded full-time multitask control system, support Chinese simplified & English |
Working environment | Working temperature: -20C°to 50C°,Working humidity: <90%; storage temperature: -30C to 70C,Storage humidity<90% |
Dimensions | 180mm*145mm*45mm |
New Interface can easily operate.

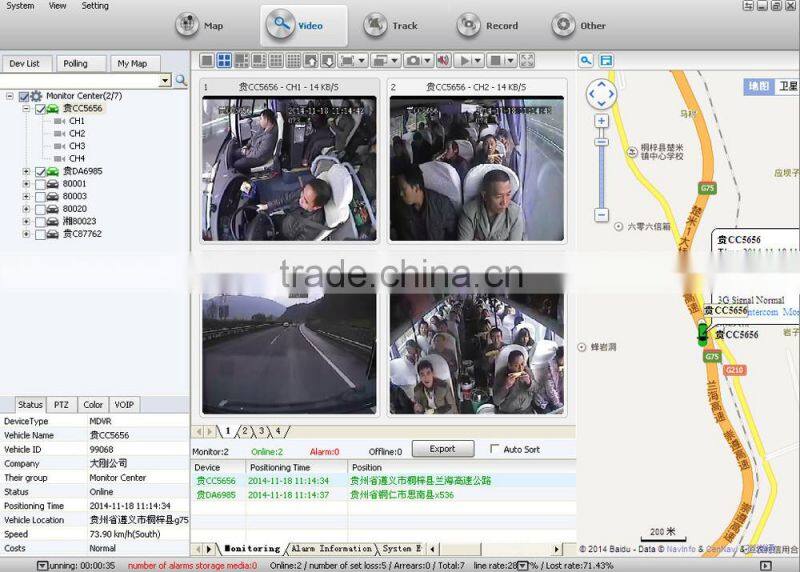

Richmor Powerful CMS Software for Realtime Monitor,Free
3G H.264 SD MDVR Standard Accessories in Package
3G MDVR Certifications
Any interest, please feel free to contact us! Skype: rcmcctvsales5
