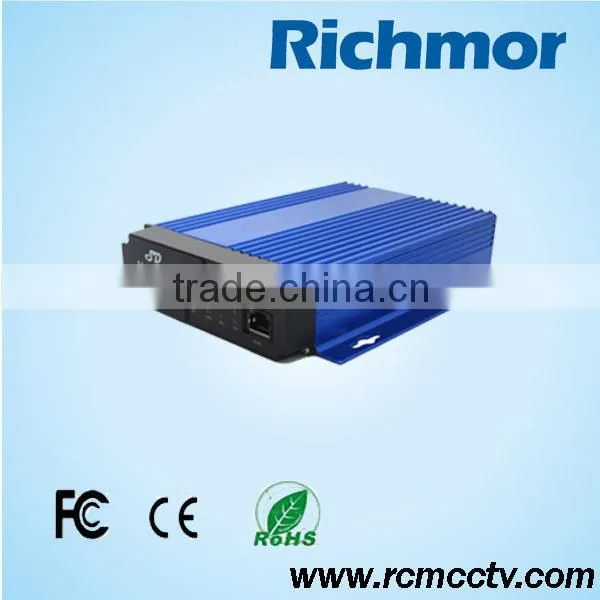

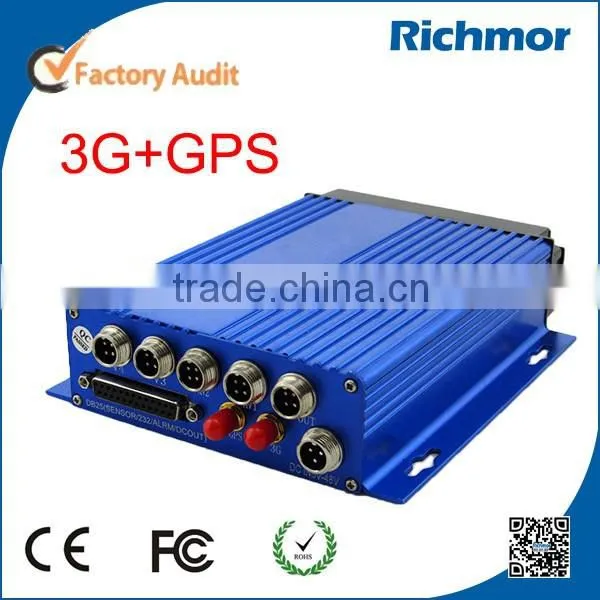

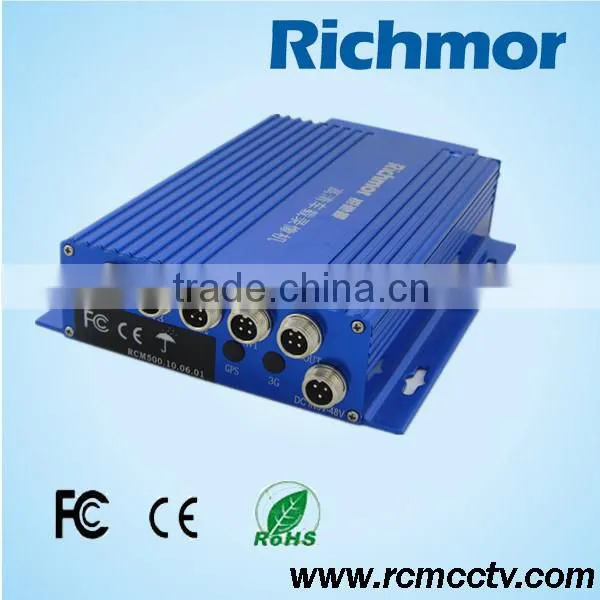

3G Car DVR 4CH Camera GPS/Alarm PTZ Control Phone Monitor/Call SMS

Item NO

Function

RCM-MDR510S

Basic Recording

RCM-MDR510SG

GPS Module

RCM-MDR510SDG

3G GPS Module

Item

Parameter

A&V Input

4 channel, aviation   connector

A&V Output

1 channel, aviation   connector

Video compression format

H.264

Resolution

D1/HD1/CIF selectable.

D1-the highest, CIF-the lowest

Video Frame rate

100 fps (PAL),120fps(NTSC),50fps(4*D1)

Recording

Fire recording, time recording, alarm recording

Storage

SD card

Alarm

1CH alarm; alarm and recording at the same time

Vehicle recording

Recording Vehicle operation (turn left/right, stop lamp), license NO. ,route, driver

System Protection

Saving   the recording data  when  the  power  off, support hard disk upgrading

Network

RJ45  Ethernet  interface  and can  copy  the  data through Wired/Wireless networks, controlling  and  managing  the  main machine.

PTZ control

RS232 can turn to PTZ interface

GPS

Support GPS module expansion, recoding and playback the vehicle route

G-SENSOR   module

Support G-Sensor module expansion, recording vehicle direction state and alarm

Battery

Wide Voltage Range. Operation voltage: 6V~48V; Recommend range: 8V-40V; instantaneous range: 6-70V. Support overvoltage protection, under-voltage  protection, short-circuit protection, transposition  protection, fire on/off timing,delay power-off. Output voltage is 12v .

Powder

2.4W

System

Embedded full-time multitask control system, support   Chinese simplified & English

Working environment

Working temperature: -20C°to 50C°,Working humidity: <90%; storage  temperature: -30C to 70C,Storage humidity<90%

Dimensions

180mm*145mm*45mm
