Bus/Car/Taxi/Ship used SD 4Ch D1 Mobile DVR h 264 dvr with Mobile Phone Monitoring
Bus/Car/Taxi/Ship used SD 4Ch D1 Mobile DVR h 264 dvr with Mobile Phone monitoring
- H.264 Video Compression,G.726 Audio Code,4CH Video&2CH Audio.
- Recording Mode Can be Option CIF/HD1/D1,Frame Quality Can be Adjusted.
- Professional Power Design for Vehicle,6~48V Wide Voltage;Over-load,Over-voltage,Short Ciruit,Reverse Protection.
- All Aviation Connectors,Super Stable,High Anti-shock,Easy installation plug in and out.
- Support DC12V,DC5V Output,Can offer Power for Cameras and some Accessories.
- 128 GB SD Card Max with Data Redundary Tech,Ensuring Data Stable.
- Auto Recording,Timing Recording,Alarm(Open/Close door) Recording Mode for Different Request.
- Powerful file fragmentation removal technology and data protection features,support for abnormal restart protection function.
- Special Delay Power off circuit,Which can support the systerm continus running after vehicle power off.
- 4CH Alarm Imput,Local and Remote PTZ Control.
- Support 3G/4G,GPS, Wifi Module.
- Free software offered,Support Real-time Live videl,GPS Location,Sceenshot,Playback,Analysis,Alarm,Log Management.
- Updated through SD or OTA Remote Automatic updating ;support phone monitoring Android/IOS.
- Support phone calling function.
Item |
Parameter |
A&V Input |
4 channel, aviation connector |
A&V Output |
1 channel, aviation connector |
Video compression format |
H.264 |
Resolution |
D1/HD1/CIF selectable. D1-the highest, CIF-the lowest |
Video Frame rate |
100 fps (PAL),120fps(NTSC),50fps(4*D1) |
Recording |
Fire recording, time recording, alarm recording |
Storage |
SD card |
Alarm |
1CH alarm; alarm and recording at the same time |
Vehicle recording |
Recording Vehicle operation (turn left/right, stop lamp), license NO. ,route, driver |
System Protection |
Saving the recording data when the power off, support hard disk upgrading |
Network |
RJ45 Ethernet interface and can copy the data through Wired/Wireless networks, controlling and managing the main machine. |
PTZ control |
RS232 can turn to PTZ interface |
GPS |
Support GPS module expansion, recoding and playback the vehicle route |
G-SENSOR module |
Support G-Sensor module expansion, recording vehicle direction state and alarm |
Battery |
Wide Voltage Range. Operation voltage: 6V~48V; Recommend range: 8V-40V; instantaneous range: 6-70V. Support overvoltage protection, under-voltage protection, short-circuit protection, transposition protection, fire on/off timing,delay power-off. Output voltage is 12v . |
Powder |
2.4W |
System |
Embedded full-time multitask control system, support Chinese simplified & English |
Working environment |
Working temperature: -20C°to 50C°,Working humidity: <90%; storage temperature: -30C to 70C,Storage humidity<90% |
Dimensions |
180mm*145mm*45mm |
Why choose Richmor MDVR?
- Economical Commercial Design;
- 6-48V Wide Voltage,only we do in China;
- High Resolution,South Africa School Bus Project win Dahua DVR;
- 5 level shockproof protection to protect HDD from shock;
- SD Card/SIM Card all be locked for data safety
- Powerful Software for realtime checking,Android/IOS Mobile Phone Remote Monitor
- Developer team for OEM/ODM Service
1.SMS Device Configure
Only one SMS to get device information and change ID/Serve IP etc, no matter when car if online or offline.
2.Support OTA Auto Remote Updating
3.Support Phone Calling
The device can be as a telephone, using a speaker, which can call anyone.
4.Smart Digital GUI Interface
Solving the traditional MDVR setting issue, customer no longer to find where go to setting. The New one can view clearly and operate easily.

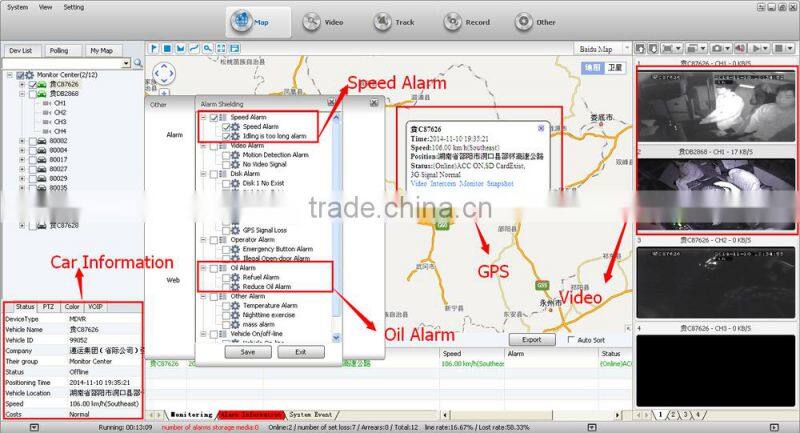

Richmor Powerful CMS Software for Realtime Monitor,Free
3G MDVR Standard Accessories in Package
3G MDVR Certifications
