DVR H 264, Support Dual SD Card Memery, Support OTA Phone Calling
3G MDVR Features:
- H.264 Video Compression,G.726 Audio Code,4CH Video&2CH Audio.
- Recording Mode Can be Option CIF/HD1/D1,Frame Quality Can be Adjusted.
- Professional Power Design for Vehicle,6~48V Wide Voltage;Over-load,Over-voltage,Short Ciruit,Reverse Protection. DVR H 264, Support Dual SD Card Memery, Support OTA Phone Calling
- All Aviation Connectors,Super Stable,High Anti-shock,Easy installation plug in and out.
- Support DC12V,DC5V Output,Can offer Power for Cameras and some Accessories.
- 128 GB SD Card Max with Data Redundary Tech,Ensuring Data Stable.
- Auto Recording,Timing Recording,Alarm(Open/Close door) Recording Mode for Different Request.
- Powerful file fragmentation removal technology and data protection features,support for abnormal restart protection function.
- Special Delay Power off circuit,Which can support the systerm continus running after vehicle power off.
- 4CH Alarm Imput,Local and Remote PTZ Control.
- Support 3G/4G,GPS, Wifi Module.
- Free software offered,Support Real-time Live videl,GPS Location,Sceenshot,Playback,Analysis,Alarm,Log Management.
- Updated through SD or OTA Remote Automatic updating ;support phone monitoring Android/IOS.
- Support phone calling function.
3G MDVR Specifications:
Item |
Parameter |
A&V Input |
4 channel, aviation connector |
A&V Output |
1 channel, aviation connector |
Video compression format |
H.264 |
Resolution |
D1/HD1/CIF selectable. D1-the highest, CIF-the lowest |
Video Frame rate |
100 fps (PAL),120fps(NTSC),50fps(4*D1) |
Recording |
Fire recording, time recording, alarm recording |
Storage |
SD card |
Alarm |
1CH alarm; alarm and recording at the same time |
Vehicle recording |
Recording Vehicle operation (turn left/right, stop lamp), license NO. ,route, driver |
System Protection |
Saving the recording data when the power off, support hard disk upgrading |
Network |
RJ45 Ethernet interface and can copy the data through Wired/Wireless networks, controlling and managing the main machine. |
PTZ control |
RS232 can turn to PTZ interface |
GPS |
Support GPS module expansion, recoding and playback the vehicle route |
G-SENSOR module |
Support G-Sensor module expansion, recording vehicle direction state and alarm |
Battery |
Wide Voltage Range. Operation voltage: 6V~48V; Recommend range: 8V-40V; instantaneous range: 6-70V. Support overvoltage protection, under-voltage protection, short-circuit protection, transposition protection, fire on/off timing,delay power-off. Output voltage is 12v . |
Powder |
2.4W |
System |
Embedded full-time multitask control system, support Chinese simplified & English |
Working environment |
Working temperature: -20C°to 50C°,Working humidity: <90%; storage temperature: -30C to 70C,Storage humidity<90% |

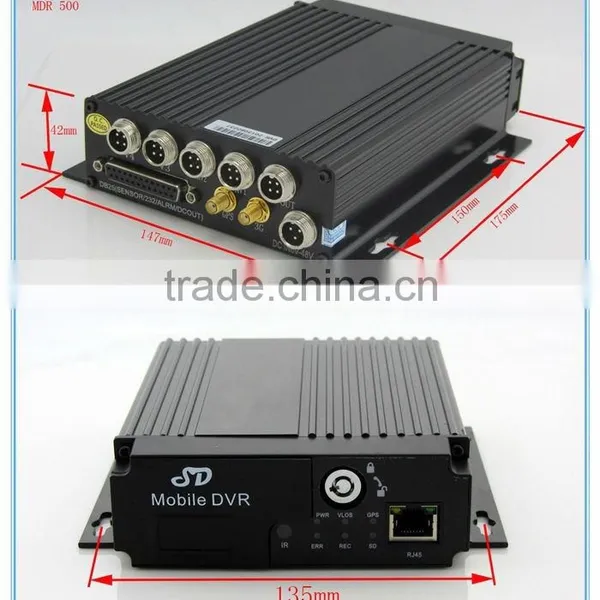

Dimensions |
180mm*145mm*45mm |
Why choose Richmor MDVR?
- Economical Commercial Design;
- 6-48V Wide Voltage,only we do in China;
- High Resolution.
- 5 level shockproof protection to protect HDD from shock;
- SD Card/SIM Card all be locked for data safety
- Powerful Software for realtime checking,Android/IOS Mobile Phone Remote Monitoring.
- Developer team for OEM/ODM Service.
- Efficient after-sales service.
New Interface can easily operate.

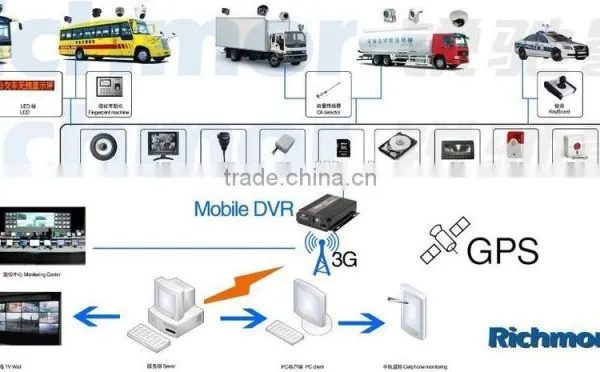

Richmor Powerful CMS Software for Realtime Monitor,Free
Application

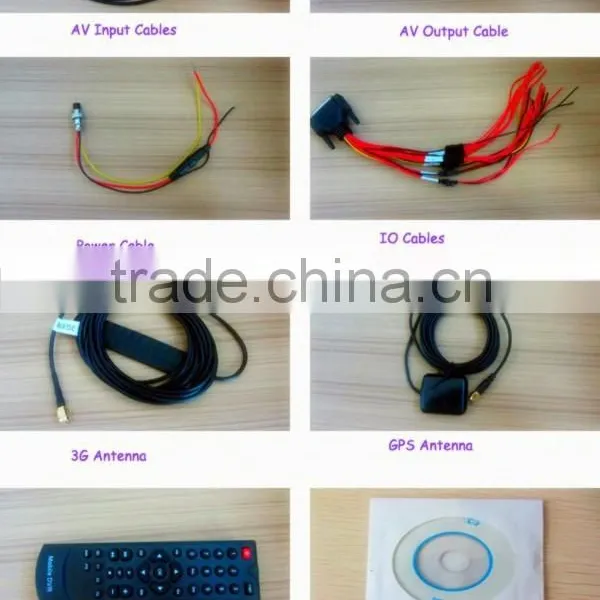

Standard Accessories in Package
Packaging
1 unit with all standard accessories such as AV Cables/IO Cable/Power Cable/Key etc
Outer box with Netural packing or Richmor Brand,also welcome customized package
Shipping
Strong cooperated with DHL/UPS Etc for fast and safety delivery. Small order can be dispatched in 3-5 working days once check the payment
Payment
Service
1.Well Trained Sales team and engineers for fast and professional supoprt
2.OEM/ODM Service
Any interest, welcome to contact us! Skype: rcmcctvsales5
