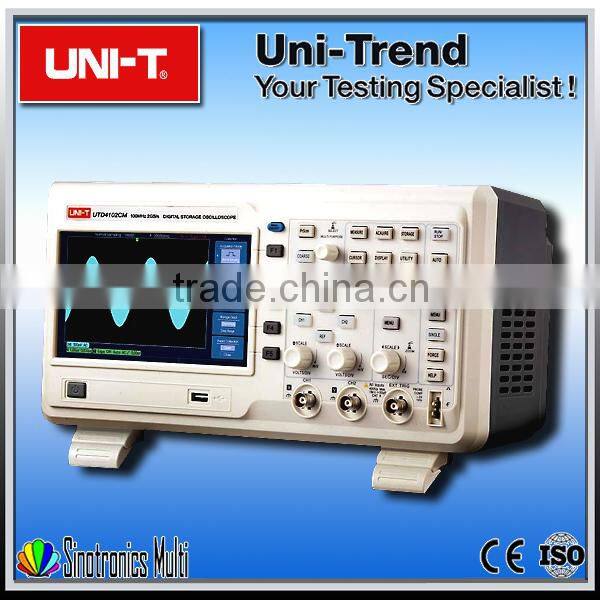

Best Digital Double channel Oscilloscopes UNI-T UTD4102CM
- 5000 Piece / Pieces per Month
- shanghai ningbo
Product Details
Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | UTD4102CM |
Product Description
1,150,000 wfms/s Waveform Acquisition Rate;
2,16Mpts Memory Depth;
3,800×480,7 inches widescreen LCD displays;
4,Special Print Scree Feature;
5,Edge, Video, Pulse Slop and Alternate trigger functions;
6,24 automatic +2 advanced measurements;
7,Unique waveform recording and replay function;
8,Supports plug-and-play USB storage device. Communication with and remote control of computer through theUSB device;
9,6 digital Trigger frequency counter.
Specification | UTD4102CM |
Channels | 2 |
Bandwidth | 100MHz |
Sample Rate | 2GS/s |
Rise Time | ≤3.5ns |
Memory Depth | 24Mpts(Each Channel) |
Waveform Acquisition Rate | ≥150,000wfms/s |
Vertical Sensitivity | 2mV/div~5V/div |
Timebase Range | 2ns/div~50s/div |
Storage | Setup, Wave, Bitmap, CSV |
Trigger Modes | Edge, Pluse, Video, Slope, Alternate |
Interface | USB Device, USB Host, Pass/Fail |
General Characteristic | |
Power | 100-240VAC, 45-440Hz |
Display | 7 Inches 64K Color TFT LCD, 800×480 |
Product Color | White and Gray |
Product Net Weight | 3.8 Kg |
Product Size (W×H×D) | 330mm × 165mm × 165mm |
Standard Accessories | Probe×2(1×,10× switchable),Power Cord ,USB Cable,PC Software CD |
Standard Individual Packing | Gift Box, English Manual |
Standard Quantity Per Carton | 2 PCs |
Standard Carton Measurement(L×W×H) | 540mm × 425mm × 325mm |
Standard Carton Cross Weight | 13.7 Kg |
Optional Accessories* | |
LAN Port, LA Module (UT-M09) |
