Home > Products > Digital Oscilloscopes > Best Four channel Digital Oscilloscopes UTD4104C

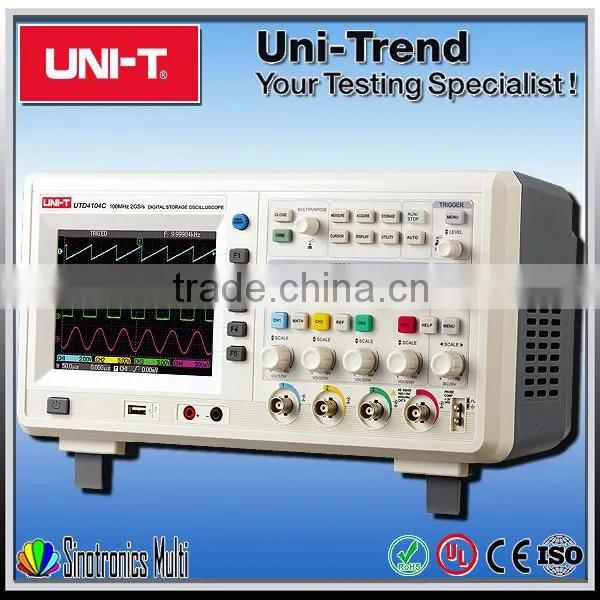

Best Four channel Digital Oscilloscopes UTD4104C
- 5000 Piece / Pieces per Month
- shanghai ningbo
Product Details
Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | UTD4104C |
Product Description
1,analog channels and 2GS/s real-time sampling rate;
2,Dual time base function; unrivaled waveform detail observation and analysis capabilities;
3,3½ digital multimeter;
4,Supports plug-and-play USB storage devices and capable of communicating with a computer;
5,USB drive system software upgrade;
6,Built-in FFT and Multiple waveform mathematics functions (including add, subtract, multiply and divide);
7,Edge, Video, Pulse Slop and Alternate trigger functions.
Specification | UTD4104C | |
Channels | 4 | |
Bandwidth | 100MHz | |
Sample Rate | 2GS/s | |
Rise Time | ≤3.5ns | |
Memory Depth | 24kpts | |
Vertical Sensitivity | 2mV/div~5V/div | |
Timebase Range | 5ns/div~50s/div | |
Storage | Setup, Wave, Bitmap, CSV | |
Trigger Modes | Edge, Pluse, Video, Slope, Alternate | |
Interface | USB Device, USB Host, Multimeter Interface | |
Multimeter Specifications | Range | Best Accuracy |
DC Voltage (V) | 400mV, 4V, 40V, 400V | ± (1% + 5) |
AC Voltage (V) | 4V, 40V, 400V | ± (1.2% + 5) |
DC Current (A) | 4mA,40mA,400mA, 4A | ± ( 1% + 5) |
(External Convertor) | 4A: ± ( 1.5% + 5) | |
Resistance (Ω) | 400Ω, 4kΩ , 40kΩ ,400kΩ , 4MΩ , 40MΩ | ± (1.5% + 5) |
Display Count | 4000 | |
Auto Range | √ | |
General Characteristic | ||
Power | 100-240VAC, 45-440Hz | |
Display | 5.7 Inches 64K Color TFT LCD, 320×240 | |
Product Color | White and Gray | |
Product Net Weight | 3.8 Kg | |
Product Size (W×H×D) | 337mm(W) × 190mm(H) × 180mm(D) | |
Standard Accessories | Probe×4 (1×,10× switchable), Current-to-Voltage Convertor , Test Leads, Power Cord, USB Cable, PC Software CD | |
Standard Individual Packing | Gift Box, English Manual | |
Standard Quantity Per Carton | 2 PCs | |
Standard Carton Measurement (L×W×H) | 540mm(L) × 425mm(W) × 325mm(H) | |
Standard Carton Cross Weight | 13.7 Kg |
We do not have MOQ, but we have MOV (Min order value) which is USD5000. If your order quantity is big enough, we will give you some discount.
