Home > Products > Digital Oscilloscopes > Best Digital Oscilloscopes UNI-T UTD2102CEX Quality Choice Most Popular

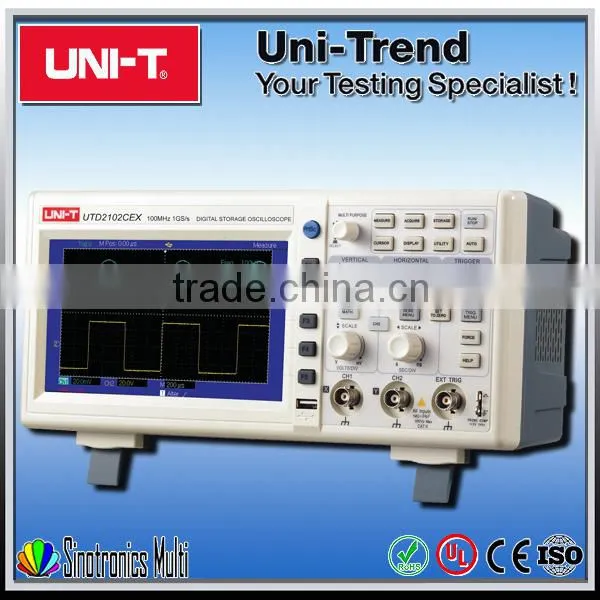

Best Digital Oscilloscopes UNI-T UTD2102CEX Quality Choice Most Popular
- 5000 Piece / Pieces per Month
- shanghai ningbo
Product Details
Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | UTD2102CEX |
Product Description
1,Dual analog channels width range 1mV/div~20V/div;
2,7 inches widescreen LCD displays;
3,The new interface style;
4,Supports plug-and-play USB storage device. Communication with and remote control of computer through the USB device;
5,USB drive system software upgrade;
6,Storage of waveforms setups and interfaces waveforms and setups reproduction;
7,Automatic measurement of 32 waveform parameters;
8,Unique waveform recording and replay function;
9,Multilingual menu displays.
Specification | UTD2102CEX | ||
Channels | 2 | ||
Bandwidth | 100MHz | ||
Sample Rate | 1Gs/s | ||
Rise Time | ≤3.5ns | ||
Memory Depth | 25kpts | ||
Waveform Acquisition Rate | ≥2000wfms/s | ||
Vertical Sensitivity(V/div) | 1mV/div~20V/div | ||
Timebase Range(s/div) | 2ns/div~50s/div | ||
Storage | Setup,Wave,Bitmap | ||
Trigger Modes | Edge, Pluse, Video,Slope,Alternate | ||
Interface | USB OTG | ||
General Characteristic | |||
Power | 100-240VAC, 45-440Hz | ||
Display | 7 Inches 64K Color TFT LCD, 800×480 | ||
Product Color | White and Gray | ||
Product Net Weight | 2.2 Kg | ||
Product Size (W×H×D) | 306mm ×147mm × 122mm | ||

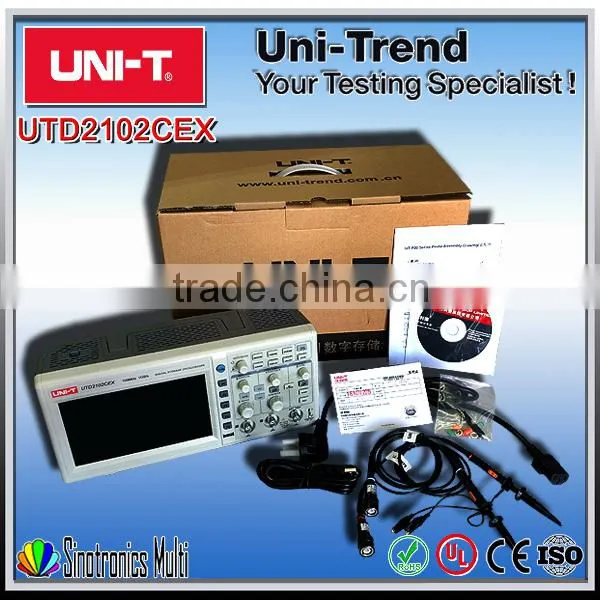

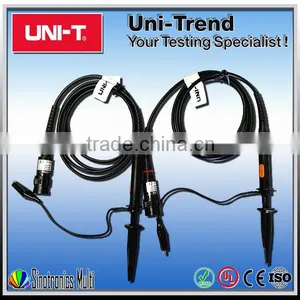

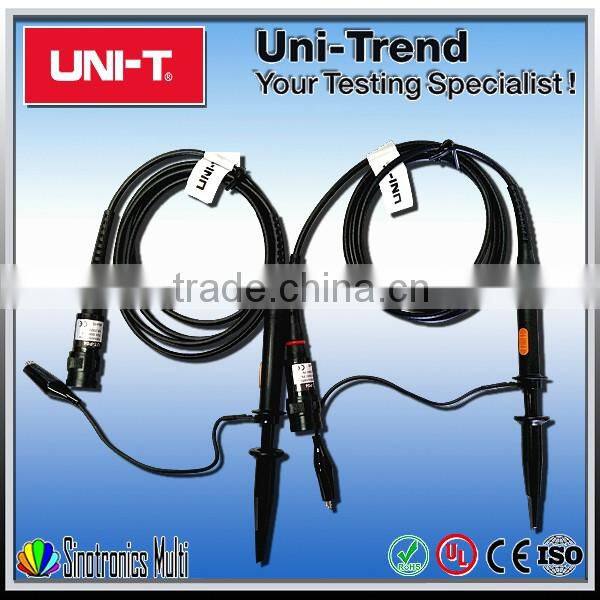

Standard Accessories | Probe×2 (1×,10× switchable), Power Cord , USB Cable, PC Software CD | ||
Standard Individual Packing | Gift Box, English Manual | ||
Standard Quantity Per Carton | 2 PCs | ||
Standard Carton Measurement (L×W×H) | 450mm× 420mm × 280mm | ||
Standard Carton Cross Weight | 8.5 Kg | ||
Optional Accessories* | |||
LA Module |
We do not have MOQ, but we have MOV (Min order value) which is USD5000. If your order quantity is big enough, we will give you some discount.
