Home > Instruments & Meters > Meter for Electricity > Multimeter > Best Digital Multimeter UNI-T UT109

Best Digital Multimeter UNI-T UT109

Name: Best Digital Multimeter UNI-T UT109
Brand: UNI-T
SKU: 107485085

Best Digital Multimeter UNI-T UT109 thumbnail-1

Best Digital Multimeter UNI-T UT109 thumbnail-2

Best Digital Multimeter UNI-T UT109 thumbnail-3

Best Digital Multimeter UNI-T UT109 photo-1

Best Digital Multimeter UNI-T UT109 photo-2

Best Digital Multimeter UNI-T UT109 photo-3

US$ 36.8 - 38.6 MOQ: 20 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT109

Contact Supplier Request Quote Chat Now

Sinotronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT109

Measuring Current Range 400μA/4000μA/40mA/400mA/4A/10A

Measuring Voltage Range 40mV/400mV/4V/40V/400V/1000V

Measuring Resistance Range 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ

Measuring Capacitance Range 10nF/100nF/1000nF/10μF/100μF

Measuring Inductance Range none

Operating Temperature 0~40℃

Dimensions 130*73.5*35mm

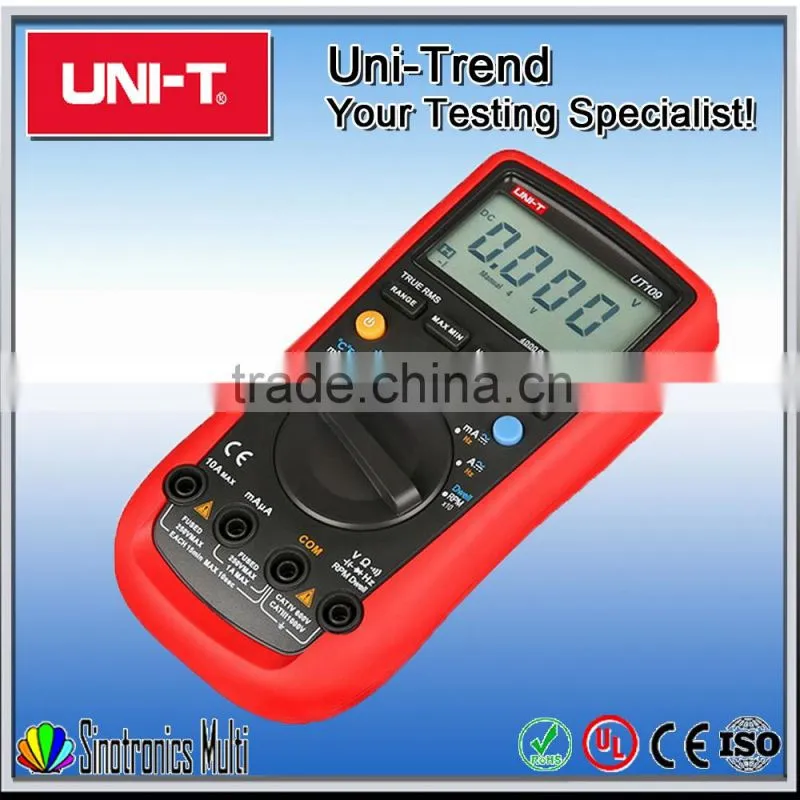

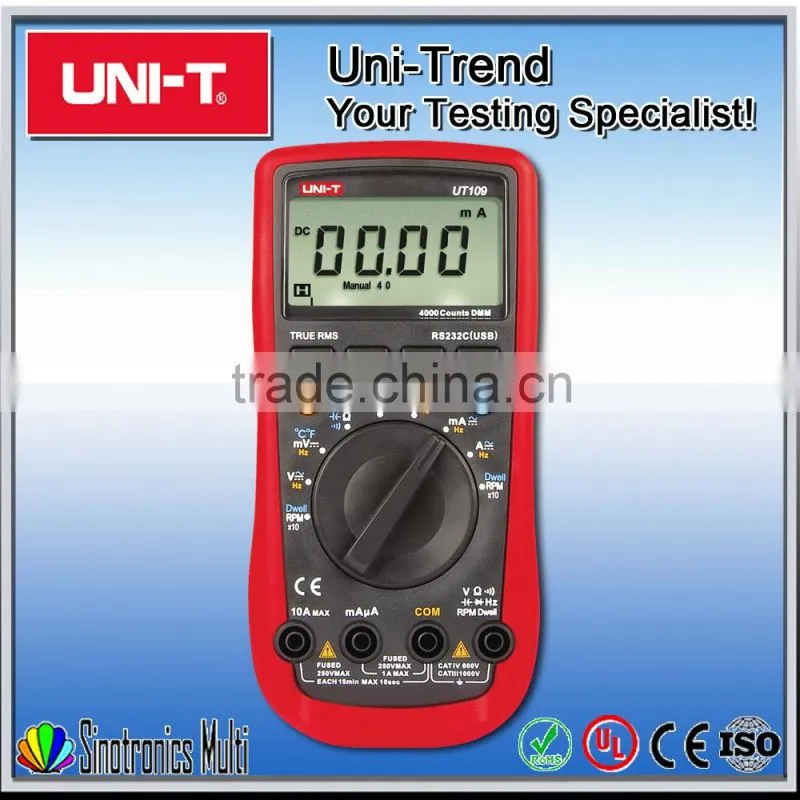

best digital multimeter UNI-T UT109

Product image

Product Description

UT106, UT107 is a digital instrument manual range car 1999 count multimeter set car speed and closed angle measurement, multimeter in the integration of the whole function of multimeter. With a large screen, the input connection prompts, overload protection and unique appearance design, make better performance using electrical instruments more secure.
This instrument can be used to measure the automobile manufacturing and automobile maintenance inspection.

Product parameters

Specifications	Range	Best Accuracy
Model			UT109
DC Voltage (V)	40mV/400mV/4V/40V/400V/1000V		±(0.5%+3)
AC Voltage (V)	4V/40V/400V/1000V		±(1%+3)
DC Current (A)	400μA/4000μA/40mA/400mA/4A/10A		±(1%+2)
AC Current (A)	400μA/4000μA/40mA/400mA/4A/10A		±(1.2%+5)
Resistance (Ω)	400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ		±(1%+5)
Capacitance (F)	10nF/100nF/1000nF/10μF/100μF		±(3%+5)
Frequency (Hz)	10Hz ~ 1MHz		±(0.1%+4)
Temperature (°C)	-40°C ~ 537°C		±(1%+10)
Temperature (°F)	-40°F~998°F		±(1%+18)
Features
Display Count			4000
Auto Range			√
Diode			√
Auto Power Off			√
Continuity Buzzer			√
Low Battery Indication			√
Data Hold			√
MAX/MIN			√
RS-232			√
USB Interface			√
LCD Backlight			√
Input Protection			√
Input Impedance for DCV	Around 10MΩ		√
Dwell	4CYL/6CYL/8CYL		±(3%+5)
Tach	4CYL/6CYL/8CYL		±(3%+5)
General Characteristic
Power	9V Battery(6F22)
LCD Size	65mm x 43mm
Product Color	Red and Grey
Product Net Weight	370g
Product Size	180mm x 87mm x 47mm
Standard Accessories
Standard Accessories	UT109-Battery, Test Lead,Alligator Clip, RS-232 Interface Cable,PC Software CD,Point Contact Temperature Probe,Multi-Purpose Socket

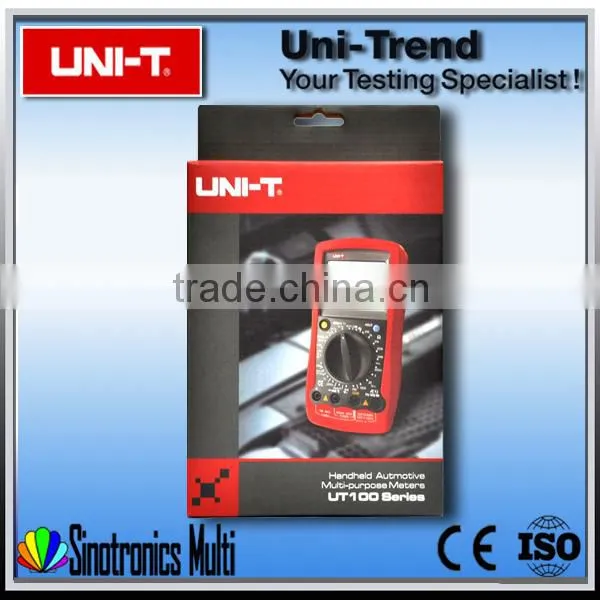

Standard Individual Packing	Gift Box, English Manual
Standard Quantity Per Carton	20 PCs
Standard Carton Measurement	465mm x 335mm x 365mm (0.057 CBM Per Standard Carton)
Standard Carton Gross Weight	15 .5kg
Optional Accessories	USB Interface Cable
