Best Digital Multimeter UNI-T UT53

Name: Best Digital Multimeter UNI-T UT53
Brand: UNI-T
SKU: 107485205
Availability: InStock

US$ 14.4 - 15.1 MOQ: 20 Pieces

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

UNI-T

Model Number:

UT33B

Sinotronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name UNI-T

Model Number UT33B

Measuring Current Range 2mA/20mA/200mA/20A

Measuring Voltage Range 200mV/2V/20V/200V/1000V

Measuring Resistance Range 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ

Measuring Capacitance Range 2nF/20nF/200nF/2μF/20μF

Measuring Inductance Range none

Operating Temperature 0~40℃

Dimensions 190mm*88mm*34mm

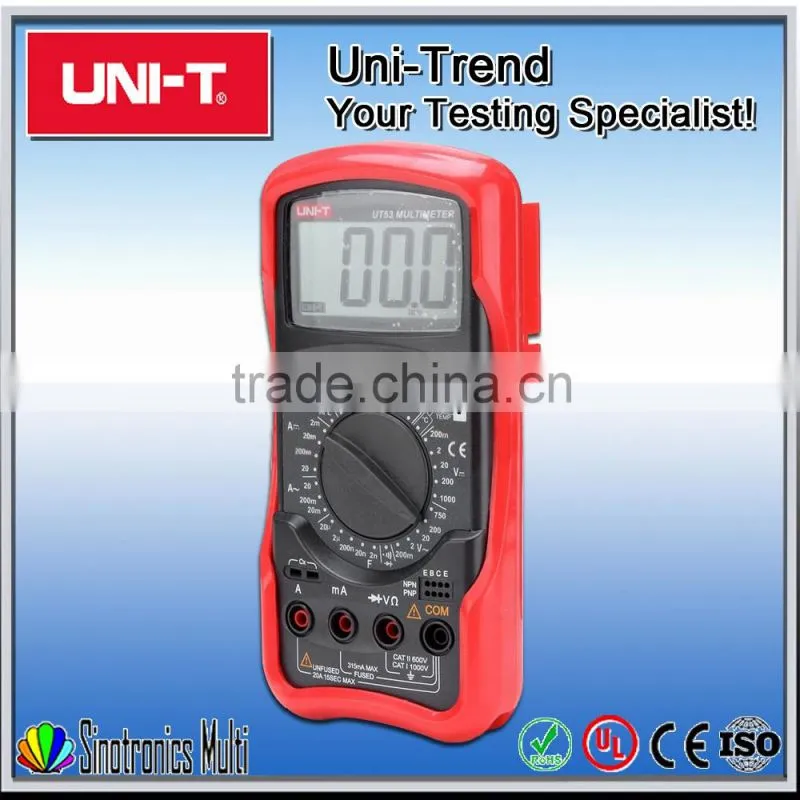

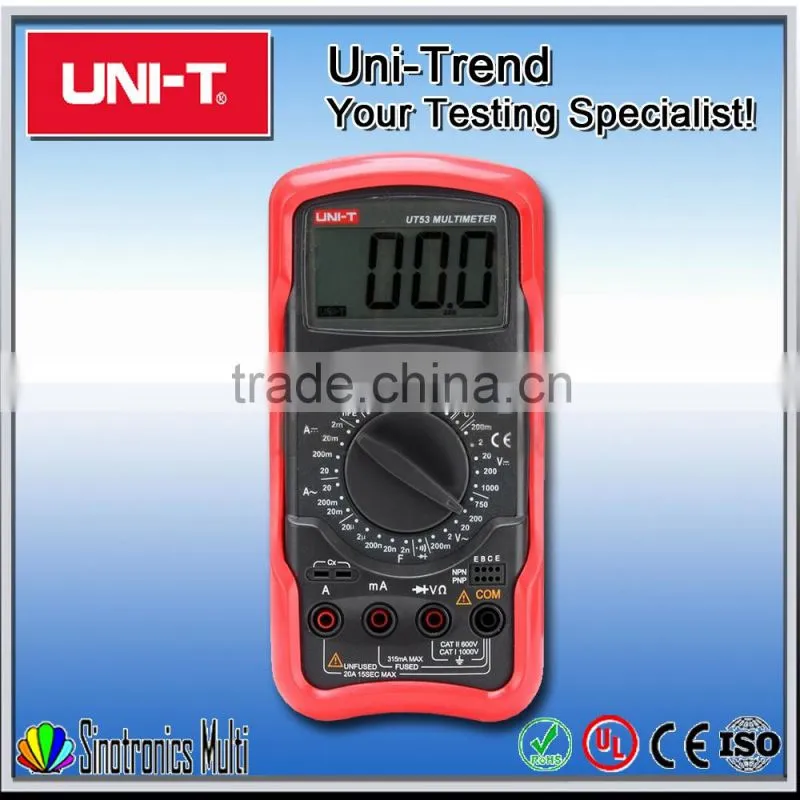

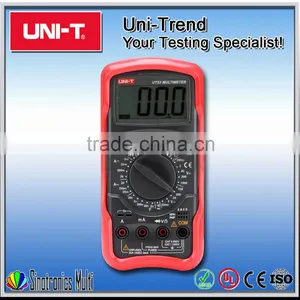

best digital multimeter UNI-T UT53

Product Overviews

Product image

Product parameters

Model		UT53
DC Voltage (V)	200mV/2V/20V/200V/1000V	±(0.5%+1)
AC Voltage (V)	200mV/2V/20V/200V/750V	±(0.8%+3)
DC Current (A)	2mA/20mA/200mA/20A	±(0.8%+1)
AC Current (A)	2mA/20mA/200mA/20A	±(1%+3)
Resistance (Ω)	200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ	±(0.8%+1)
Capacitance (F)	2nF/20nF/200nF/2μF/20μF	±(4%+3)
Temperature (°C)	-1040	±(1%+3)
Features
Transistor		√
Diode		√
Continuity Buzzer		√
Sleep Mode		√
Low Battery Display		√
Input Impedance for DC Voltage Measurement	10MΩ	√
Max. Display	1999	√
General Characteristic
Power	9V Battery (6F22)
LCD Size	65mm×33mm
Product Colour	Red and Grey
Product Net Weight	560g (including holster)
Product Size	190mm×88mm×34mm

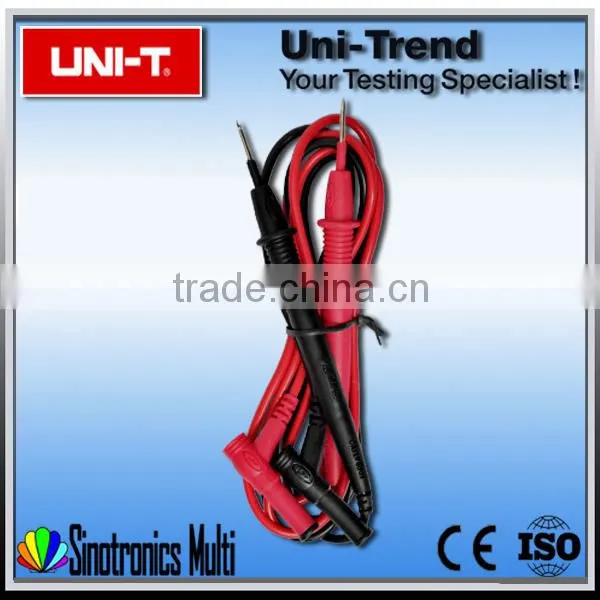

Standard Accessories	Test Lead, Batteryl, Holster
Standard Individual Packing	Gift Box,English Manual
Standard Quantity Per Carton	20 Pcs
Standard Carton Measurement	535mm×362mm×385mm
Standard Carton Gross Weight	20.5 Kg
Optional Accessories*	Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2)
