Home > Instruments & Meters > Meter for Electricity > Multimeter > Best Digital Multimeter UNI-T UT136B

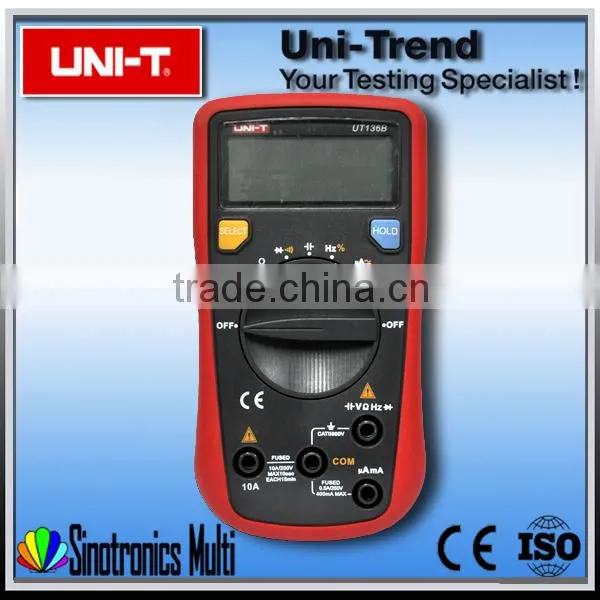

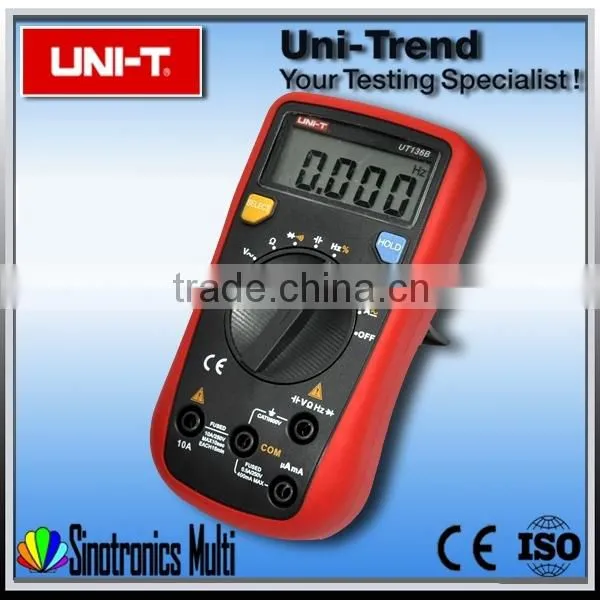

Best Digital Multimeter UNI-T UT136B

Name: Best Digital Multimeter UNI-T UT136B
Brand: uni-t
SKU: 107485161
Availability: InStock

Best Digital Multimeter UNI-T UT136B thumbnail-1

Best Digital Multimeter UNI-T UT136B thumbnail-2

Best Digital Multimeter UNI-T UT136B thumbnail-3

Best Digital Multimeter UNI-T UT136B thumbnail-4

Best Digital Multimeter UNI-T UT136B thumbnail-5

Best Digital Multimeter UNI-T UT136B photo-1

Best Digital Multimeter UNI-T UT136B photo-2

Best Digital Multimeter UNI-T UT136B photo-3

Best Digital Multimeter UNI-T UT136B photo-4

Best Digital Multimeter UNI-T UT136B photo-5

US$ 8.9 - 10 MOQ: 60 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

uni-t

Model Number:

UT136B

Contact Supplier Request Quote Chat Now

Sinotronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name uni-t

Model Number UT136B

Measuring Current Range 400uA/4mA/40mA/400mA/4A/10A

Measuring Voltage Range 400mV/4V/40V/400V/500V

Measuring Resistance Range 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ

Measuring Capacitance Range 4nF/40nF/400nF/4uF/40uF/100uF

Measuring Inductance Range none

Operating Temperature 0-40

Dimensions 72mm*137mm*35mm

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product image

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product data

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

UT136 series are mini handheld auto-ranging digital multimeters that offer users complete functions, stable performance, low power consumption, novel structural design, high degree of safety and reliability, and therefore become an ideal portable tool for maintenance and repairing.
Applicable fields are homes, schools, metallurgy, communications, manufacturing, national defense, electric power, chemical industry, ect, and the series is a best choice for electric circuit/equipment maintenance and repairing.

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Product attribute

---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Specifications	Range	Best Accuracy
Model		UT136B
DC Voltage	400mV/4V/40V/400V/500V	±(0.8%+1)
AC Voltage	400mV/4V/40V/400V/500V	±(1.2%+3)
DC Current	400uA/4mA/40mA/400mA/4A/10A	±(1.0%+2)
AC Current	400uA/4mA/40mA/400mA/4A/10A	±(1.2%+5)
Resistance	400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ	±(1.0%+2)
Capacitance	4nF/40nF/400nF/4uF/40uF/100uF	±(4.0%+3)
Frequency	10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz	±(0.5%+3)
Duty Cycle	0.1%~99.9%	√
Features
Diode		√
Continuity Buzzer		√
Auto Power Off		√
Low Battery Display		√
Input Impedance for Voltage Measurement	≥10MΩ	√
Data Hold		√
Max. Display		3999
General Characteristic
Power	9VBattery(6F22)
LCD Size	49mm×18mm
Product Color	Red +Grey
Product Net Weight	About 200g (Battery included)
Product Size	72mm×137mm×35mm

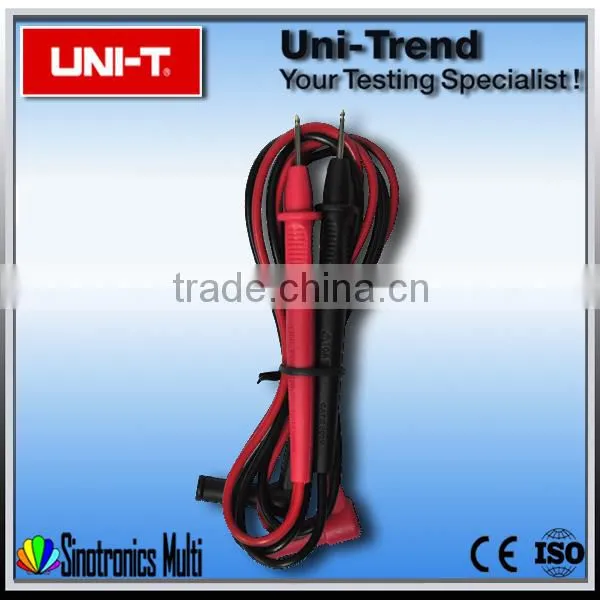

Standard Accessories	Test leads, Battery

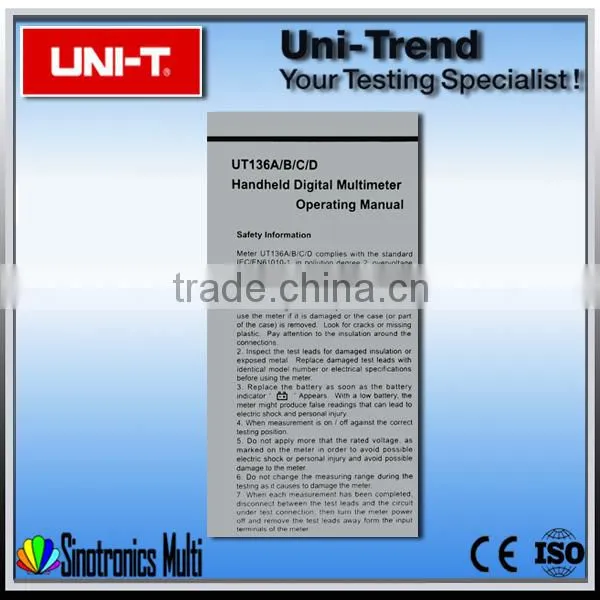

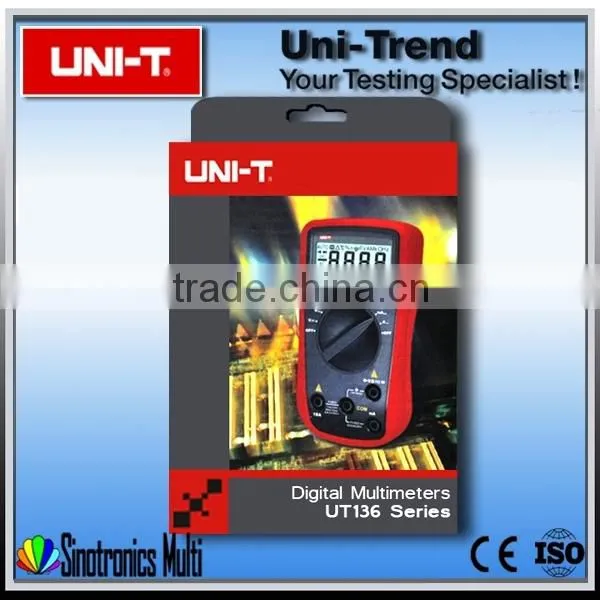

Standard Packing	Giftbox, English Manual
Standard Quantity Per Carton	66 Pcs
Standard Carton Measurement	595mm×310mm×350mm
Standard Carton Gross Weight	About 22 Kg

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
