Product Details
| Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | UT61A |
| Measuring Current Range: | 400μA/4000μA/40mA/400mA/4A/10A | Measuring Voltage Range: | 400mV/4V/40V/400V/1000V | Measuring Resistance Range: | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ |
| Measuring Capacitance Range: | 40nF/400nF/4μF/40μF/400μF/4000μF | Operating Temperature: | Normal atmospheric temperature | Dimensions: | 180mm * 87mm * 47 mm |
Product Description
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

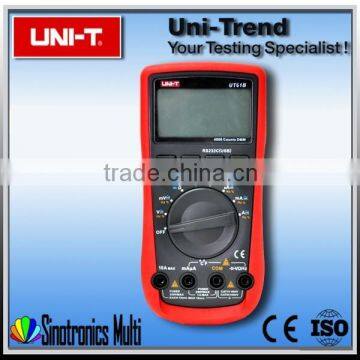

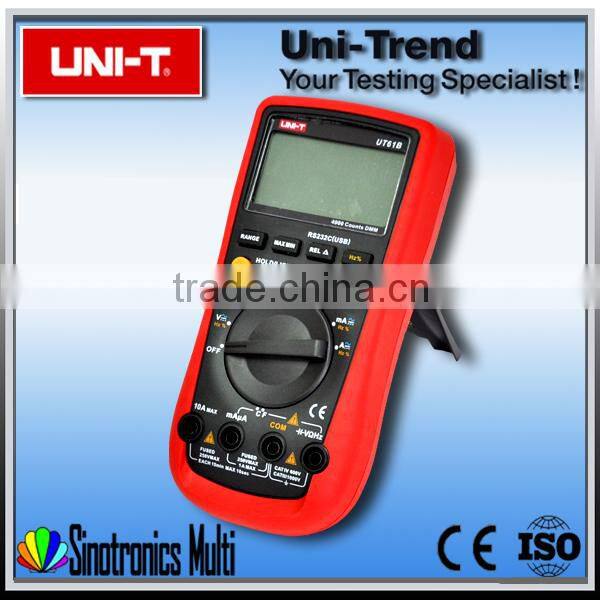

UT61 Series Digital Multimeters are products designed for multi-functional, high precision, high performance and automatic measurements.
- 1,Large LCD screen;
- 2,High resolution analog pointer display;
- 3,Full range overload protection;
- 4,Data hold, REL, Peak value measurement;
- 5,Low battery indication, backlight, and sleep mode;
- 6,External interface supports RS-232C and USB cable.UT61Series can measure AC/DC voltage and current, resistance, diode, circuit continuity, capacitance, frequency, temperature, hFE, electromagnetic induction, etc.
UT61 Series complies with the standard IEC61010: CAT. III 1000V, CAT.IV 600V; they are widely used in Industrial Production and Service, Technological Research and Design, College Education (Laboratory, Courses), and Automotive Industry.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Specifications | Range | Best Accuracy | |
| Model | UT61A | UT61B | |
| DC Voltage (V) | 400mV/4V/40V/400V/1000V | ±(0.5%+1) | |
| 40mV/400mV/4V/40V/400V/1000V | ±(0.5%+1) | ||
| AC Voltage (V) | 400mV/4V/40V/400V/750V | ±(1%+3) | |
| 40mV/400mV/4V/40V/400V/750V | ±(1%+3) | ||
| DC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1%+2) | ±(1%+2) |
| AC Current (A) | 400μA/4000μA/40mA/400mA/4A/10A | ±(1.2%+5) | ±(1.2%+5) |
| Resistance (Ω) | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 40nF/400nF/4μF/40μF/400μF/4000μF | ±(3%+5) | ±(3%+5) |
| Frequency (Hz) | 10Hz-10MHz | ±(0.1%+4) | ±(0.1%+4) |
| Temperature (°C) | -40 °C ~ 1000°C | ±(1.2%+3) | |
| Temperature (°F) | -40°F~1832°F | ±(1.2%+4) | |
| Features | |||
| Display Count | 4000 | 4000 | |
| Auto Range | √ | √ | |
| Manual Range | √ | √ | |
| Bandwidth (Hz) | 45Hz ~400Hz | √ | √ |
| Duty Cycle | 0.1% ~ 99.9% | √ | √ |
| Diode | √ | √ | |
| Transistor | √ | ||
| NCV Function | √ | ||
| Auto Power Off | Around 15 Minutes | √ | √ |
| Continuity Buzzer | √ | √ | |
| Low Battery Indication | ≤7.5V | √ | √ |
| Data Hold | √ | √ | |
| Relative Mode | √ | √ | |
| MAX/MIN | √ | √ | |
| RS-232 | √ | ||
| LCD Backlight | √ | √ | |
| Analogue Bar Graph | 41 | 41 | |
| Input Protection | √ | √ | |
| Input Impedance for DCV | Around 10MΩ | √ | √ |
| General Characteristic | |||
| Power | 9V Battery(6F22) | ||
| LCD Size | 65mm × 43 mm | ||
| Product Color | Red and Grey | ||
| Product Net Weight | 370g | ||
| Product Size | 180mm × 87mm × 47 mm | ||
| Standard Accessories | UT61A-Battery, Test Lead,Muli-Purpose Socket | ||

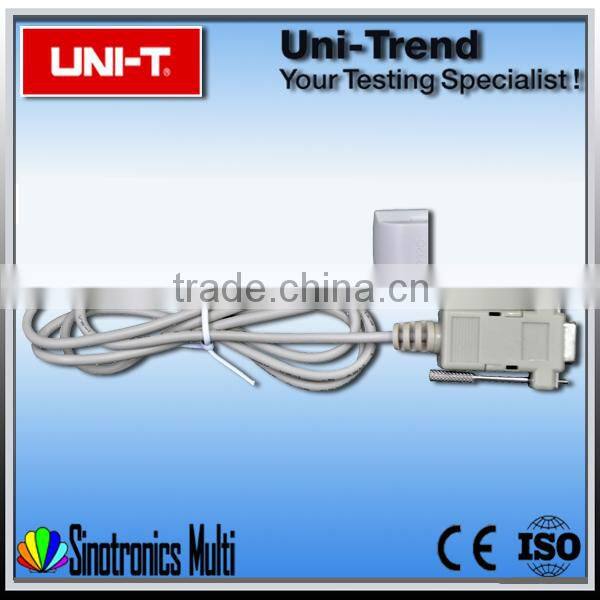

| UT61B-Battery, Test Lead,Muli-Purpose Socket,RS-232 Interface Cable,Software,Point Contact Temperature Probe | |||

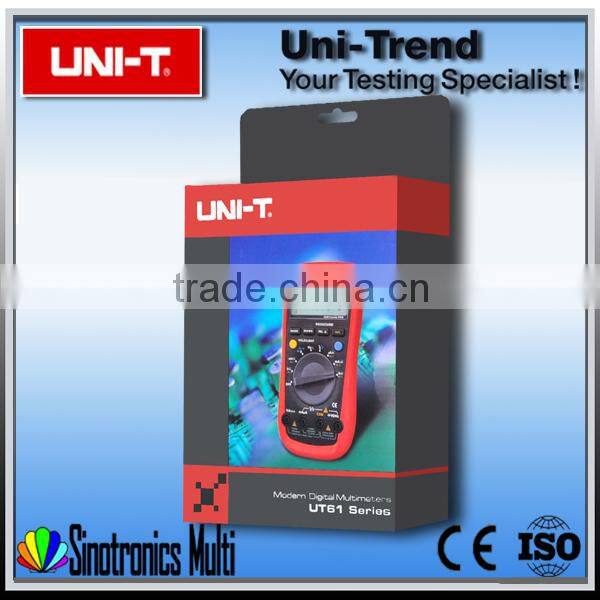

| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 22 PCs | ||
| Standard Carton Measurement | 455mm×335mm×375mm | ||
| Standard Carton Gross Weight | 14.5Kg | ||
| Optional Accessories* | UT61B-USB Interface Cable | ||
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
