Product Details
| Place of Origin: | Guangdong, China | Brand Name: | UNI-T | Model Number: | UT39C |
| Measuring Current Range: | 2mA/200mA/20A | Measuring Voltage Range: | 200mV/2V/20V/200V/1000V | Measuring Resistance Range: | 200Ω/2KΩ/20KΩ/2MΩ/20MΩ |
| Measuring Capacitance Range: | 2nF/200nF/20μF | Measuring Inductance Range: | none | Operating Temperature: | -40 °C ~ 1000°C |
| Dimensions: | 61mm*32mm |
Product Description
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

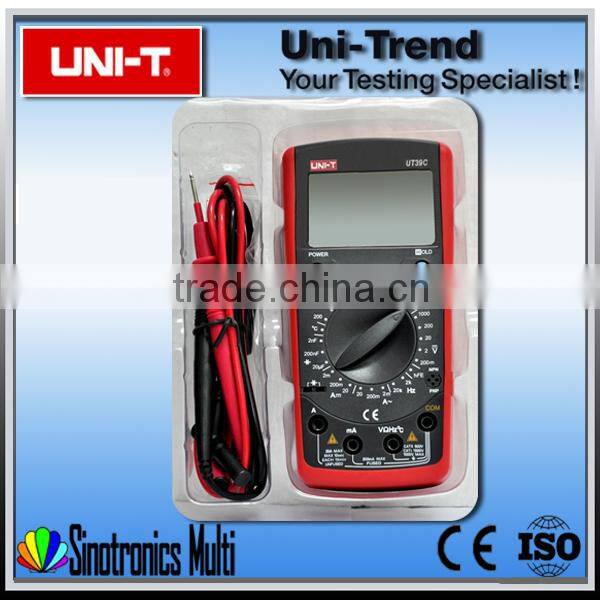

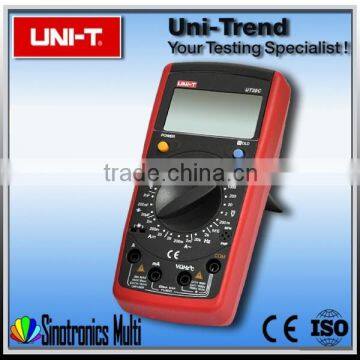

Product image
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product data
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
UT39 series is a 3 1/2 digital manual switching range of digital. The full range of overload protection and unique design, make it become a more superior performance of electrical instrumentation.
Can be applied to smelting, communications, manufacturing, petroleum, national defense, power, chemical and other industries, is a circuit, power equipment maintenance and repair of the ideal tool.
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Product attribute
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
| Specification | Range | Best Accuracy |
| Model | UT39C | |
| DC Voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
| AC Voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) |
| DC Current (A) | 2mA/200mA/20A | ±(0.8%+1) |
| AC Current (A) | 2mA/200mA/20A | ±(1%+3) |
| Resistance (Ω) | 200Ω/2KΩ/20KΩ/2MΩ/20MΩ | ±(0.8%+1) |
| Capacitance (F) | 2nF/200nF/20μF | ±(4%+3) |
| Frequency (Hz) | 2KHz/20KHz | ±(1.5%+5) |
| Temperature (°C) | -40 °C ~ 1000°C | ±(2%+8) |
| Features | ||
| Display Count | 1999 | |
| Manual Range | √ | |
| Diode | √ | |
| Transistor | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Input Impedance for DCV | Around 10MΩ | √ |
| General Characteristic | ||
| Power | 9V Battery(6F22) | |
| LCD Size | 61mm×32mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 310g (Including Holster) | |
| Product Size | 172mm×83mm×38mm | |

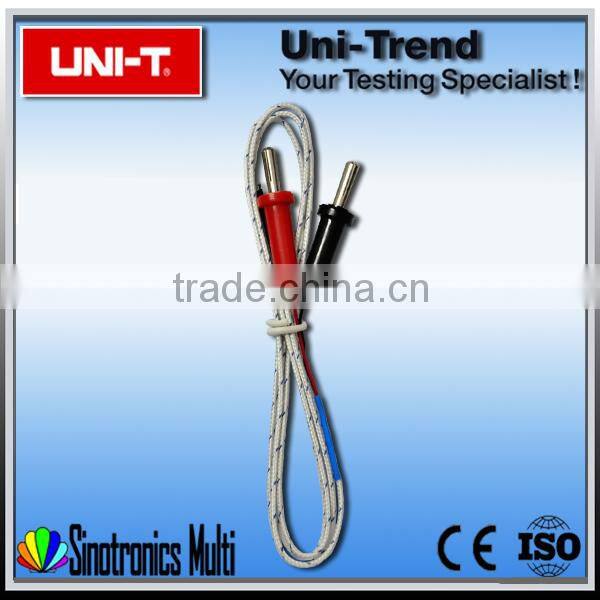

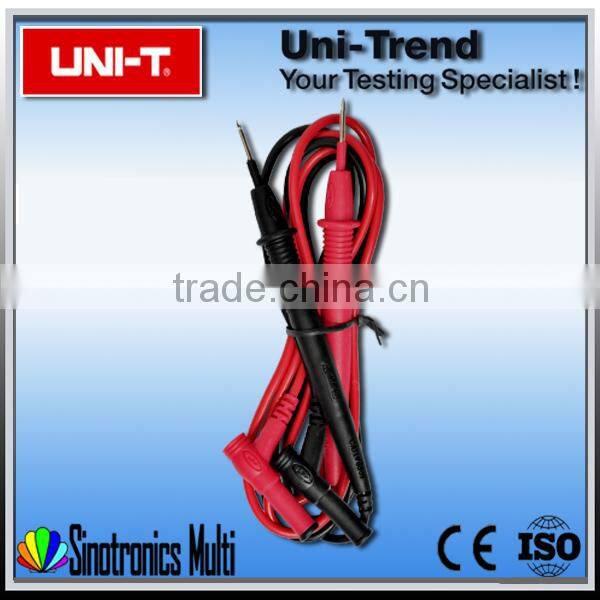

| Standard Accessories | Battery, Test Lead,Point Contact Temperature Probe,Holster | |
| Standard Individual Packing | Gift Box, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 598mm×418mm×340mm (0.085 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 22Kg | |
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
