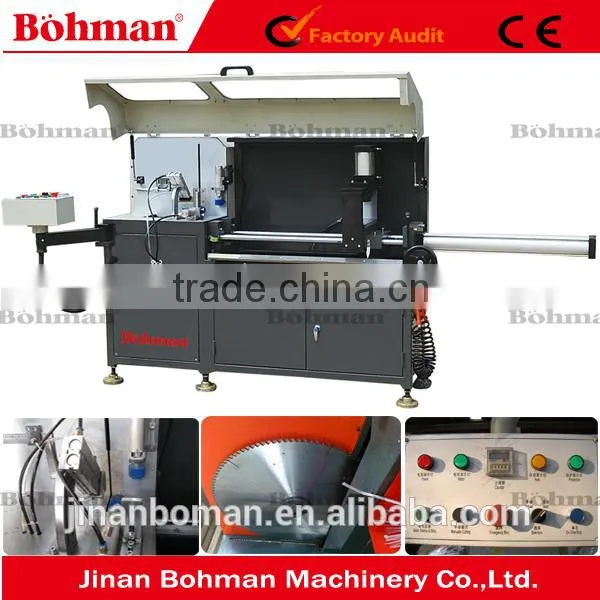

BOHMAN Solar Module Frame Corner Connector Cutting Machine
- BOHMAN Solar Module Frame Corner Connector Cutting Machine has features of easy operation,,reliable performance,advanced technique and convenient maintenance.

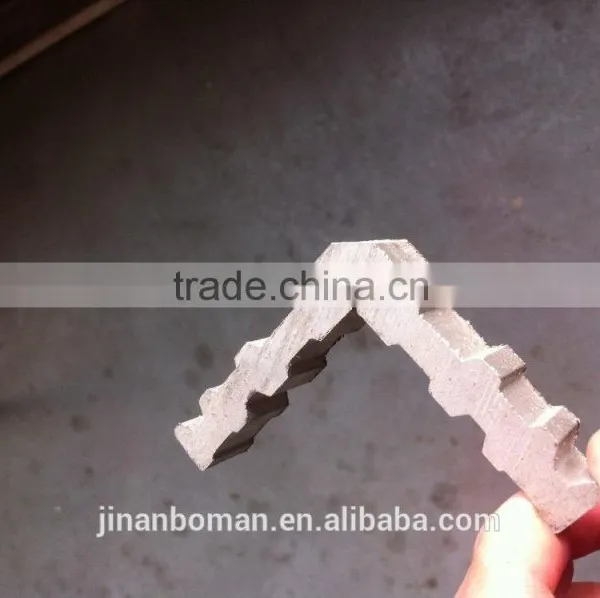

- Used for cutting of the corner profiles for aluminum doors and windows.
- Adopting computer –controlled system,and with automation level.
- Imported carbide saw blade is of high cutting speed,accurate processing and high effciency.
- Linear bearing motion pair gave less resistance force and ensure high processing accuracy.
- Adopting automatic feeding system for the feeding device,it its with features of stability and reliability ,and high efficiency.
- Clamping and feeding process adopt pneumatic control;it is with features of convenient operation,reliability ,and production efficiency.
- Once clamping can achieve continues cutting of six-meter corner profile.
- Control system with automatic counting function.
- The cutting length numbers will be saved automatically when cutting off electricity.
Product Name |
BOHMAN Solar Module Frame Corner Connector Cutting Machine |
Power supply |
380V 50Hz |
Cutting motor power |
2.2Kw |
Motor rotary speed |
2840r/min |
Operation air pressure |
0.5-0.8Mpa |
Auto-feeding length |
5-580mmt |
Air consumption |
80L/min |
Cutting length |
No limit when selected manual mode |
Blade W&H |
140*140mm |
Blade specification |
φ500*φ30*4.4 |
Cutting length |
0-3m/min |
Cutting surface verticality |
0.1mm |
Cutting profile surface plane |
≤0.10mm |
Contour dimension |
5670mm*1770mm*1840mm |
Weight |
500kg |
Service of China Manufacturer for BOHMAN Solar Module Frame Corner Connector Cutting Machine
1. All equipments are 12 month guarantee, lifetime maintance
2. Engineers available to service machinery overseas
3. Supply spare parts at an agency price.
Payment Terms
1. 30% deposit by T/T, 70% before shipment.
2. Western Union
Quality Testing
Before delivery, our engineer will make testing for every machines, to make sure that our machines can work with high performance!
If our price is higher than others company or facotries?
please check, what is the different of the machine, especially machine inner electric parts. Sometimes, if machines have breakdown, most reason is inner electric parts problem. We use the world famous brand parts to install to machines. So that you can use the machine long time.
Want to building or expand your produce sereis, BOHMAN will be your first choice.
BOHMAN is high-tech enterprise specialized in manuafacture and sale of BOHMAN Solar Module Frame Corner Connector Cutting Machine
Our product have exported to many countries. We have many experienced technical engineers and experts who have been worked in this industry for many years.
Machining Factory
To process machine frame. All of our machine are processed by vibration anging, pickling parkerizing, and millling planer. These processes ensrue the frame is firm and stable.
Assembling Factory
This is our center of assembling and Research & Development
Customer Visiting
Exhibition
Packaging Detail: in plastic film or wooden case
Delivery Detail: 10-20 days after receiving deposit
1. We will be carefuuly packed with plastic film pakcage, to make sure it will be arrived safety.
2. If you choose wood pakcage, after inspeciion the goods are packed in plastic film package, and then carefully package in wooden cartons
