Specifications
CNC Double Head Mitre Saw for aluminum wall1. Used for cutting the profile of aluminum doors and windows and curtain-wall

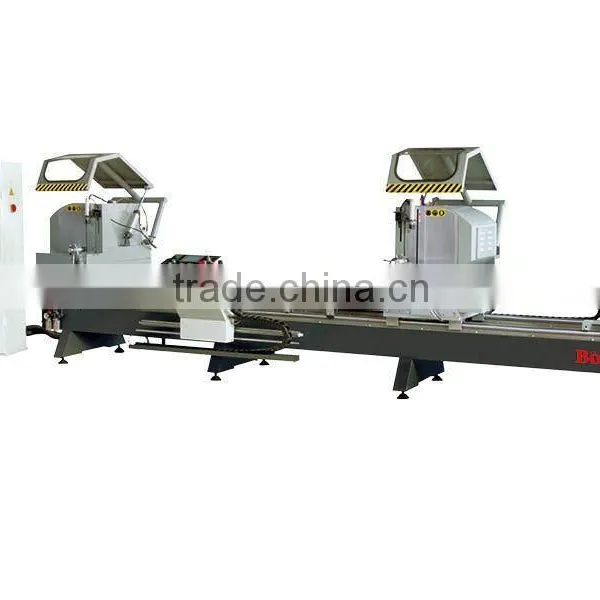

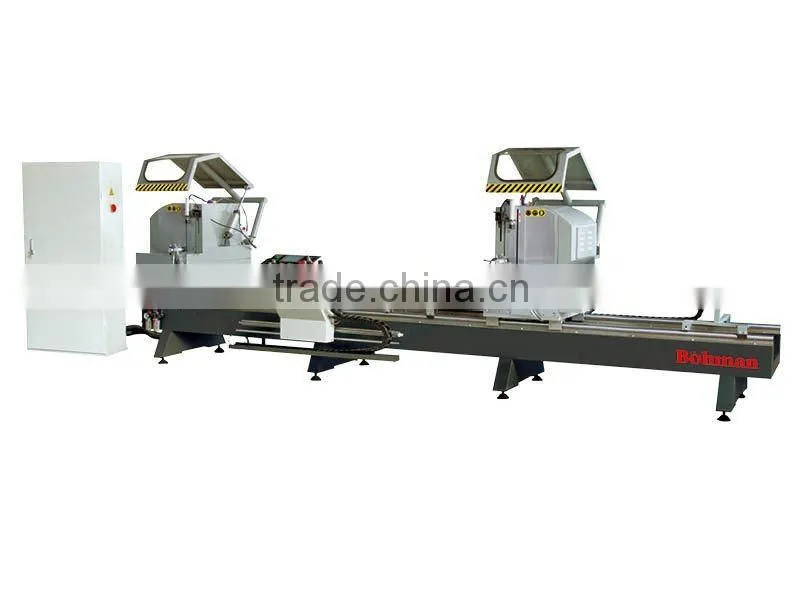

CNC Double Head Mitre Saw for aluminum wall
Equipment Features:
1. Used for cutting the profile of aluminum doors and windows and curtain-wall profiles
2. The feeding system adopts the imported linear guide pair, with high accuracy and stability.
3. Right head feeding adopts high helical pitch ball screw-lead motion, with high accurate driving, locating and smooth working.
4. Adopts CNC technique from Japan, can achieve auto cutting off of various profiles.
5. Two saw heads are adjustable and cut the profiles in 45,90 degree freely
6. Imported carbide saw blade is of accurate processing and high endurance.
7. Imported linear guiding pair ensures steady processing accurancy
8. Saw blade rotates smoothly due to high accurate main spindle.
9. Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder
10. Auto-opening shield makes the operation more safe and convenient
Main Specification and Technical Parameter
| Power Supply | 380V50Hz |
| Cutting Motor Power | 2*2.2kw |
| Operation Air Pressure | 0.5-0.8Mpa |
| Air Consumption | 200L/min |
| Blade Specification | 500*30*4.4*Z120 |
| Cutting Speed Stepless Speed Regulation | 0-3m/min |
| Max Cutting Length | 4500mm |
| Min Cutting Length | 480mm |
| Cutting Heigt | 90degree-max150mm 45degree-max130mm |
Cutting Width |
max235mm |
| Max Cutting Section | 150*230mm |
| Cutting Angle | 90,45 degree |
| Repeated Locating Length Tolerance | +/-0.2mm |
| Cutting Profile Surface Roughness | Ra12.5μm |
| Contour Dimension | 5750*1750*1950mm |
