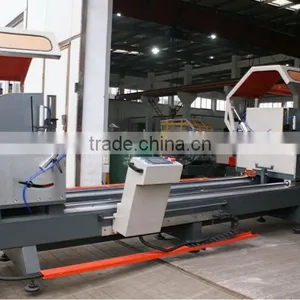

Help CenterLJZ2-500*4200 Aluminium Frame Cutting Machine / Aluminum Digital Display Double Mitre Saw
Related Products
-
BOHMAN Solar Module Frame Corner Connector Cutting MachineUS$ 7,000 - 11,000MOQ: 1 Set -
Single Head Crimping Machine / Aluminum Corner Crimper MachineUS$ 2,000 - 5,500MOQ: 1 Set
-
Double Head Cutting Saw For PVC and Aluminum Profile/ PVC Profile Cutting SawUS$ 2,500 - 5,000MOQ: 1 Set
-
SYJW-1800 PVC Profile Bending Saw MachineUS$ 2,500 - 7,000MOQ: 1 Set
-
SX01-100 Aluminum Profile Copy Router MachineUS$ 980 - 1,500MOQ: 1 Set
Specifications
aluminium frame cutting machine1.Two saw heads
2.safe and convenient operation

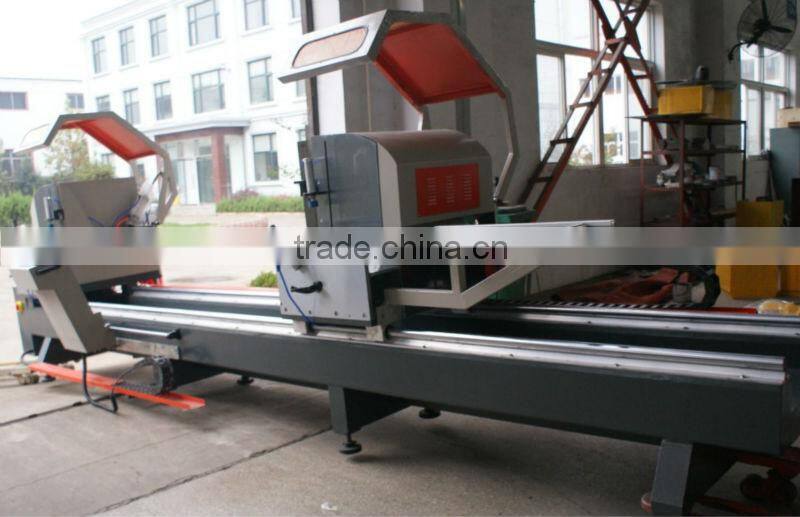

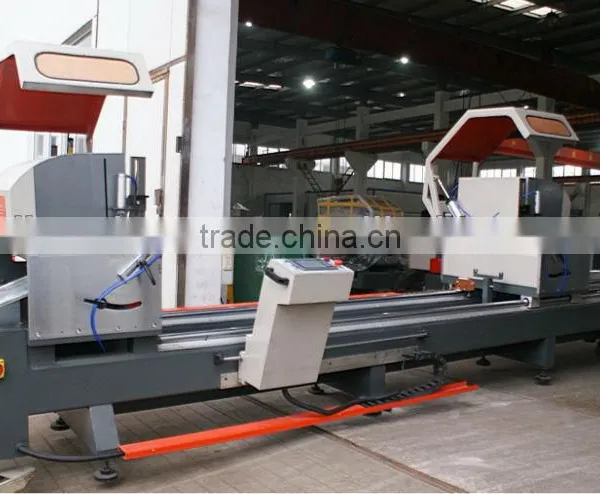

aluminium frame cutting machine / double mitre saw for aluminum curtain wall
The features of this machine:
1.Used for cutting the profile of aluminum doors and windows and curtain-wall profiles.
2.The feeding system adopts the imported linear guide pair,with high accuracy and stability.

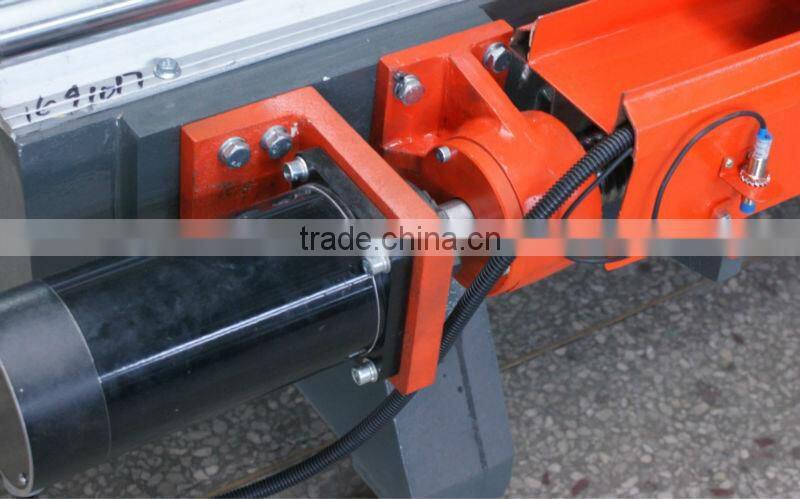

3.Right head feeding adopts high helical pitch ball screw-lead motion,with high accurate driving,locating and smooth working.
4. Imported linear guiding pair ensures steady processing accuracy.
5.Two saw heads are adjustable and cut the profiles in 45°90°freely.
6.Imported carbide saw blade is of accurate processing accuracy.
7.Saw blade rotates smoothly due to high accurate main spindle.
8.Uniform speed feeding and smooth motion is due to air hydraulic damping cylinder.
9.Auto-opening shield makes the operation more safe and convenient.
Main specification and technical parameter:
Power supply |
380V 50 Hz |
Cutting motor pwer |
2*2.2Kw |
Operation air pressure |
0.5-0.8Mpa |
Air consumption |
200L/min |
Blade specification |
φ500*φ30*4.4*Z120 |
Cutting speed stepless speed regulation |
0-3m/min |
Max.cutting length |
4500mm |
Min.cutting length |
480m |
Cutting height |
90°:Max*150mm 45°:Max*130mm |
Cutting width |
Max 235mm |
Max cutting section |
150mm*230mm |
Cutting angle |
90°45° |
Repeated locating length tolerance |
±0.2mm |
Cutting profile surface roughness |
Ra12.5μm |
Contour dimension |
5750mm*1750mm*1950mm |
