Specifications
B5063 Heavy Cut Vertical Slotting MachineMax. slotting length: 630mm
Max weight of woo piece: 2000kg
CE, ISO
B5063 Heavy Cut Vertical Slotting Machine
1. This vertical planning active surfaces of parts and notch etc.
2. The machine runs smoothly owing to it adopts double crank mechanism.
3. The length of ram stroke can be adjusted by power
4. The machine operates easily because motion of the working table is driven by electric motor.
5. It has a pump for lubrication and cooling cutting tool woo piece.
Max.Slotting Length of ram | 630 | mm |
Number of ram strokes(per min) | 8,12,20,30 | r.p.m |
Indination of ram head | ±10° | deg |
Distance between tool holding surface and colunmn front | 1120 | mm |
Collet for slotting tool with sidth of Table | 22H11 | mm |
Distance between workable and the lower side of slide | 800 | mm |
Max .longitudinal travel of table | 1120 | mm |
Range of table longitudinal and transverse feeds ram storke | 0.10,0.20,0.32,0.54,0.80,1.30 | mm/per |
Rang of table rotary feed deg per ram storke | 3`,6`,9`36``,16`12``,24`,39` | deg/per |
Diameter of the worktable | 1120 | mm |
Max.weight of the worktable | 2000 | kg |
Width of main drive motro | 22H11 | mm |
Power of main drive motor | 10 | kw |
Max Cutting force | 2000 | N |
Machine net weight(approx) | 11 | t |
Overall dimension(L*w*H) | 3580*2390*3660 | mm |

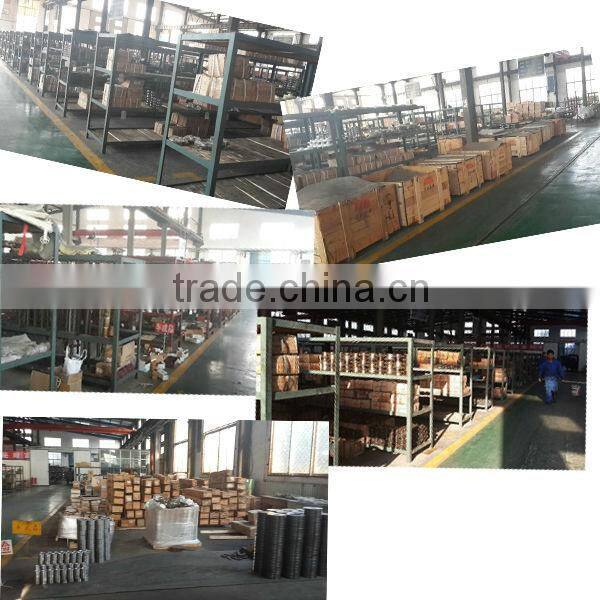

Tool shop

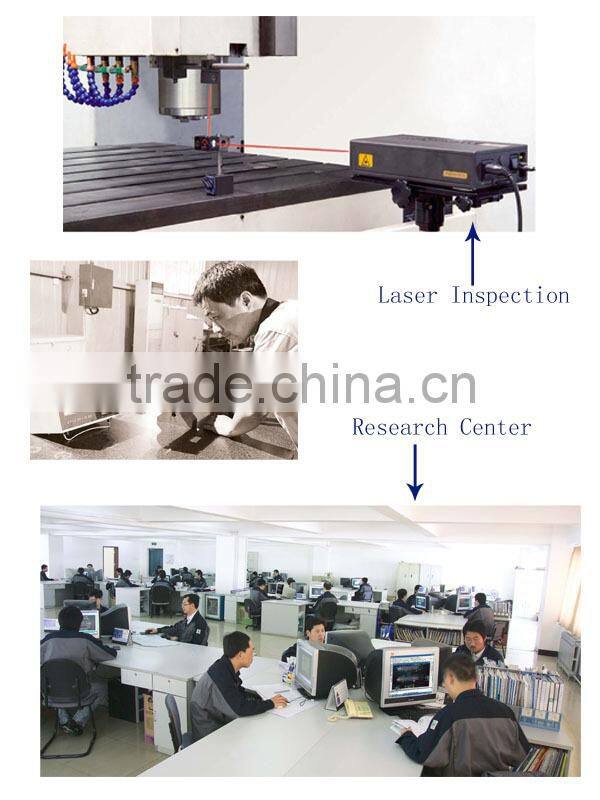

The production process
B5063 Heavy Cut Vertical Slotting Machine

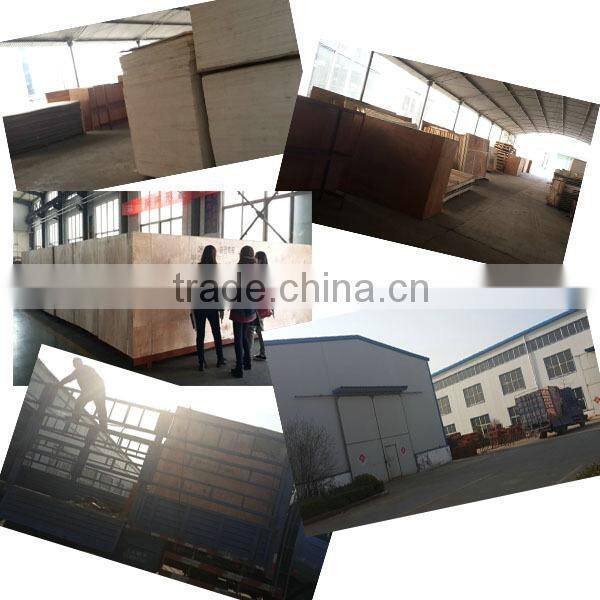

Wooden Package with Fumigation
B5063 Heavy Cut Vertical Slotting Machine
2.LC at sight.
COLOR, VOLOTAGE, POWER according to the client's requirement .
If you have any questions, please contact me.
