Help CenterVMC550L Mini Cnc Milling Machine
Related Products

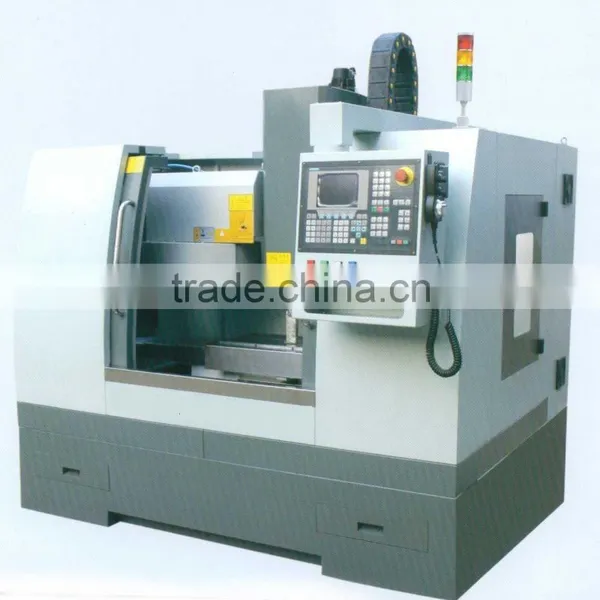

VMC550L cnc milling machine
VMC550 XYZ axes hard way
Taiwan-made spindle
Highly rigid resin sand casting
Precise ball screw
Taiwan tools cylinder
Taiwan precise cap nut
Stainless steel dust-proof mask
Automatic intermittent lubrication system
Adjustable horn
Japan NSK bearing
For CNC machine center,
1. Control system: KND or GSK
2 Origin of electronical components: Made in China
3 Origin of ball screw: made in China
4 Origin of the 4th axis: made in China
5 Origin of the tool changer: made in China
NO. |
ITEM |
Specification |
|||
1 |
Table size L(mm)×W(mm) |
800×320 |
|||
2 |
T slot QTY /width/interval distance(mm) |
3-14-100 |
|||
3 |
Maximum load(KG) |
300 |
|||
4 |
X travel (mm) |
550 |
|||
5 |
Y travel (mm) |
340 |
|||
6 |
Z travel (mm) |
450 |
|||
7 |
Spindle nose to table (mm) |
100-550 |
|||
8 |
Spindle center to column (mm) |
360 |
|||
9 |
Spindle taper |
BT40/120 |
|||
10 |
Spindle driver |
Direct |
|||
11 |
Max. spindle speed (Rpm) |
8000 |
|||
12 |
Main motor (kW) |
5.5 |
|||
|
13
|
Feed motor
|
X torque(N.M) |
5 |
||
Y torque(N.M) |
6 |
||||
Ztorque(N.M) |
6 |
||||
Max. install size |
5.5 |
||||
14 |
Rapid moving speed (m/min.) |
10/10/8 |
|||
15 |
Cutting speed (mm/min) |
1-4000 |
|||
16 |
Ball screw (diametermm/pitch )mm |
32/06 |
|||
17 |
Accuracy
|
Positioning accuracy (mm) |
0.016 |
||
Repeatability accuracy (mm) |
0.008 |
||||
18 |
Tool changer |
Funnel type (optional ) BT40 |
10 or 12or 16 |
||
19 |
Air pressure Mpa |
0.6 |
|||
20 |
Machine weight (kg) |
Frame |
2000 |
||
Complete machine |
2500 |
||||
21 |
Machine overall size : L(mm)×W(mm)×H(mm) |
Frame |
1600x1860x2100 |
||
|
Complete machine
|
2200x1600x2300 |
||||
Send Inquiry to This Supplier
