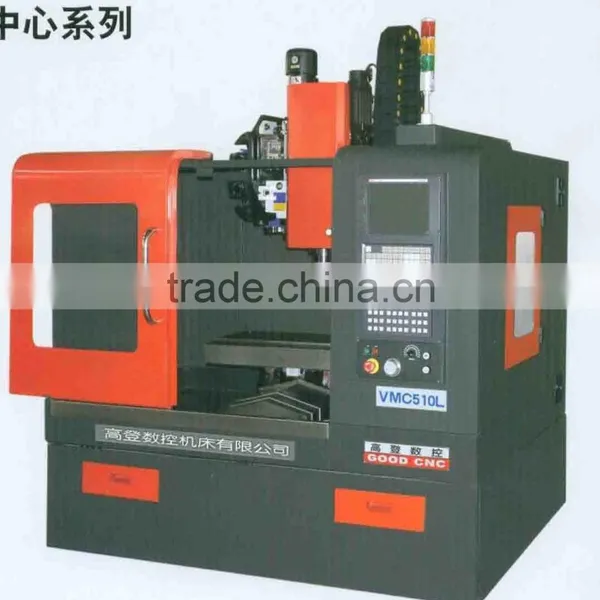

mini cnc milling machine
NO. |
ITEM |
Specification |
||||
1 |
Table size L(mm)×W(mm) |
1000×330 |
||||
2 |
T slot QTY /width/interval distance(mm) |
5-16-63 |
||||
3 |
Maximum load(KG) |
300 |
||||
4 |
X travel (mm) |
510 |
||||
5 |
Y travel (mm) |
360 |
||||
6 |
Z travel (mm) |
410 |
||||
7 |
Spindle nose to table (mm) |
110-520 |
||||
8 |
Spindle center to column (mm) |
380 |
||||
9 |
Spindle taper |
BT40 |
||||
10 |
Max. spindle speed (Rpm) |
6000 or 8000 |
||||
11 |
Main motor (kW) |
5.5 |
||||
|
12
|
Feed motor
|
X torque(N.M) |
5 |
|||
Y torque(N.M) |
6 |
|||||
Ztorque(N.M) |
6 |
|||||
Max. install size |
Square 130×130diameter φ110 |
|||||
13 |
Rapid moving speed (m/min.) |
15 |
||||
14 |
Cutting speed (mm/min) |
1-5000 |
||||
15 |
Ball screw (diametermm/pitch )mm |
30/10 |
||||
16 |
Linear guide way width( mm) |
30 |
||||
17 |
Accuracy
|
Positioning accuracy (mm) |
0.016 |
|||
Repeatability accuracy (mm) |
0.008 |
|||||
18 |
Tool changer
|
Funnel type (optional ) BT40 |
10 or 12 |
|||
Manipulator (optional ) BT40 |
12 or 16 |
|||||
|
Tool changing time(s)
|
Funnel type |
8 |
||||
manipulator |
1 |
|||||
19 |
Air pressure Mpa |
0.6 |
||||
20 |
Machine weight (kg) |
Frame |
1400 |
|||
Complete machine |
2000 |
|||||
21 |
Machine overall size : L(mm)×W(mm)×H(mm) |
Frame |
1050×1270×1950 |
|||
Complete machine |
2100×1500×2160 |
|||||
