Help CenterCNC Miller Machine
Related Products

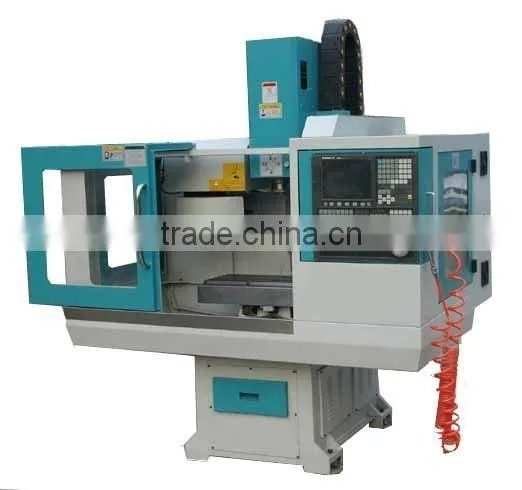

CNC miller machine
NO. |
ITEM |
Specification |
|||||
1 |
Table size L(mm)×W(mm) |
690×210 |
|||||
2 |
T slot QTY /width/center distance(mm) |
3-16-63 |
|||||
3 |
Maximum load(KG) |
100 |
|||||
4 |
X travel (mm) |
330 |
|||||
5 |
Y travel (mm) |
220 |
|||||
6 |
Z travel (mm) |
320 |
|||||
7 |
Spindle nose to table (mm) |
90-410 |
|||||
8 |
Spindle center to column (mm) |
280 |
|||||
9 |
Spindle taper |
BT30 |
|||||
10 |
Max. spindle speed (Rpm) |
6000 or 8000 |
|||||
11 |
Main motor (kW) |
2.2 |
|||||
|
12
|
Feed motor |
X torque(N.M) |
3.3 |
||||
Y torque(N.M) |
4 |
||||||
Ztorque(N.M) |
5 |
||||||
Max.install size |
X |
Square 90×90diameter φ80 |
|||||
YZ |
Square 110×110diameter φ95 |
||||||
13 |
Rapid moving speed (m/min.) |
10 |
|||||
14 |
Cutting speed (mm/min) |
1-4000 |
|||||
15 |
Ball screw (diametermm/pitch )mm |
20/5 |
|||||
16 |
Linear guide way width( mm) |
20 |
|||||
17 |
Accuracy
|
Positioning accuracy (mm) |
0.02 |
||||
Repeatability accuracy (mm) |
0.01 |
||||||
18 |
Tool changer |
Funnel type (optional ) BT30 |
8 or 6 |
||||
Tool changing time (s) |
8 |
||||||
19 |
Air pressure Mpa |
0.6 |
|||||
20 |
Machine weight (kg) |
Frame |
360 |
||||
Complete machine |
700 |
||||||
21 |
Machine overall size : L(mm)×W(mm)×H(mm) |
Frame |
720×860×1160 |
||||
Complete machine |
1200×1100×2000 |
||||||
Send Inquiry to This Supplier
