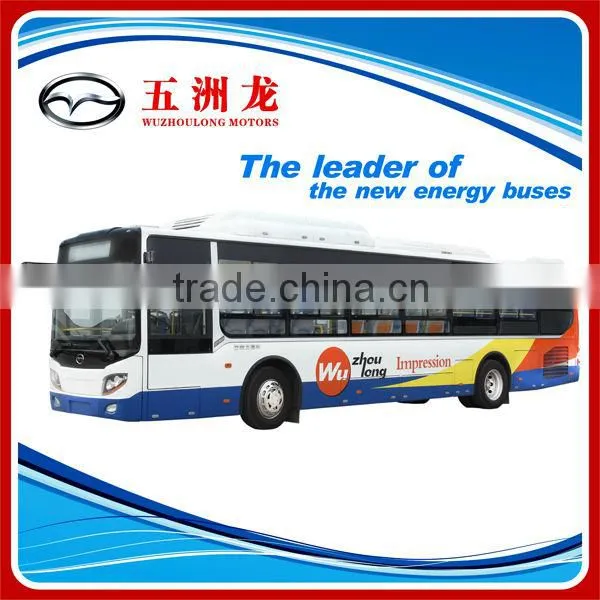

Help Center10.5m Electric Hybrid Bus
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
21 - 40
Emission Standard:
Other, Euro III Euro IV
Transmission Type:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
11.5m 24-41 Seats Electric Hybrid BusNegotiableMOQ: 1 Unit -
11.65m (CNG&battery) New Energy BusNegotiableMOQ: 1 Unit
-
40seats Hybrid Diesel&Battery City BusNegotiableMOQ: 1 Unit
-
40 Seats Natural Gas & Battery Hybrid Bus for SaleNegotiableMOQ: 1 Unit
-
30 Seats Diesel & Battery Hybrid Bus for SaleNegotiableMOQ: 1 Unit
Seats
21 - 40
Emission Standard
Other, Euro III Euro IV
Transmission Type
Automatic
Max Speed
71 - 90 km/h
Steering Position
LHD
Fuel Type
Hybrid
Dimensions (L x W x H) (mm)
10490*2480*3380mm
Place of Origin
Chongqing, China
Brand Name
Wuzhoulong
Model Number
WZL6101PHEVGEG4
Specifications
L*W*H: 10490*2480*3380mmMax.weight: 17000kg
Rated passenger: 60/24-40
Top speed: 69km/h
Our products can be customized,
small order quantity is acceptable.
Specification
| Whole Vehicle Parameter | |
Overall length(mm) |
10490 |
Overall width (mm) |
2480 |
Overall height (mm) |
3140/3380 |
Wheelbase(mm) |
5000 |
Front/Rear overhang (mm) |
2250 / 3240 |
Approach/departure angle(°) |
7/ 7 |
Front/Rear Tread(mm) |
2020 / 1860 |
Gross Weight(kg) |
17000 |
Rated Passengers |
60/24-40 |
Top Speed (km/h) |
75 |
Engine Parameter
| Engine Model | YC 6J210N-40 |
| Engine Position/Fuel | Rear NG & Battery |
| Engine Type | NG Vertical Inline ,4 strokes, water-cooling turbo-intercool, electricity control |
| Max Torque(N.m) | 710/1500 |
| Max power (km/r/min) | 155/2500 |
| Emission standard | 6.454 L |
| Emission standard | Euro IV |
Chassis Parameter
| Chassis Mode/Manufacture | WZL6100DPHEVGR wuzhoulong |
Electric Motor Model /Manu. |
YPQ220M-6 (75KW) /Dalian Tianyuan |
Battery/Manu. |
HEV336V100Ah Guangdong Power Technology Co., Ltd. Wuzhou Long |
Clutch |
φ395 , Electric control ,single .dry style , diaphragm spring |
Front axle |
Dongfeng Dana , Forged module, “H”type section, two fist-end type |
Driving axle |
Dongfeng Dana ,Single-grade reduction, hyperbolic gear |
Suspension |
Leaf Spring9/11 |
Steering |
power steering |
Brake |
Dual-circuit drum braking system according with ECE standard .Automatically air-cut brake. drum type brake |
Gas cylinder |
(8X80L ) 640L |
Tyre |
275/70R22.5 6pcs |
Storage battery/generator |
165A.Hx2/110A+140A 28V |
Similar recommend bus: Model WZL6123PHEVGEG4
