40seats Hybrid Diesel&Battery City Bus

Name: 40seats Hybrid Diesel&Battery City Bus
Brand: Wuzhoulong
SKU: 107169223
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

Other, 20-42

Emission Standard:

Euro 4

Transmission Type:

Automatic

Chongqing Wuzhoulong New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Seats Other, 20-42

Emission Standard Euro 4

Transmission Type Automatic

Max Speed 51 - 70 km/h

Steering Position LHD

Fuel Type Hybrid

Dimensions (L x W x H) (mm) 11490*2500*3140mm

Place of Origin Chongqing, China

Brand Name Wuzhoulong

Model Number WZL6115HEVG

Specifications

40seats hybrid Diesel&Battery City Bus
Size: 11490*2500*3140mm
Fuel: Battery&Diesel
Rated passengers: 24-41
Top speed:70km/h

Our Products can be customized, small order quantity is acceptable.

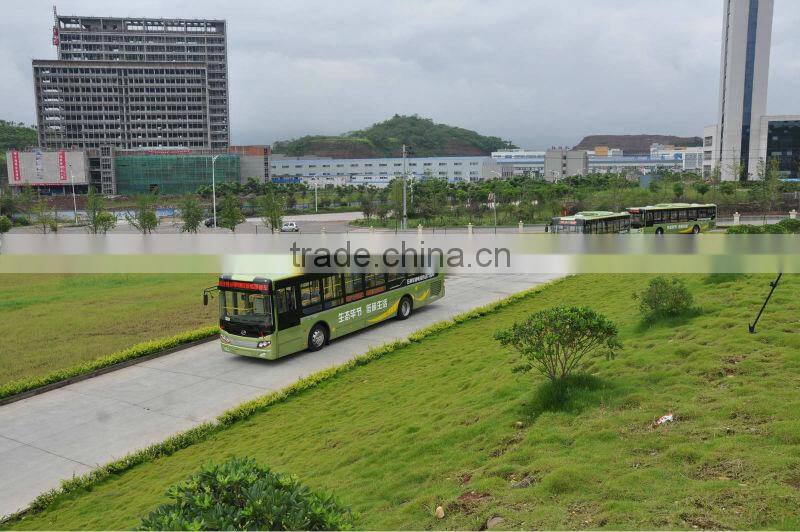

11.5m 40seats hybrid Diesel&Battery City Bus

Engine Parameter

Model	YC6J200 42
Manufacturer	Yuchai
Engine Position/Fuel	Rear/Diesel
Engine Type	Inline 6 cylinders, 4 stokes, water cooled, turbo charger, inter cooler
Max. Power (ps/ r/min)	200ps/2500r/min
Max Torque (N.m/r/min)	730Nm/1200-1700r/min
Displacement(L)	6.5
Cylinder×Bore (mm)	105×125
Emission standard	Euro IV

Chassis Parameter

Model/Manufacturer	FDG6110D5 Wuzhoulong
Main Motor model	YPQ220M-6B main motor,with rotary encoder/Dalian Tianyuan
Driving battery model	Haerbin Coslight Battery
Clutch	diaphragm spring clutch
Front axle	6.5T DongfengEQ153,Front axle 6.5T
Drive axle	DongfengEQ153,Rear axle 13T
Suspension	Front3 rear4 leaf sping, front transverse stabilize bar
Transmission	ZF Integral power steering
Brake	Dual-circuit air brake comply with ECE standard,front disc rear drum braking
Fuel Tank	200L
Tyre	275/70R22.5 6pcs
Storage battery	AC172RA 140A 24V
Others	Rili ABS, Automatic slack adjuster,Automatic lubrication system

Body

Body construction	Monocoque
Interior Trim	Integral molding intenerate interior trim

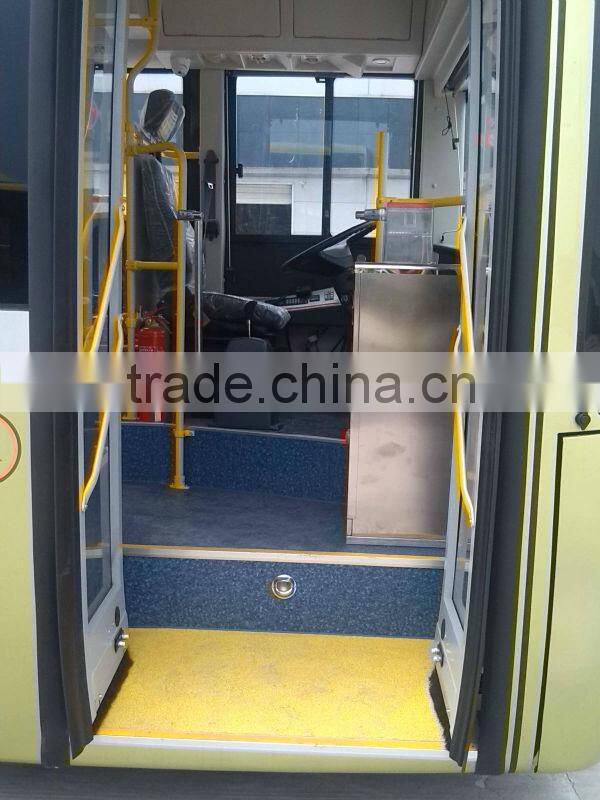

Door and pump	Front and Rear double inter-swing door,Pneumatic pump
Windblock ,side window	Panoramic laminated front windshield ,tempering rear windshield, side window arewindow in window
Rearview system	Rod rear view mirror, Inner mirror, monitoring for down and up
Warm wind/defrosting	Plumbing defrosting
Audio system	MP3
Lights	Front& Rear combination lamp,Strip cabin lights
Windscreen wiper	Scrape type of wiper with scrubber

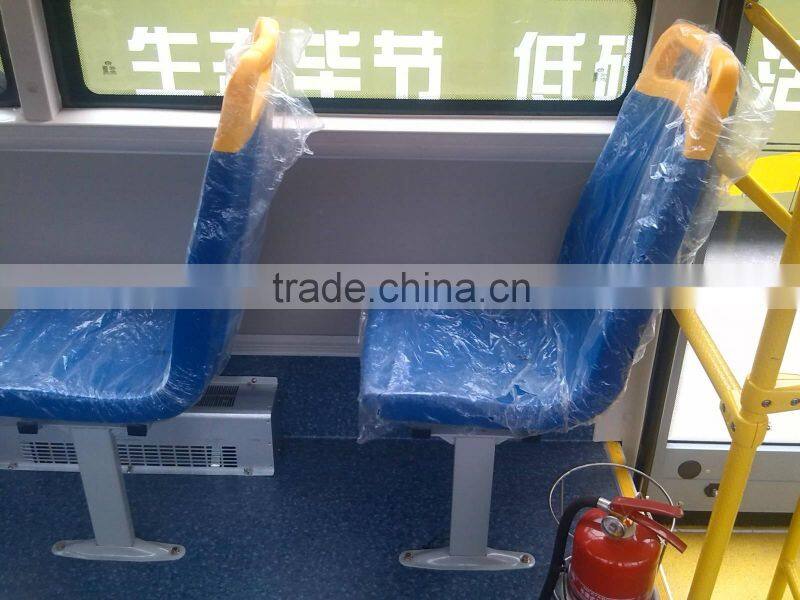

Seats	Plastic seats, 26+1, adjustable driver seat
Floor leather	Anti-slipping floor leather
Lacquer	China solid lacquer
A/C	32000kcal/h top fixed
Handle	Yellow plastic spraying roller spend steel tube armrest
Others	GPS front, middle,rear Electronic road signs LED Inner display Color camera 5 PC coin machine Electric Clock triangle warning board 1pc 4 Safety hammers froth rail ,Half driver sun-visor stainless steel tire hood fire extinguisher(4KgX2) stainless trash holder station announcer station announcer elecreic Ventilation sunroof 2 inductive fire extinguisher in engine cabin 2 driver’s fan on the top
