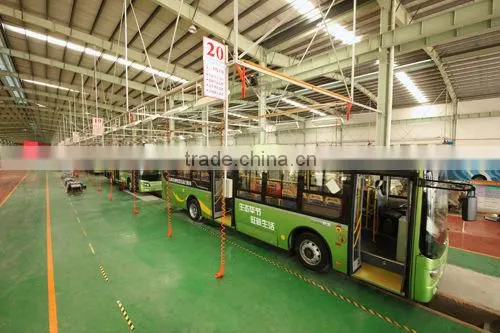

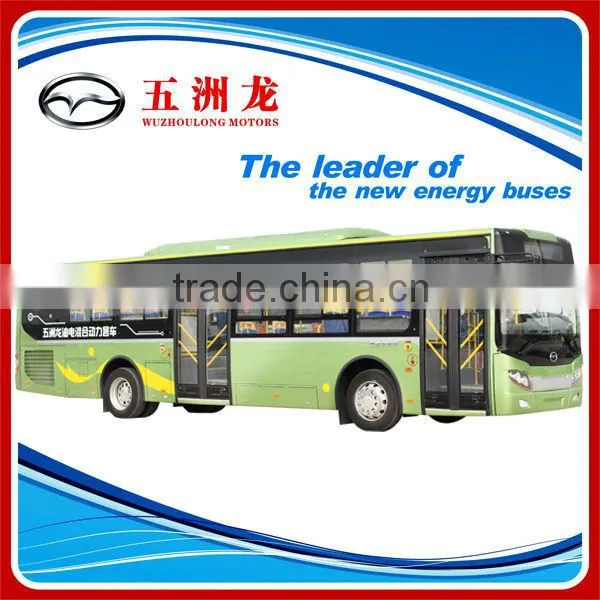

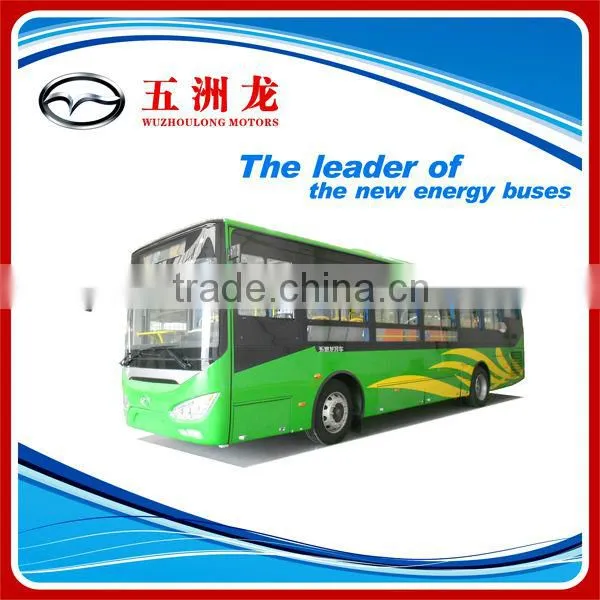

Help Center11.5m 24-41 Seats Electric Hybrid Bus
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
21 - 40
Emission Standard:
Euro 4
Transmission Type:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
11.65m (CNG&battery) New Energy BusNegotiableMOQ: 1 Unit -
40seats Hybrid Diesel&Battery City BusNegotiableMOQ: 1 Unit
-
40 Seats Natural Gas & Battery Hybrid Bus for SaleNegotiableMOQ: 1 Unit
-
30 Seats Diesel & Battery Hybrid Bus for SaleNegotiableMOQ: 1 Unit
-
15-25 Seats Front Engine CNG BusNegotiableMOQ: 1 Unit
Seats
21 - 40
Emission Standard
Euro 4
Transmission Type
Automatic
Max Speed
51 - 70 km/h
Steering Position
LHD
Fuel Type
Hybrid
Dimensions (L x W x H) (mm)
11490*2500*3140mm
Place of Origin
Chongqing, China
Brand Name
Wuzhoulong
Model Number
WZL6115HEVG
Specifications
Dimension: 11490*2500*3140mmRated passengers: 24-41
Gross weight: 17300kg
Top speed:70km/h
Specification
| Overall Parameter | |
| Overall length (mm) | 11490 |
| Overall width (mm) | 2500 |
| Overall height (mm) | 3140 |
| Wheelbase (mm) | 5600 |
| Front/Rear overhang (mm) | 2490/3400 |
| Approach/departure angle (°) | 7//7 |
| Front/Rear Tread (mm) | 2020/1860 |
| Gross Weight(kg) | 17300 |
| Rated Passenger | 24-41 |
| Top Speed (km/h) | 70 |
Engine Parameter
| Model | YC6J200 42 |
| Manufacturer | Yuchai |
| Engine Position/Fuel | Rear/Diesel |
| Engine Type | Inline 6 cylinders, 4 stokes, water cooled, turbo charger, inter cooler |
| Max. Power (ps/ r/min) | 200ps/2500r/min |
| Max Torque (N.m/r/min) | 730Nm/1200-1700r/min |
| Displacement(L) | 6.5 |
| Cylinder×Bore (mm) | 105×125 |
| Emission standard | Euro IV |
Chassis Parameter
| Model/Manufacturer | FDG6110D5 Wuzhoulong |
| Main Motor model | YPQ220M-6B main motor,with rotary encoder/Dalian Tianyuan |
| Driving battery model | Haerbin Coslight Battery |
| Clutch | Diaphragm spring clutch |
| Front axle | 6.5T DongfengEQ153,Front axle 6.5T |
| Drive axle | DongfengEQ153,Rear axle 13T |
| Suspension | Front3 rear4 leaf sping, front transverse stabilize bar |
| Transmission | ZF Integral power steering |
| Brake | Dual-circuit air brake comply with ECE standard,front disc rear drum braking |
| Fuel Tank | 200L |
| Tyre | 275/70R22.5 6pcs |
| Storage battery | AC172RA 140A 24V |
| Others | Rili ABS, Automatic slack adjuster,Automatic lubrication system |
