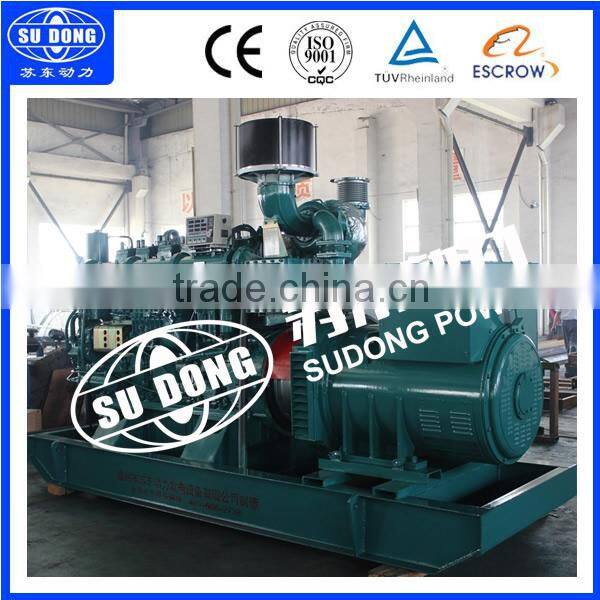

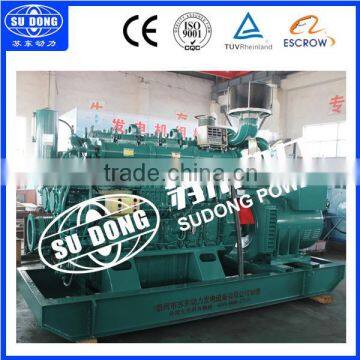

CCS ZC Certificate 680HP 500KW YUCHAI Marine Vessel Diesel Generators

Name: CCS ZC Certificate 680HP 500KW YUCHAI Marine Vessel Diesel Generators
Brand: YUCHAI
SKU: 107129367
Availability: InStock

US$ 6,000 - 89,999 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangxi, China

Brand Name:

YUCHAI

Model Number:

SUDONG

Taizhou Sudong Power Generating Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangxi, China

Brand Name YUCHAI

Model Number SUDONG

Output Type AC Three Phase

Speed 1000RPM

Frequency 50HZ

Rated Power 625KVA--500KW

Rated Voltage 400V

Rated Current 900A

SUDONG POWER is a specialist company in design and manufacture of generator sets.For over 11 years of development ,

SUDONG power has earned the reputation in the market to supply power solutions for various applications with a broad range in power capacities.

1.Main technical data of gensets
1.1	Generator set	SDYM500
1.2	Engine model	YC6C700L-C20
1.3	Alternator model	SB-HA4-500-6P
1.4	Prime power	625KVA / 500KW
1.5	Rated speed	1500RPM
1.6	Output frequency	50HZ

2.Main technical data of engine
Kangmingsi engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1	Brand	YUCHAI
2.2	Model	YC6C700L-C20
2.3	Prime power	625KVA / 500KW
2.4	Governor type	Electronic
2.5	Configuration	4 cycle , 6 cylinder in line
2.6	Cooling method	By heater exchanger
2.7	Bore/Stroke	200×210 mm
2.8	Displacement	5.9 L
2.9	Starting method	Electric
2.10	Fuel consumption	195+5%g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1	Brand	SANBO
3.2	Model	SB-HA4-500-6P
3.3	Prime power	500KW
3.4	Configuration	Brushless , self-exciting
3.5	Prime voltage	400V
3.6	Frequency	50 HZ
3.7	Power factor	0.8(lagging)
3.8	Phase/wire	3 phase 4 wires
3.9	Isolation	H
