Help CenterCCS 187.5KVA Marine Diesel Generator 150KW / 150KW Marine Diesel Generator Set Weichai
Related Products
-
62.5KVA CCS GL Approved 50KW DEUTZ Marine Diesel GeneratorUS$ 4,000 - 89,999MOQ: 1 Set -
112.5 Kva Marine Diesel Generator 90KW / CCS BV Certification Authority / HUADONG 90KW Diesel GeneratorUS$ 4,000 - 29,999MOQ: 1 Set
-
625KVA Marine Diesel Generator 500KW / CCS CE ISO9001 Certification Authority / YUCHAI 500KW Diesel GeneratorUS$ 4,000 - 29,999MOQ: 1 Set
-
CCS CE 250KVA / 200KW Shangchai Diesel Generator Land /(three Security Protection With Alarm Function) 200KW Copper MotorUS$ 4,000 - 8,000MOQ: 1 Set
-
CCS CE 150KW/188KVA Diesel Marine High-frequency Oscillator Diesel Generator / Brushless Generator Copper / With Dual-boot ModeUS$ 4,000 - 12,000MOQ: 1 Set
SUDONG POWER is a specialist company in design and manufacture of generator sets.For over 11 years of development ,SUDONG power has earned the reputation in the market to supply power solutions for various applications with a broad range in power capacities.
With a strong team of specialist engineers ,SUDONG power provides standard power proucts and tailored power solutions to the most challenging and complex power requirements of even the most exacting customers.All our products benefit from the practical experience of our genset development engineeres and close cooperation with our world class suppliers .SUDONG gensets are widely usde in ship building ,harbor equipements ,finace systems,transportations,factories,militarries ,hospitals ,commercial buildings ,airports and railway power cars ,maritime projects etc.and our marine genset is approval by the relative class society such as CCS, BV ,DNV ,RS etc.Products and servies quality have received highly recogntions of domestic and overseas customers.
The company human resources strategy is focusing on emplyee individual development and dedicating to establish a specialist team of continuously studying ,constantly improving ,customer oriented ,respect for and trust in each other .we fulfill our commitment to the environment and maximize our contributions to social stability ,harmony and safety.
Our goal is to sustain at the forefront of domestic and global market for power solutions in an upgrading power range in terms of performance ,quality and services .SUDONG POWER is striding forward to this goal with steady steps.
Genset general feature: |
1.Generator can be used as Main Marine generator
2.CCS,BV approved
3.Cooled by heat exchanger / radiator
4.Adopt WEICHAI Engine
5.Marathon single-shaft alternator standard , Stamford alternator is optional
6.Parallel connection: Two and more normal marine generating sets can transfer loading without stopping ,
and can realize parallel.
7.Standard SAE coupling the engine and alternator
8.With efficiency anti-vibration devices
9.Cold rolled steel one time molded base
10.High reliability , low use and maintenance cost
Product information in the data parameters and prices are for reference only, specific product size, weight and price to the actual product as the standard
Genset Technical Data
1 |
Generator set |
SUDONG |
2 |
Engine model |
WP10CD200E200 |
3 |
Alternator model |
SB-HW4-630-6P |
4 |
Prime power |
150kW |
5 |
Rated speed |
1500 RPM |
6 |
Output frequency |
50 Hz |
7 |
Phase |
3 |
8 |
Rated voltage |
400V |
9 |
Dimension |
2835*1090*1742mm |
10 |
Weight |
1900kg |
Diesel engine parameters
1 |
Brand |
WEICHAI |
2 |
Model |
WP10CD200E200 |
3 |
Prime power |
182KW |
4 |
Governor type |
Electronic |
5 |
Configuration |
6 cylinder in line |
6 |
Cooling method |
By heater exchanger |
7 |
Bore x Stroke |
126×130 mm |
8 |
Consumption |
197+5%g/kw.h |
9 |
Weight | 1900kg |
1 |
Brand |
SANBO |
2 |
Model |
SB-HW4(.D)-150 |
3 |
Prime power |
150KW |
4 |
Configuration |
Brushless , self-exciting |
5 |
Prime voltage |
400V |
6 |
Frequency |
50 HZ |
7 |
Power factor |
0.8(lagging) |
8 |
Phase/wire |
3 phase 4 wires |
9 |
Isolation |
H |
engine section
type of cooling :The sea water heat exchanger |
speed adjustment mode : Electronic Speed governing |
monitoring meter : Digital display with four protection control panel |
Generator part Brushless copper, self-excitation, AVR |
steel seat |
shock pad |
|
accessories section: diesel engine,electric generator, Random standard tools and spare parts manufacturer |
| technical documents:Diesel engine and generator manual,CCS,ZC or ZY Substituting certificate |
Increase for part
Fire star muffler |
Start the battery or air compressor |
Remote control instrument |
three filters ,sea water pump,Vulnerability consumable such as leather belt |
stand alone type or Base oil tank |
| low noise or rain cover |
Warranty
Year or 1000 hours (whichever occurs first), due to product quality issues free repair or replacement parts, life-long paid services
(Consumable parts, used parts, man-made damage, negligence, warranty does not cover maintenance etc)
certified product
CCS / ZC / BV
Classification Society certification
International standards certification ISO9001-2008 certification CE certification
Industry Standard GB / T13032-91 marine diesel generator set technical conditions
The company has a Certificate
Foreign customers to the company access

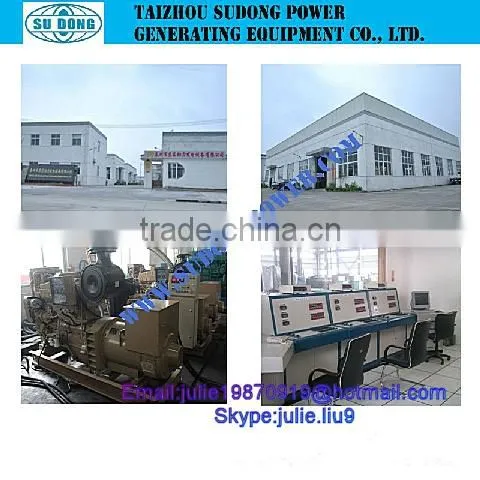

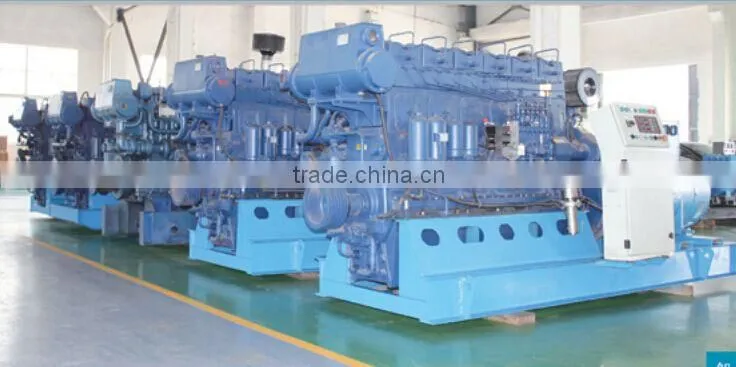

Company location and factories
TAIZHOU SUDONG Power Gengerator Equipment Co.Ld.
ADD:NO.79,XingLingRD,Hailing Industry Zone,Taizhou,Jangsu,China225300
TEL:+86-523-86083568 86652738 +86-18261046476
FAX:+86-523-86652769 86083068
WEB:
