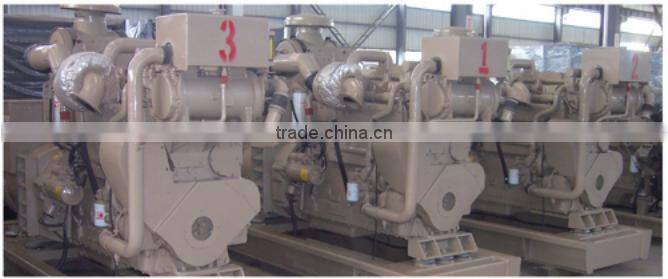

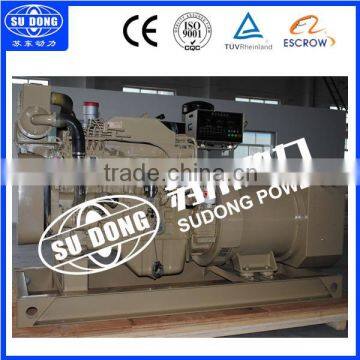

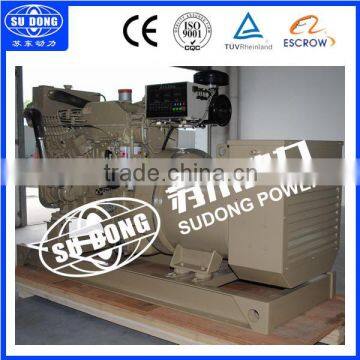

Help CenterCCS CE 204 HP Diesel Marine High-frequency Oscillator Diesel Generator / Brushless Generator Copper / With Dual-boot Mode
Related Products
-
CCS 187.5KVA Marine Diesel Generator 150KW / 150KW Marine Diesel Generator Set WeichaiUS$ 4,000 - 10,000MOQ: 1 Set -
62.5KVA CCS GL Approved 50KW DEUTZ Marine Diesel GeneratorUS$ 4,000 - 89,999MOQ: 1 Set
-
112.5 Kva Marine Diesel Generator 90KW / CCS BV Certification Authority / HUADONG 90KW Diesel GeneratorUS$ 4,000 - 29,999MOQ: 1 Set
-
625KVA Marine Diesel Generator 500KW / CCS CE ISO9001 Certification Authority / YUCHAI 500KW Diesel GeneratorUS$ 4,000 - 29,999MOQ: 1 Set
-
CCS CE 250KVA / 200KW Shangchai Diesel Generator Land /(three Security Protection With Alarm Function) 200KW Copper MotorUS$ 4,000 - 8,000MOQ: 1 Set
SUDONG POWER is a specialist company in design and manufacture of generator sets.For over 11 years of development ,
SUDONG power has earned the reputation in the market to supply power solutions for various applications with a broad range in power capacities.
Genset general feature: |
1.Generator can be used as Main Marine emergency generator
2.CCS,BV approved
3.Cooled by Sea and fresh water heat exchanger
4.Adopt Kangmingsi Engine
5.Marathon single-shaft alternator standard , Stamford alternator is optional
6.Parallel connection: Two and more normal marine generating sets can transfer loading without stopping ,
and can realize parallel.
7.Standard SAE coupling the engine and alternator
8.With efficiency anti-vibration devices
9.Cold rolled steel one time molded base
10.High reliability , low use and maintenance cost
Product information in the data parameters and prices are for reference only, specific product size, weight and price to the actual product as the standard

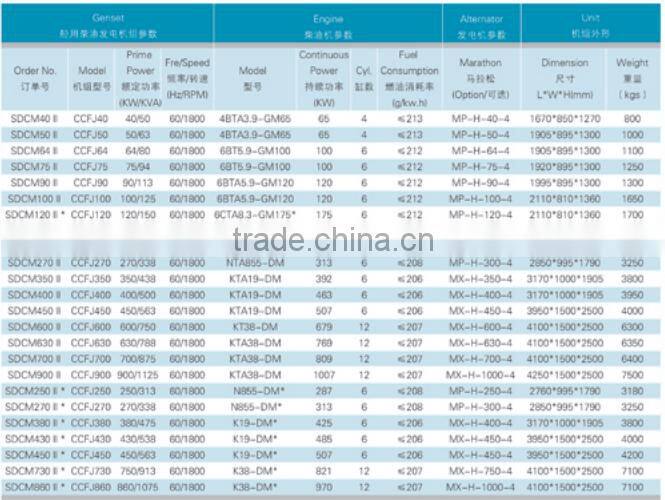

Genset Technical Data
1 |
Generator set |
CCFJ150 |
2 |
Engine model |
6CTA8.3-GM175 |
3 |
Alternator model |
MP-H-150-4 |
4 |
Prime power |
150KW |
5 |
Rated speed |
1800RPM |
6 |
Output frequency |
60HZ |
7 |
Phase | 3 |
8 |
Rated voltage
|
440V |
Diesel engine parameters
1 |
Brand |
Kangmingsi |
2 |
Model |
6CTA8.3-GM175 |
3 |
Prime power |
240HP / 175KW |
4 |
Governor type |
Electronic |
5 |
Configuration |
6 cylinder in line |
6 |
Cooling method |
Radiator fan |
7 |
Bore*Stroke | 114*135mm |
8 |
Starting method
|
Electric |
9 |
Weight |
1750kg |
Generators Parameters
1 |
Brand |
Marathon |
2 |
Model |
MP-H-150-4 |
3 |
Prime power |
204HP / 150KW |
4 |
Configuration |
Brushless , self-exciting |
5 |
Prime voltage |
440V |
6 |
Frequency |
60 HZ |
7 |
Power factor |
0.8(lagging) |
8 |
Phase/wire |
3 phase 4 wires |
9 |
Isolation |
H |
Warranty
Our warranty will be 1000 accumulative hous or 12 month after shipping, whichever comes first.
Certificate & Document
1) Alternator operation and maintenance manual 1PC
2)Engine operation and maintenance manual 1PC
3)Generator Overall drawings of the set 1PC
4)Electrinic system drawing 1PC
5)Bench test 1PC
6)Packing list 1PC
6 Control Panel
engine section
type of cooling :Radiator fan |
speed adjustment mode : Electronic Speed governing |
control cabine :cntrol cabinet |
Generator part Brushless copper, self-excitation, AVR |
steel seat |
shock pad |
|
accessories section: diesel engine,electric generator, Random standard tools and spare parts manufacturer |
| technical documents:Diesel engine and generator manual,CCS,ZC or ZY Substituting certificate |
Increase for part
Fire star muffler |
Start the battery or air compressor |
Remote control instrument |
three filters ,sea water pump,Vulnerability consumable such as leather belt |
stand alone type or Base oil tank |
| low noise or rain cover anti-condansation heater |
The company has a Certificate
TAIZHOU SUDONG Power Gengerator Equipment Co.Ld.
ADD:NO.79,XingLingRD,Hailing Industry Zone,Taizhou,Jangsu,China225300
