CE Imported Compressor High Capacity Air Cooled Chiller/water Cooled Chiller System/Industrial Air Chiller Factory

CE Imported Compressor High Capacity Air Cooled Chiller/water Cooled Chiller System/Industrial Air Chiller Factory thumbnail-1
CE Imported Compressor High Capacity Air Cooled Chiller/water Cooled Chiller System/Industrial Air Chiller Factory photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Air-Cooled, Air-cooled Industrial Chiller,Water-cooled Industrial Chiller
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Guangzhou Jiayin Machinery Pte., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Air-Cooled, Air-cooled Industrial Chiller,Water-cooled Industrial Chiller
Place of Origin Guangdong, China
Brand Name JIAYIN
Model Number MCA-10
Cooling Capability(kw) 29.7KW
Voltage 220V-480V
Dimension(L*W*H) 162* 85*160
Certification CE
Warranty all life
After-sales Service Provided Engineers available to service machinery overseas

Specifications

ultra-strong refrigeration long operating life
rapid thermal transfer
save energy and power
Microcomputer touch-type control

Air-Cooled Industrial Chiller



    Features:

         Designed with imported compressor and water pump forultrapowerful refrigeration, with prolonged service life;
        High-efficiency evaporator and condenser realizing rapid thermal transfer;
        Open-type stainless steel water tank, easy and fast to clean and maintain;
        Double-compressor design to save energy and power;
        Well-structured safety protection and trouble indication system;
        Microcomputer touch-type control, accurate temperature Control and simple operation.



Specifications:



Model


MCA-5


MCA-10


MCA-15


MCA-20


MCA-25


MCA-30


MCA-40


Refrigerating capacity


KW


15


29.7


44.1


58.6


69


86.2


117.2


Kcal/h


12900


25600


38000


50390


59340


74100


100790


Input power


  3- phase  380V 50HZ


Compressor


Type


All-closed vorticity/all-closed piston/semi-closed/screw


Input power(kw)


3.75


7.5


11


15


18.75


22.5


30


Built-in freeze water pump


Power(kw)


0.75


1.5


1.5


2.25


2.25


2.25


3.75


Condensor


Type


Efficient copper tube cover aluminium


Fan Type


Low noise outer rotor metal blower


Evaporator


type


Stainless steel water tank plate copper tube


Dia of outlet and inlet(INCH)


4× (1/2)


1.5


1.5


2


2


2


3


Water tank capacity(L)


50


120


180


250


300


350


450


Refrigerant


Type


R-22


Flow control


Caloric power expansion valve


Magnetic valve


Castol         Italy castol


Filter


"ALCO "          America ALCO


Electric material


Taiwan Taian technology


Controller


Micro computer digital display control.     Degree of precision ±ºC


Temperature range


3ºC------40ºC


Protective device


High/low pressure protective switch, phase failure protection, overload protective switch, antifreeze switch, time delay protection, over-temperature protection, over-current protection


Dimension(cm)


125× 58× 124


162× 85× 160


182× 93× 165


235× 90× 165


235× 93× 170


240× 93× 170


245× 93× 175









                 CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory







                                CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory



                                CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory

                                CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory

                                 CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory

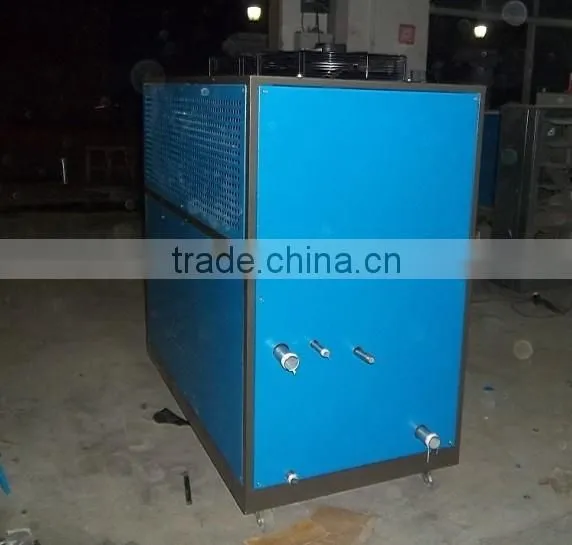

                     20HP Horizontal type Industrial Chiller

                                    CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory

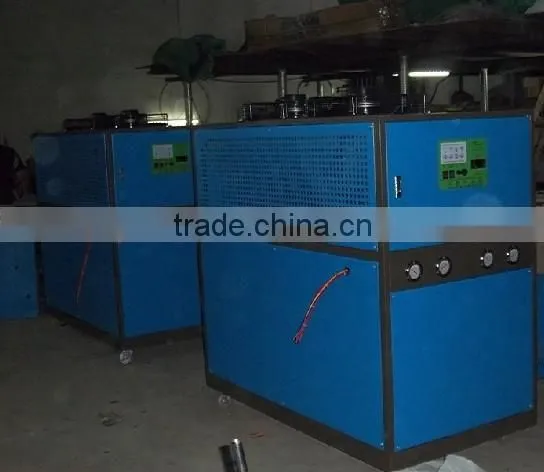

 20HP Open type Industrial Chiller CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory

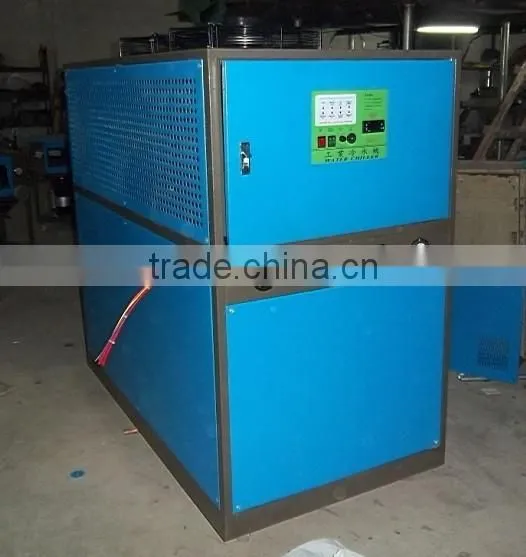

 20HP vertical type Industrial Chiller

                         CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory











Packaging

1.Outside package: Standard export wooden cases
2 .Inner package:Stretch film

CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory

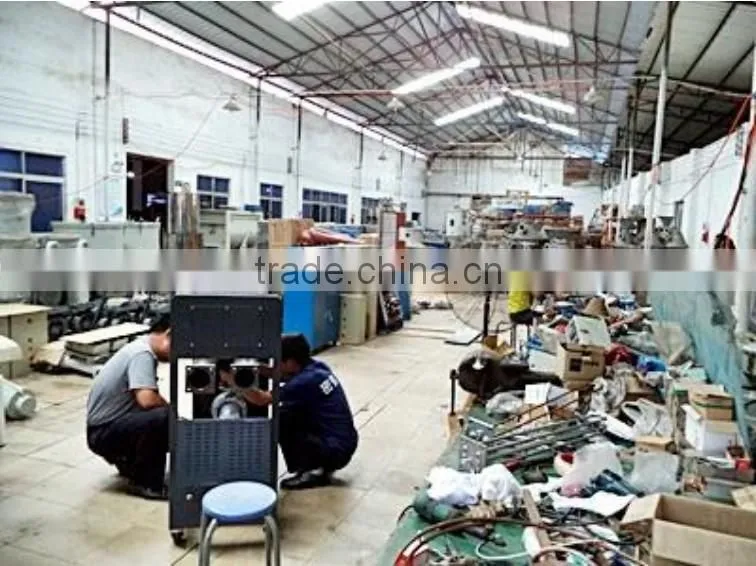

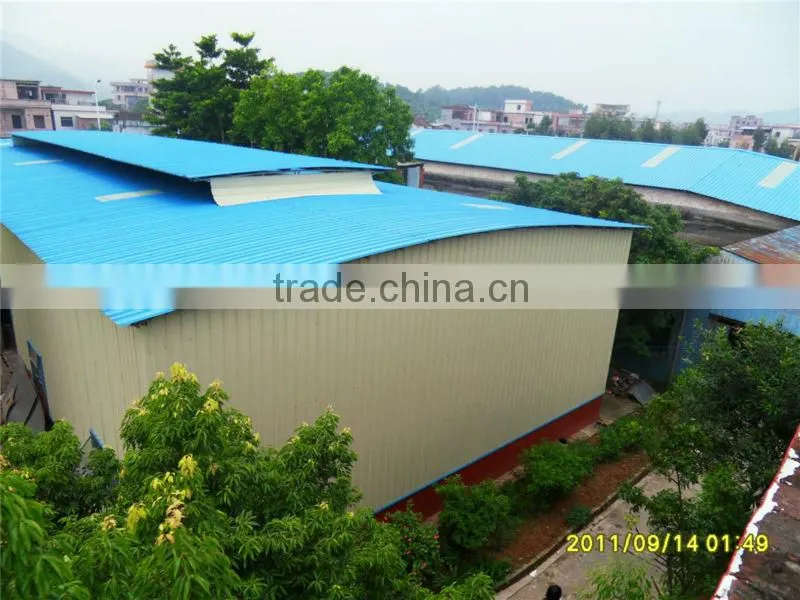

Company Information

  CE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factoryCE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factoryCE Imported Compressor High capacity air cooled chiller/water cooled chiller system/Industrial Air Chiller factory

   GuangzhouJiayin Machinery Pte.,Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte., Ltd) is one of the pioneers in auxiliary plastic forming equipment industry in China,specializing in research,design,manufacture and distribution of and service for such equipment with the technology andexperience accumulated about 30 years.

     Our products include crushers,grinders,rubber cutters,dryers,dehumidifiers,suction machines,color mixers,mould temperature controllers,water chillers,color master batch propor.wire recycling machine..more
