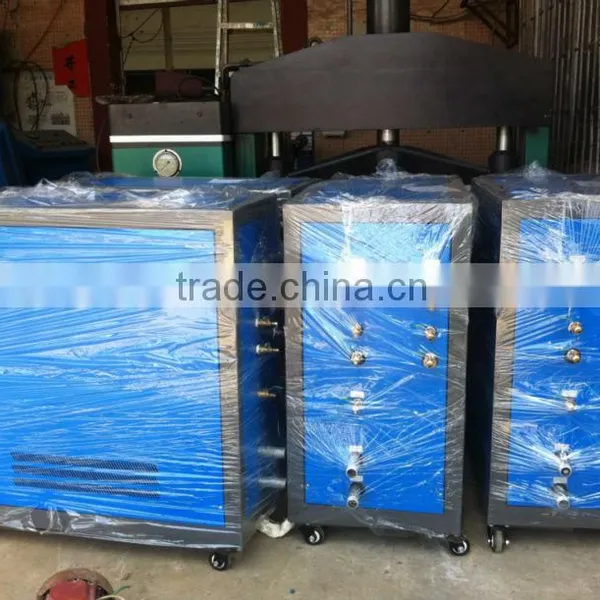

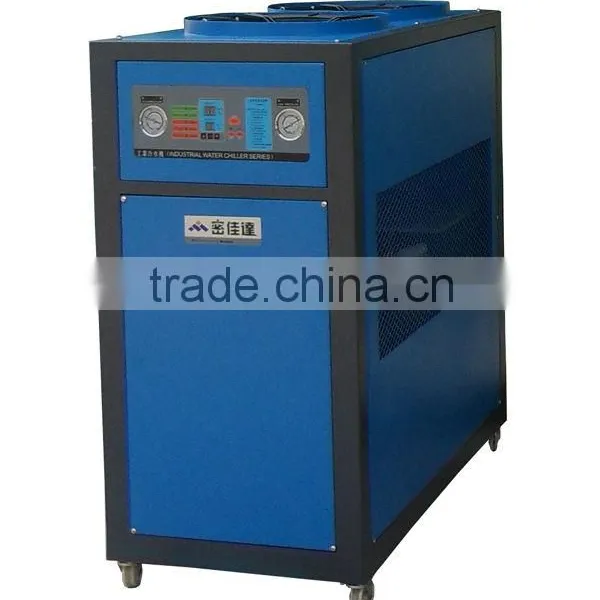

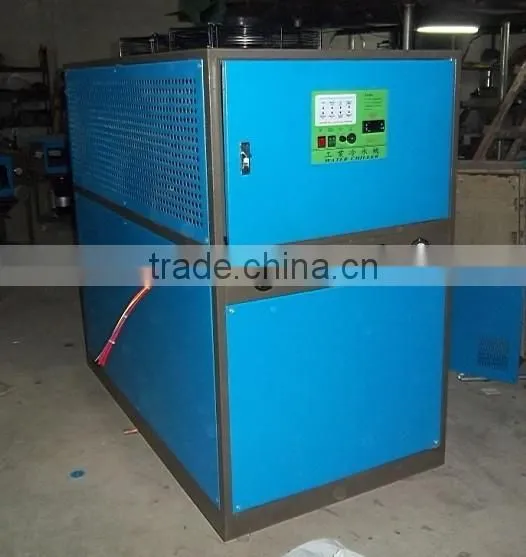

Water-cooled Industrial Chiller
Features:
1,Designed with imported compressor and water pump for ultra-powerful refrigeration,with prolonged service life;
2,High-efficiency evaporator and condenser realizing rapid thermal transfer;
3,Open-type stainless steel water tank,easy and fast to clean and maintain;
4,Double-compressor design to save energy and power;
5,Well-structured safety protection and trouble indication system;
6,Microcomputer touch-type control,accurate temperature control and simple operation.
Safety protection system:
No tatal power circuit breaker
Compressor overload protection
Circulating pump overload protection
Anti-phase and open phase protection
High&Low pressure protection for refrigerant
Freezing protection
Trouble indicator and abnormality buzzer alarm
Specifications of water chiller
Model |
MCA-5 |
MCA-10 |
MCA-15 |
MCA-20 |
MCA-30 |
MCA-40 |
|
|
Refrigerating Capacity |
KW |
15 |
29.7 |
44.1 |
58.6 |
69 |
117.2 |
Kcal/h |
12900 |
26230 |
38700 |
52460 |
79120 |
104920 |
|
Input power |
3 phase 380v 50hz |
||||||
Compressor |
Type |
All-closed vorticity/all-closed piston/semi-closed/screw |
|||||
Input Power |
5HPx1 |
5HPx2 |
5HPx3 |
10HPx2 |
12.5HPx2 |
10HPx3 |
|
Quantity of compressor |
1 |
2 |
3 |
2 |
2 |
3 |
|
Built-in freeze water pump |
Power(KW) |
0.75 |
1.5 |
1.5 |
2.25 |
2.25 |
3.75 |
Condenser |
Type |
shell and coil condenser |
|||||
Fan Type |
1 |
1.5 |
1.5 |
2 |
2 |
3 |
|
Evaporator |
Type |
Stainless steel water tank plate copper tube |
|||||
Dia of outlet and inlet(inch) |
4x(1/2) |
1.5 |
1.5 |
2 |
2 |
3 |
|
Water tank capacity(L) |
50 |
120 |
180 |
250 |
350 |
450 |
|
Refrierant |
Type |
R-22 |
|||||
Flow control |
Caloric power expansion Valve |
||||||
Magnetic valve |
Italy castol |
||||||
Filter |
America “ALCO” |
||||||
Electric material |
Taiwa taian technology |
||||||
Controler |
Microcomputer digital display control.Degree of precision ±°C |
||||||
Temperature range |
3°C----40°C |
||||||
Protective device |
High/low pressure protective switc,phase failure protection,overload protective switch,antifreeze switch,time delay protection,over-temperature protection,over-current protection. |
||||||
|
|
||||||
Dimension |
(CM) |
98x50x85 |
162x60x136 |
172x70x136 |
206x85x138 |
220x85x138 |
245x93x145 |
1 Plywood case and film
2 According to customer's requires
Pre-sale service :
1 provide detailed information, picture, video & quotation for customer;
2 free testing
3 Professional suggestions
After-sale service:
1 Our engineer is available to service machinery overseas.
2 The guarantee period of our product is one year.(except damageable and artificial).
GuangzhouJiayin Machinery Pte.,Ltd.(Primitive name:Guangzhou Mikasa Machinery Pte., Ltd) is one of the pioneers in auxiliary plastic forming equipment industry in China,specializing in research,design,manufacture and distribution of and service for such equipment with the technology andexperience accumulated about 30 years.
Our products include crushers,grinders,rubber cutters,dryers,dehumidifiers,suction machines,color mixers,mould temperature controllers,water chillers,color master batch propor.wire recycling machine..more
How about the quality of your product?
- Our products manufactured strictly according to national and international standard.
- We have CE ,ISO certification
- We take a test on every product before delivery.
How about price of this product?
- We can give the lowest price than market one.
- We do quotation as soon as possible for any customer.
- Discount can be given according to quantity.
What is the mini quntity?
- We do quotation as soon as possible for any customer.
If you can be custom-made?
- We can make products according to customer's requiments.
What is the voltage?
- 30V 50hz 3 phase.(we can change it according to customer's requires,changing fee)
