Specifications
clean,eco-friendly,energy saving boothcompective price
easy for transporting
good quality water curtain booth
water spray
1.Performance characteristic:

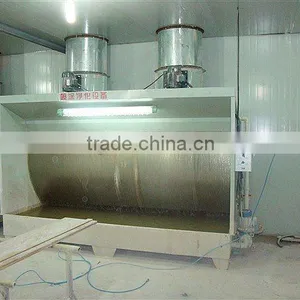

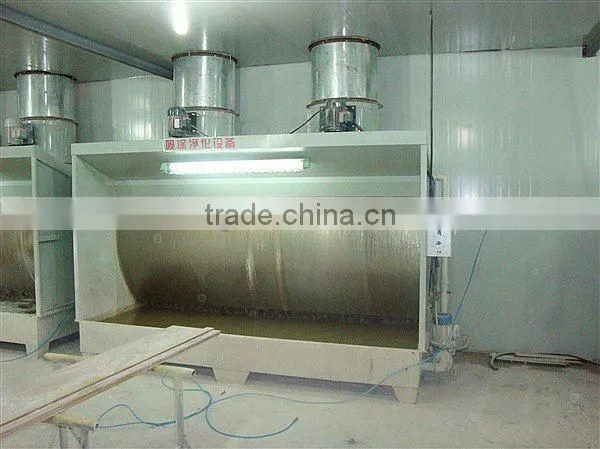

Water Spray Booth is a equipment of recycling and handling paint waste that were discarded during painting. Construction is a pool at the bottom, painting room at the front and spray chamber at the rear.
2.Working theory:
With pump as power for water circulation and spray, it will be water curtain on one side or three side in the painting room, and be spray in the spray room. The redundant painting spray that produced during painting will flow down with the water curtain when meeting the water curtain, others are took by exhaust fan, washing again when through spray room, to ensure the air that released to outdoor to meet the environmental requirements.
3.Technique parameter
Kx-5600B
Cabinet system |
Wallboard and water tan |
Made of cold plate,processing paint on the surface,with bolt connecting. |
Baffle |
stainless steel |
|
Exhaust Air System |
2.2kw pipe explosion-proof axial flow fan for exhaust air. |
|
Control system |
Powder switch,emergencyswitch,light switch,fan switch,pump switch. |
|
Pump |
inline pump,1.1kw each. |
|
Lighting |
Philips tube,36w each. |
|
Demension |
According to customer’s requests. |
|
Size for KX-5600A |
Size for KX-5600B |
||
Outside dimensions(mm) |
Inside dimensions(mm) |
Outside dimensions(mm) |
Inside dimensions(mm) |
4000(L)*2500(D)*2600(H) |
3900(L)*1550(D)*2000(H) |
4000(L)*1500(D)*2600(H) |
3900(L)*400(D)*2000(H) |
3000(L)*2350(D)*2600(H) |
2900(L)*1400(D)*2000(H) |
3000(L)*1400(D)*2600(H) |
2900(L)*400(D)*2000(H) |
2500(L)*2250(D)*2600(H) |
2400(L)*1300(D)*2000(H) |
2500(L)*1500(D)*2600(H) |
2400(L)*350(D)*2000(H) |
2000(L)*2150(D)*2500(H) |
1900(L)*1200(D)*1900(H) |
2000(L)*1400(D)*2500(H) |
1900(L)*350(D)*1900(H) |

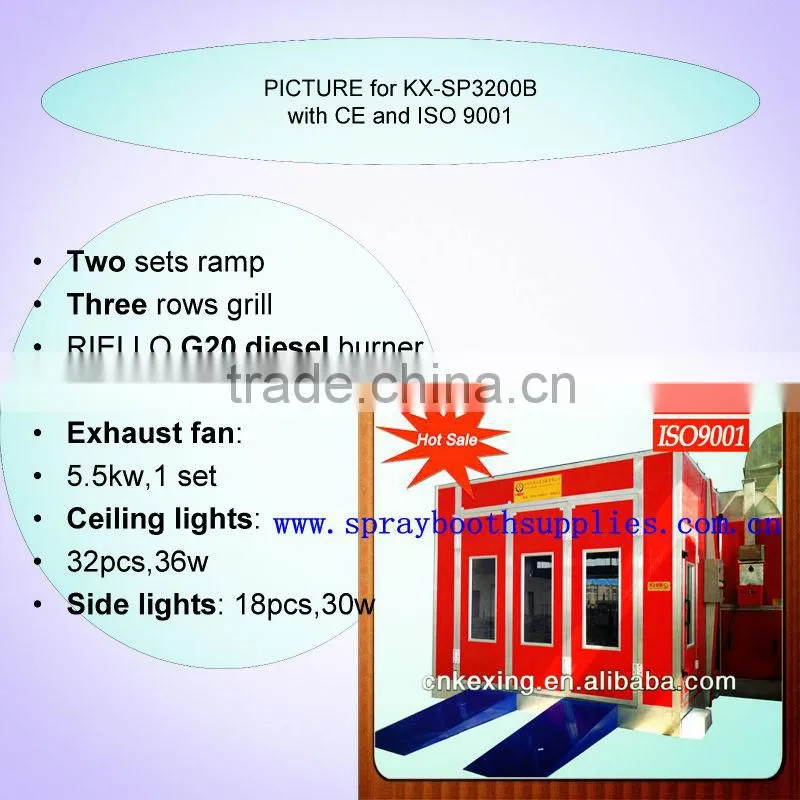

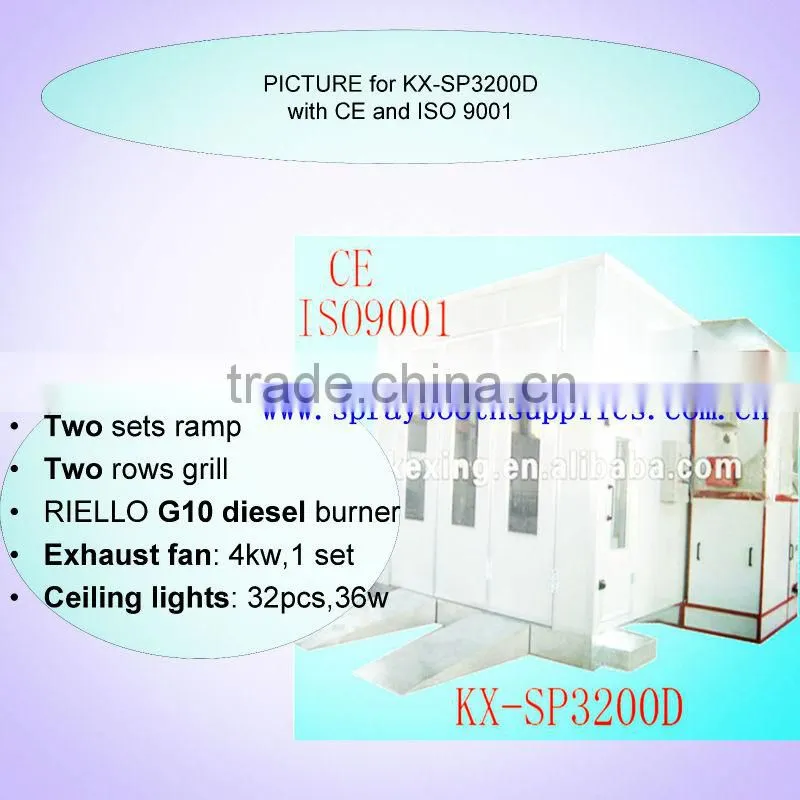

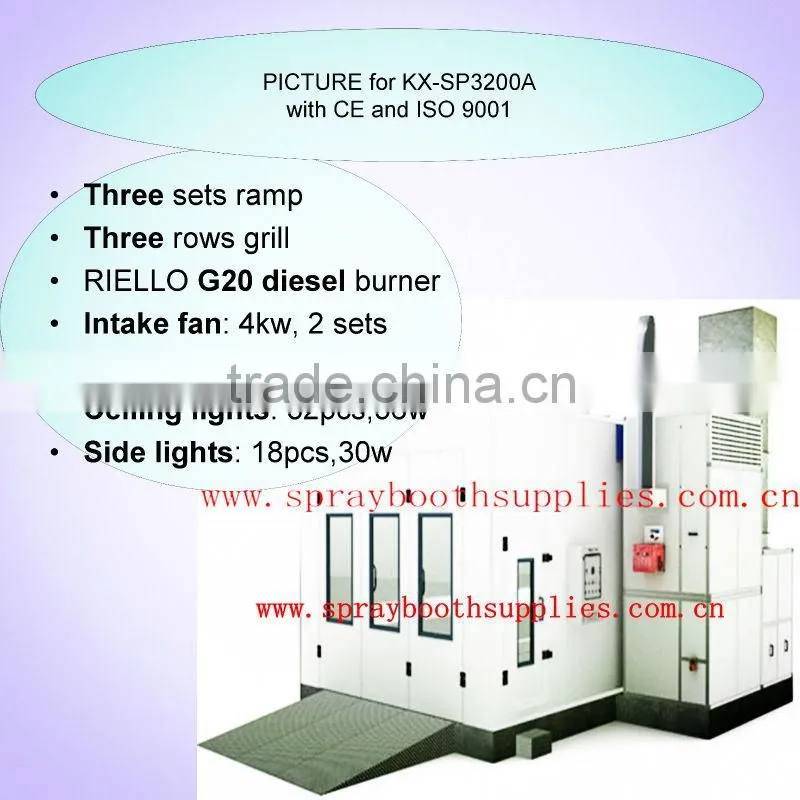

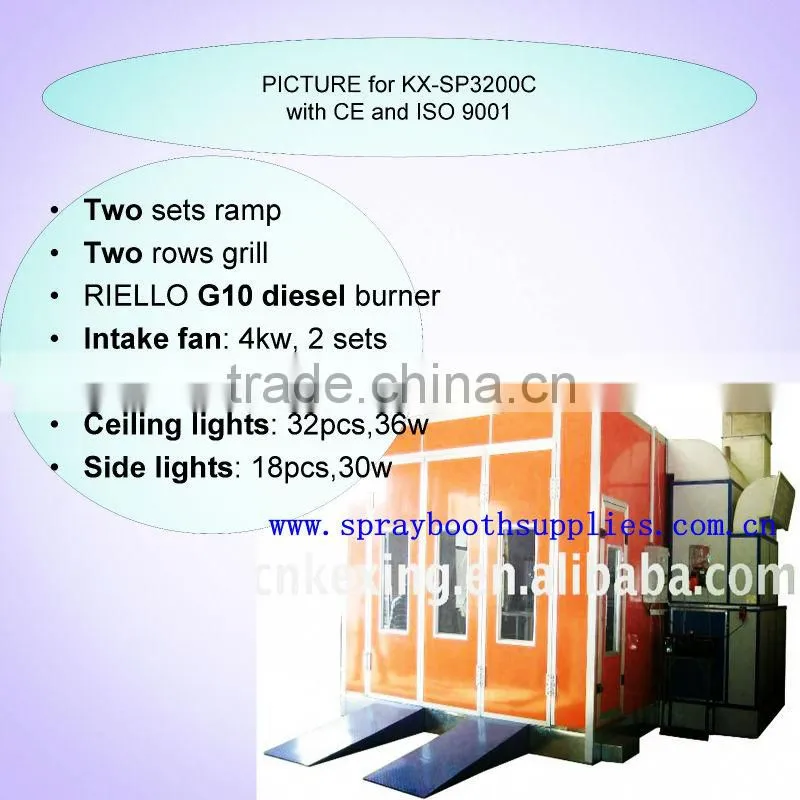

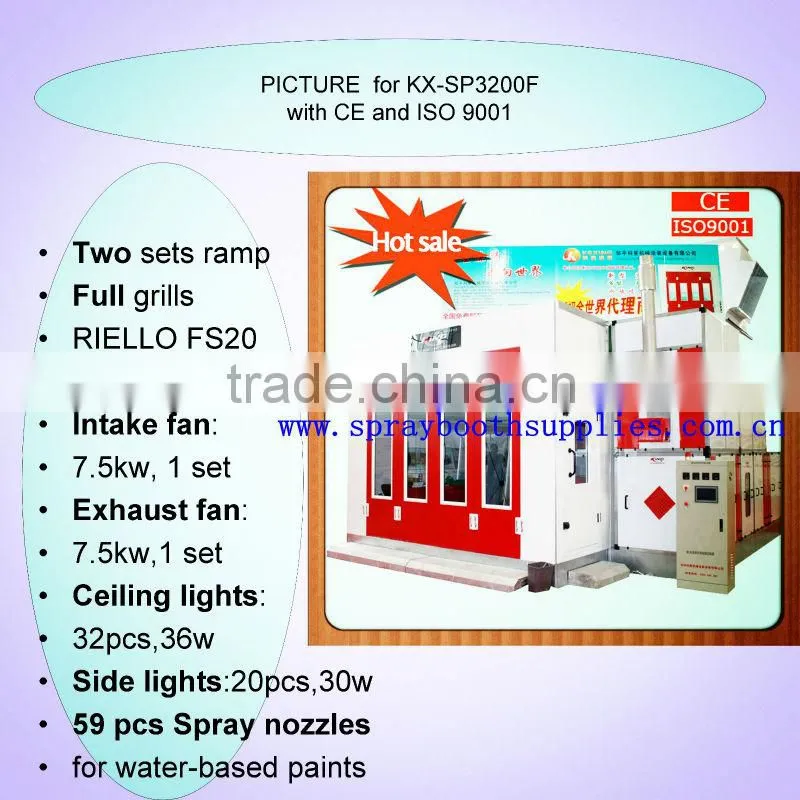

OUR latest car spray booth

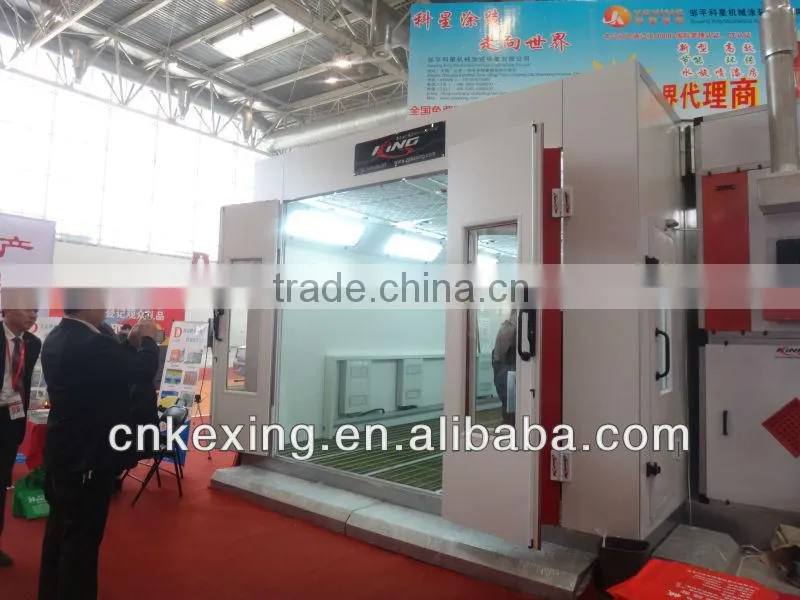

and attended exhibition in beijing
1. we are factory manufacturer;
2. the company got ISO9001 certificate;
3. the products get CE certificate;
4. the burner both are italy RIELLO burner;
5. over 20 years experience;
6. have export experience;
7. we have stock for the goods;
8. the gun have 3-year warranty period.
