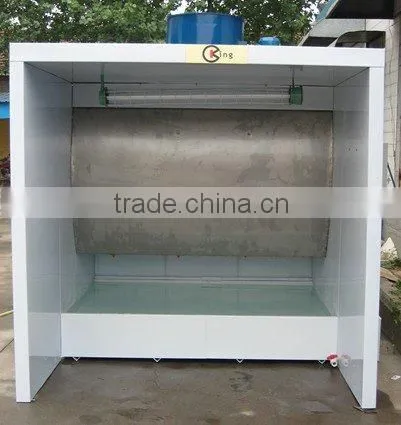

Help CenterKX-4100B Furniture Spray Booth
Related Products
Specifications
Water Curtain Spray BoothReliable quality and after-sales service
Easy operation
Specific design booth
environmental booth
Water Curtain Spray Booth
Reliable quality and after-sales service
Easyoperation & environmental booth
Specific design booth

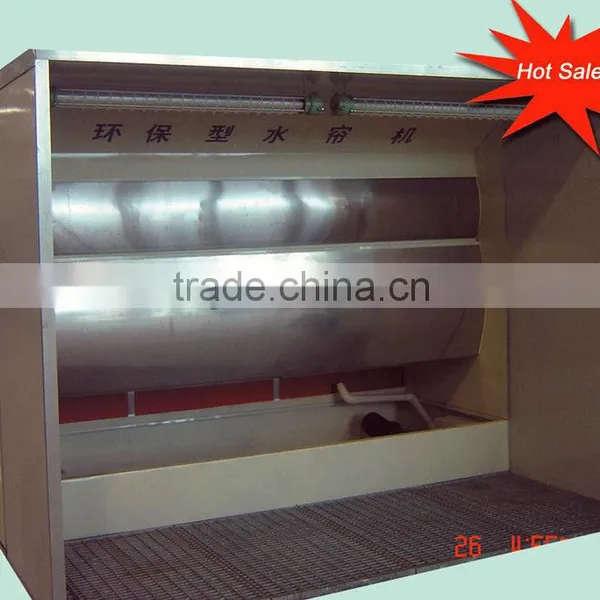

BRIEF INTRODUCTION OF WATER CURTAIN SPRAY BOOTH
Performance characteristic |
Water Spray Booth is an equipment of recycling and handling paint waste that were discarded during painting. Construction is a pool at the bottom, painting room at the front and spray chamber at the rear. |
||
Working theory |
With pump as power for water circulation and spray, it will be water curtain on one side or three sides in the painting room, and be spray in the spray room. The redundant painting spray that produced during painting will flow down with the water curtain when meeting the water curtain, others are took by exhaust fan, washing again when through spray room, to ensure the air that released to outdoor to meet the environmental requirements. |
||
Technique parameter |
Cabinet system |
Wallboard and water tan |
Made of cold plate, processing paint on the surface, with bolt connecting |
Water curtain |
stainless steel optional |
||
Type |
Water curtain painting booth(booth of painting with water curtain |
|||
Brand |
King |
|||
Model no. |
KX-5600A |
KX-5600B |
||
Production Capacity |
100 SETS PER MONTH |
100 SETS PER MONTH |
||
Voltage |
AS REQUIRED |
AS REQUIRED |
||
Power |
AS REQUIRED |
AS REQUIRED |
||
Place of Origin |
CHINA |
CHINA |
||
Picture |
|
 |
||
Size |
Optional |
Optional |
||
Cabin Material |
Made of cold plate, processing paint on the surface, with bolt connecting. |
|||
Pump |
1 sets |
1 set |
||
Circulation system |
Fan |
Fan |
||
Weight |
1000KGS |
1200KGS |
||
Warranty |
12 MONTHS |
12 MONTHS |
||
Size(inner ) |
Inner dimension |
Outer dimension |
Inner dimension |
Outer dimension |
2000mm height |
4000(L)*2500(D)*2600(H) |
3900(L)*1550(D)*2000(H) |
4000(L)*1500(D)*2600(H) |
3900(L)*400(D)* 2000(H) |
3000(L)*2350(D)*2600(H) |
2900(L)*1400(D)*2000(H) |
3000(L)*1400(D)*2600(H) |
2900(L)*400(D)* 2000(H) |
|
1900mm |
2500(L)*2250(D)*2600(H) |
2400(L)*1300(D)*2000(H) |
2500(L)*1500(D)*2600(H) |
2400(L)*350(D)* 2000(H) |
2000(L)*2150(D)*2500(H) |
1900(L)*1200(D)*1900(H) |
2000(L)*1400(D)*2500(H) |
1900(L)*350(D)* 1900(H) |
