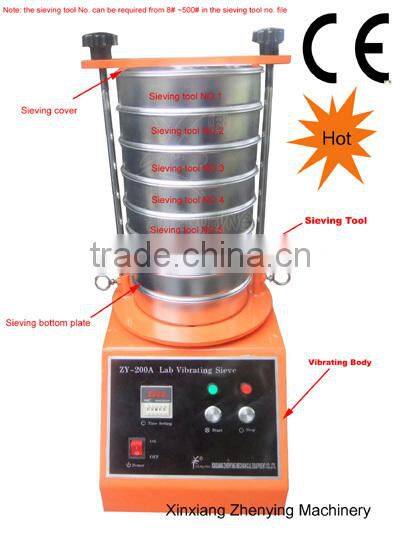

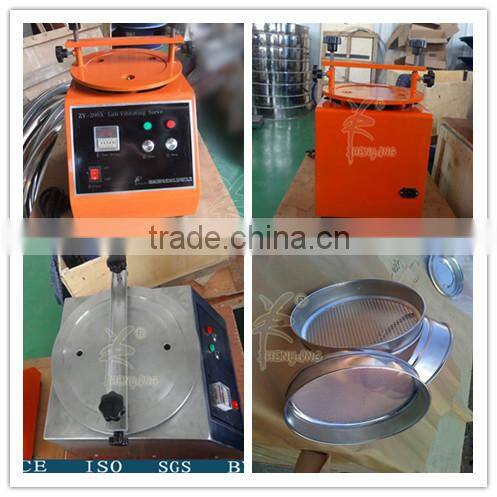

Zhenying ZY-200 Lab Test Sieve Vibration
Descriptions:
ZY200 lab test sieve vibration is used for grading of powder and granules, as well as filtration of liquid, which is mainly applied in lab, quality controlling room to precise analysis of granularity structure for granules and powders.
Features
- Low noise;
- High efficiency;
- High precision;
- Low consumption
Advantages
1. Up-to-date special dynamic generator provides high frequency vibration to sieve samples efficiently;
2. Standard screen frame guarantees precise analysis of sample;
3. Set sieving time for same materials though electro delay system to make sure consistency of analysis data and minimize error, so as to determine the quality of products accurately.
Name |
Unit |
Data |
|
Layers |
layer |
1--8 |
|
Diameter |
mm |
Φ200 |
|
Granularity |
mm |
0.038-3 |
|
Noise |
dB |
≤50 |
|
Input quantity (once) |
g |
≤200 |
|
Amplitude |
mm |
≤5 |
|
Motor |
Voltage |
v |
220 |
Rotation speed |
r/min |
1420 |
|
Power |
Kw |
0.125 |
|
FAQ
Please provide the following information to help us recommend a right machine for you:
1.material to be processed?
2.using purposes:to grade or to remove dusts?
3.granule size of material? Or mesh number?
4.moisture content if any?
5.granule size proportion if possible to get?
6.capacity(tons or kg or litter per hour or day)?
7.local power supply(voltage and frequency)?
Other products
Our Service
1.Installation,Debugging:Provide installation files, technical data and related soft copies or videos etc to ensure customer could install and debug by themselves.
2.warranty:The provider guarantee the vibrating screen could meet production technical standard and performance requirements indicated in the contract, 24 months for the machine after delivery ,12 months for the motor after delivery.
3.Technical Support:Our company will make occasional call to find problems and solve them in time.Provide technical support timely.
4.Response Time(24 hours):Contact us through Telephone or Email, we will respond within 24 hours.
