Hi,welcome to visit our Wheat Seed Gravity Separator Machine . This is Alma from Xinxiang
Zhenying Mechanical Equipment Co.,Ltd,a professional manufacturer for Gravity Machine.
Welcome to visit our factory at any time.
Address:No.1018,South of Xinfei Road,Xinxiang City,Henan Province-453000,China
Introduction:
Gravity separator is used to separate seed and grain with same size but difference in specific
weight. By air aspiration and sieve oscillation, seed is fluidized and stratified. Heavy seed sink
into the sieve bottom layer, while light seed suspend to the top layer. After stratified, seed go
forward to the discharging part. Bottom layer good seed and mixture quality seed fall through
the sieve discharge from different outlets successively. Top light seed with bad quality was
discharge directly. Mixture quality seed in the middle layer fall through sieves and return back
by vibrate feeding gear.

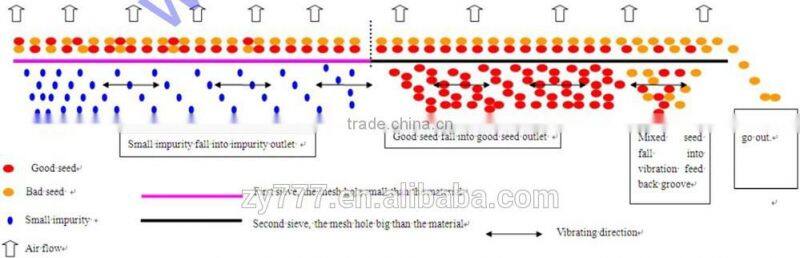

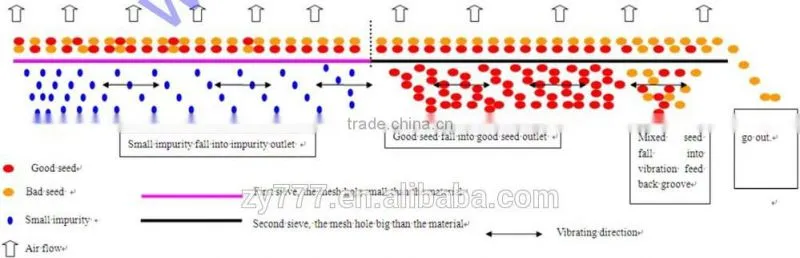

Principle
Techincal data
Material |
Carbon steel |
Dimension(L*W*H)(mm) |
4000×1800×2750 |
Capacity (kg/h) |
3000 |
Weight (kg) |
1100 |
Power (kw) |
4.25 |
Non-fumigation plywood case/container/as customers' demand.
Have special requipments, can tell us, like "made in China" spray on the case.
1.Installation,Debugging.
Provide installation files, technical data and related soft copies or videos etc
to ensure customer could install and debug by themselves.
2.warranty
The provider guarantee the vibrating screen could meet production technical
standard and performance requirements indicated in the contract, warranty:
24 months for the machine after delivery ,12 months for the motor after delivery.
3.Technical Support
Our company will make occasional call to find problems and solve them in time.
Provide technical support timely.
4.Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.
1.Past through the CE&ISO9001:2008
2.One of 10 Henan E-businessmen.
3.Excellent Equipment Manufacturer of China.
Your success is our business!
