Specifications

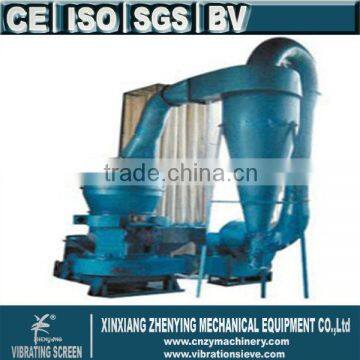

High-pressure ultra-fine grinding machine1.High efficiency
2.Reliable transmission
3.Lower power consumoption
4.Save cost
Hi,welcome to visit our high-pressure ultra-fine grinding machine.This is Alma from Zhenying Machinery of China,a professional manufacturer for grinding machine,vibrating screen
and the related machinery with ISO.
High-pressure ultra-fine grinding machine is manufacture by expert in our company in many years based on the production of industrial mill, the use of fluid mechanics, painstaking research, the new design powder mill that can be comparable with the flow, which were successful solution to the domestic super-Powder with the problem of the high cost of jet mill is a high efficiency ultra-fine grinding mill.
pared with other mills, its capacity increases by 10%-20% under the same power condition, and compression force of rollers to material improve 800-1200 kg under the force of high pressure spring.
2.the coarse size of final product can be 0.613 mm(30 mesh), the common size is 0.033 mm(425 mesh), some fine size can reach 0.013 mm(1000 mesh).
3.Extreme pressure suspension mill meets the requirement of national national dust-dump standard.
4.the separator can be adjusted very easily.
5.the multi-class seals are adopted to keep the grinding equipment tightly closed.
Model |
Roller number |
Roller size (DxH) |
Max. feed size (mm) |
Final size (mm) |
Output (t) |
Motor power (kw) |
Blower power (kw) |
Dimension (mm) |
QBM6515 |
3 |
210×150 |
12-20 |
0.613-0.033 |
0.25-1.2 |
15 |
11 |
4100x3300x4500 |
QBM7815 |
3 |
260×150 |
15-20 |
0.025-0.005 |
0.28-3 |
18.5 |
15 |
4300x3500x5100 |
QBM8314 |
3 |
270×140 |
15-20 |
0.025-0.005 |
0.35-3.4 |
22 |
18.5 |
5300x4100x5200 |
QBM3016 |
3 |
300x160 |
15-20 |
0.025-0.005 |
0.35-4 |
30 |
22 |
5300x4100x5200 |
QBM9517 |
4 |
310×170 |
15-25 |
0.025-0.005 |
1.5-8 |
37 |
30 |
7100x5900x7900 |
QBM4121 |
5 |
410×210 |
15-25 |
0.613-0.044 |
4-10 |
75 |
55 |
7850x8000x9700 |
QBM4528 |
6 |
450×280 |
15-35 |
0.613-0.044 |
5-22 |
132 |
132 |
12550x5700x8300 |
