Hi,welcome to visit our ZY Inclined spiral conveyor for conveying food powder.
This is Alma from Xinxiang Zhenying Mechanical Equipment Co.,Ltd,a professional manufacturer for conveyor, vibrating screen, filter machine and the related machinery.
Welcome to visit our factory at any time.
Address:No.1018,South of Xinfei Road,Xinxiang City,Henan Province-453000,China
Description
Stainless Steel Screw Conveyor are of simple, relatively low cost construction compared to other
conveyor systems.
Stainless Steel Screw Conveyor consist of a helical flight fastened around a pipe or solid shaft,
mounted within a tubular or U-shaped trough.
As the screw rotates,material heaps up in front of the advancing flight and is pushed through the trough.
Particles in the heap next to the flight surface are carried part way up the flight surface, and then flow
down on the forward-moving side of the heap.
Products can be conveyed and elevated at the same time by mounting a screw conveyor at an incline.
This is often desirable because it covers two operations with one piece of equipment therefore saving space and reducing downtime,maintenance cost, etc.
A standard screw conveyor will often operate normally at angles up to 15º with only a small loss in capacity.
Beyond that, adjustments and/or modifications are typically necessary.
Advantage |
|
Tighter clearance between the screw and trough: This is especially true with granular,free flowing products such as dry, refined sugar. Higher screw speed: This increases the product’s forward momentum and reduces fallback. Shorter pitch screw flighting: This improves the relative angle between the each flight and the conveyed product. Use of tubular trough or shrouds: Both act in the same way to surround the screw and prevent product from falling back over the top which tends to occur more as speed is increased. 1.Economical 2.Low maintenance 3.Multiple discharge locations 4.Easy to install 5.Quiet operation 6.No return run 7.Multiple configurations and applications 8.Various materials of construction 9.Can operate on inclines 10.Sanitary construction is available 11.Readily available / minimal lead times 12.Screw feeder for volume control 13.Standardization of parts
|
Design Considerations | ||||||||||||||||||||||||||
|
Stainless Steel No-clogging Screw Conveyor In designing a ZMECO Stainless Steel Screw Conveyor for a specific purpose, many questions must be answered in order to achieve optimal performance. Information needed would be: In answering those questions, the screw conveyor can then be designed with the appropriate metal, diameter, pitch, length, and trough and motor requirements. | ||||||||||||||||||||||||||
Technical Parameter | ||||||||||||||||||||||||||
| ||||||||||||||||||||||||||
|
special design is available
| ||||||||||||||||||||||||||
Application: | ||||||||||||||||||||||||||
|
Non-fumigation plywood case/container/as customers' demand.
Have special requipments, can tell us, like "made in China" spray on the case.
Mainly manufacture conveyor, vibrating screen(linear/round rotary sieve shaker,vibrator
screen with ultrasonic ,tumbler rotary sieve,flow through filter sieve machine etc),feeder,
crusher and related products(magnetic separator) etc.
1.Past through the CE&ISO9001:2008
2.One of 10 Henan E-businessmen.
3.Excellent Equipment Manufacturer of China.
FAQ:
Would you like to provide the following information to choose a right model for you:
1.What do you want to convey? (Could you send us a picture?)
2.What about capacity (kg/h) you need?

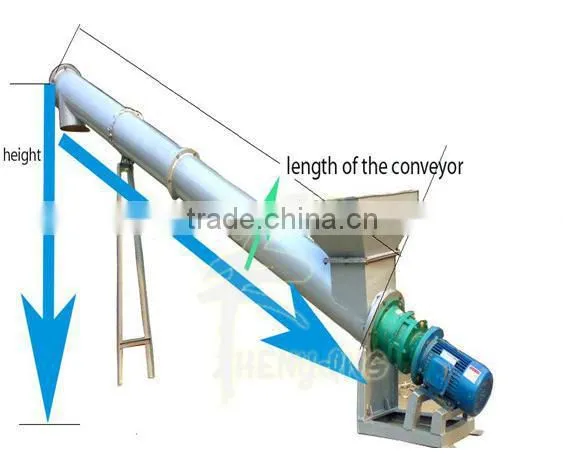

3.The conveyor you need is inclined or horizontal? if inclined, what's the angle of the conveyor?
if vertical ,how about the height of the conveyor?
4.What's the material of the conveyor you need, contacting part is 304/316 stainless steel or fully carbon steel?
Your success is our business!
