Z Shape Salt/sugar Inclined Belt Conveyor

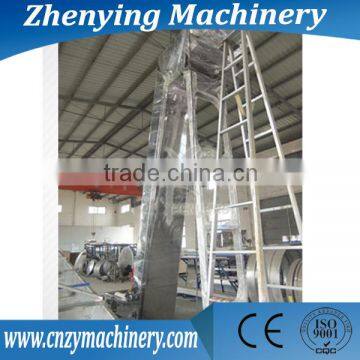

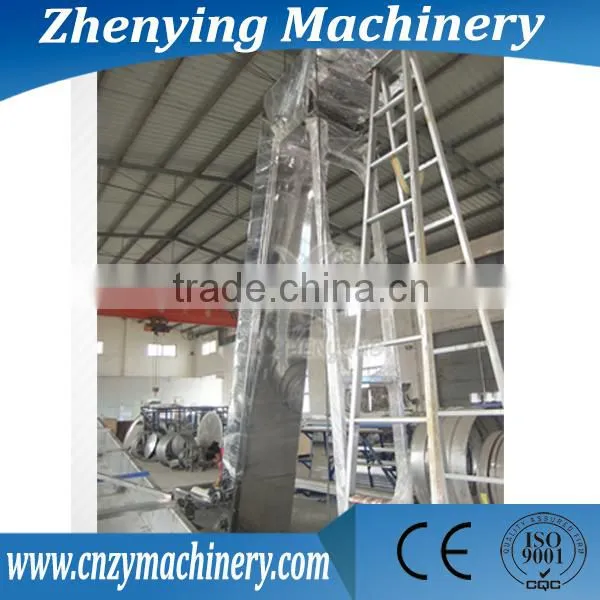

Z Shape Salt/sugar Inclined Belt Conveyor photo-1
US$ 850 - 3,600 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, inclination coneyor
Material:
Rubber
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin or Qingdao or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, inclination coneyor
Material Rubber
Material Feature Heat Resistant
Structure Belt Conveyor
Load Capacity 100KG-800KG
Place of Origin Henan, China
Brand Name Zhenying sugar inclined belt conveyor
Model Number ZY 69 sugar inclined belt conveyor
Voltage 220V/380V/415V or others
Power(W) 0.4kW - 22kW
Dimension(L*W*H) Specific Models
Certification ISO9001:2008/CE
After-sales Service Provided Engineers available to service machinery overseas
Description
Z-shape conveyor is gluing freely retractable rubber waveform vertical "skirt"
on both sides of flat-shaped rubber conveyor belt ,and sticking with a certain
strength and elasticity of the crossbeam between the skirts to composite box shaped bucket,
so that the material is continuously transported in the bucket.
Conveying angle is 0 ~ 90 ° (70 °or less is best), Currently, belt width of Z-shape conveyor
we mainly produce are: B500, B650, B800, B1000, B1200, B1400, B1600.



Application



Z-shape conveyor can be widely used in coal, food, building materials, chemicals, hydro-power
and metallurgical etc. It conveys all kinds of bulk materials which are in condition of the
ambient temperature is within the range of -19 ℃ ~ + 40 ℃, transporting bulk specific gravity is within 0.5-2.5t / m³. Conveying high temperature, acid-base materials, oil or organic solvents and other ingredients requires the use of special sidewall conveyor belt material, our company can customize
special large angle belt conveyors according to your needs.

 Feature

1. Especially suitable for high lifting height occasion.

2. Large transport capacity

3. Prevent the material scattered

4. Short delivery distance, small space required, convenient process layout,

5. Reduce the scale of infrastructure, cost-saving etc.



Technical Parameters
