Large Capacity Vertical Lift Conveyor for Grain

Large Capacity Vertical Lift Conveyor for Grain photo-1

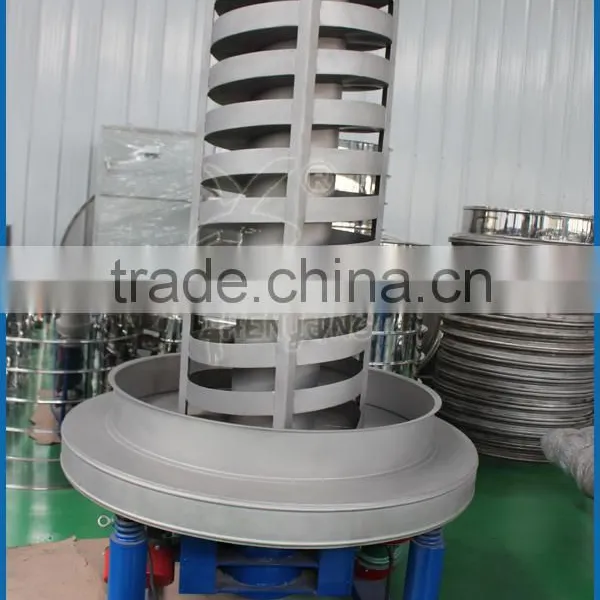

Large Capacity Vertical Lift Conveyor for Grain photo-2
Large Capacity Vertical Lift Conveyor for Grain photo-3
Large Capacity Vertical Lift Conveyor for Grain photo-4

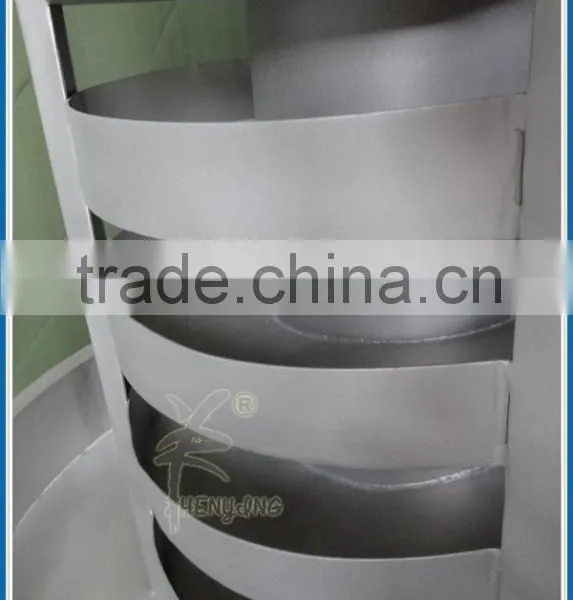

Large Capacity Vertical Lift Conveyor for Grain photo-5

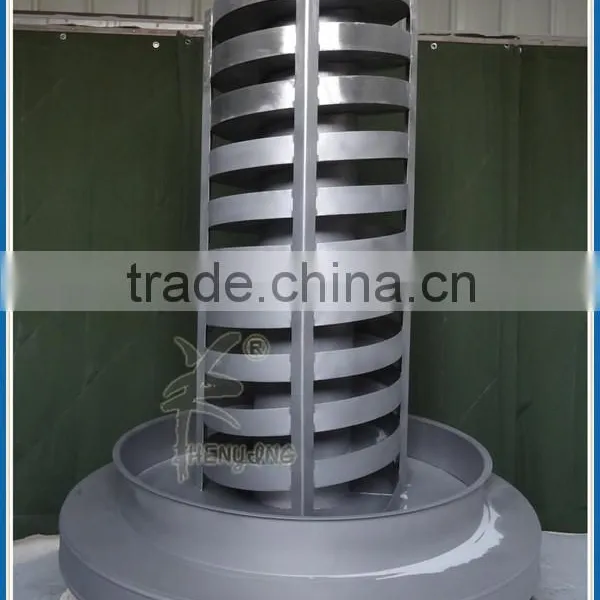

Large Capacity Vertical Lift Conveyor for Grain photo-6
US$ 1,360 - 6,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Screw Conveyor
Material:
Stainless Steel
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/tianjin/qingdao part of China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Screw Conveyor
Material Stainless Steel
Material Feature Heat Resistant
Structure Conveyor System
Load Capacity 5000kg
Place of Origin Henan, China
Brand Name ZY vertical lift conveyor
Model Number CS vertical lift conveyor
Voltage 220v /380v/440v adjustable
Power(W) 4.8-6kw
Dimension(L*W*H) AS YOUR REQUIREMENT
Certification CE&ISO
After-sales Service Provided Engineers available to service machinery overseas

Large capacity vertical lift conveyor for grain

Large capacity vertical lift conveyor for grain

Hi,welcome to visit our Large capacity vertical lift conveyor for grain. This is Alma from Xinxiang

Zhenying Mechanical Equipment Co.,Ltd,a professional manufacturer for conveyor, vibrating screen,

filter machine and the related machinery.

Welcome to visit our factory at any time.

Address:No.1018,South of Xinfei Road,Xinxiang City,Henan Province-453000,China

Large capacity vertical lift conveyor for grain

Brief Introduction

CS series vertical conveyor can be designed to classify the granules as well as conveying,

and deal with flammable and explosive materials according to different process requirements.



Features

Reasonable and simple structure, easy maintenance, low power consumption, low noise.

This equipment occupies very little room, and the totally sealed structure can effectively

avoid the dust and the harmful gas pollution.



Application

CS series vertical conveyor is applicable to materials of powder, block and short fibre,

and widely used in chemical industry, rubber, plastic, medicine, light industry, metallurgy,

building material, machinery, mine, food and other industries. The materials not only can be

lifted,but also can be dried and cooled during the process of lifting.

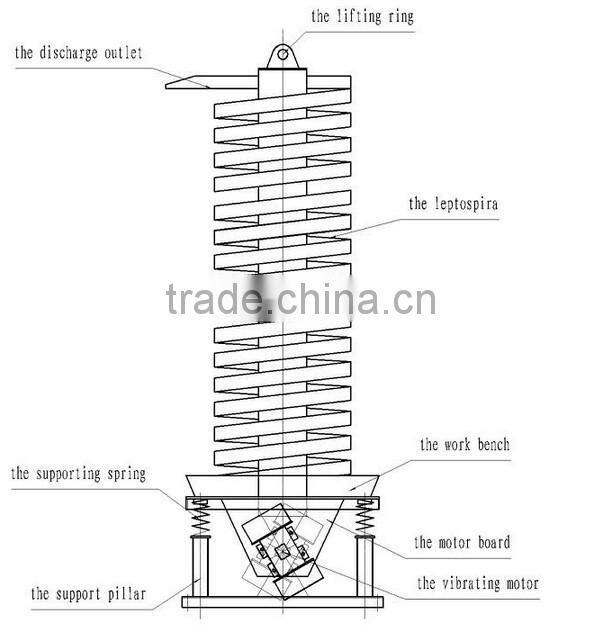

Structure

There are two main types:open type and sealed type.

Large capacity vertical lift conveyor for grain



Technical Parameter



CS-1250

CS-2000

CS-3500

CS-4500

CS-6000

Troughtput(t/h)

0.3

0.6

3

4

2

Conveyor Height(mm)

1250

2000

3500

4500

6000

Diameter of spiral groove (mm)

220

321

631

631

503

Working Frequency (times/min)

1500

1500

1000

1000

1000

Power(kw)

×0.1

2×0.2

2×0.75

2×1.5

2×1.5

Supply Voltage(V)

380

380

380

380

380

Rated Current(A)

2×0.4

2×0.8

2×2.2

2×4.1

2×4.1

Synthetic Amplitude(mm)

-4

-4

-4

-4

-4

Large capacity vertical lift conveyor for grain
Packaging & Shipping

Non-fumigation plywood case/container/as customers' demand.

Have special requipments, can tell us, like "made in China" spray on the case.

Large capacity vertical lift conveyor for grain

Our Services

1.Installation,Debugging.

  Provide installation files, technical data and related soft copies or videos etc

  to ensure  customer could install and debug by themselves.
2.warranty
  The provider guarantee the vibrating screen could meet production technical

  standard and  performance requirements indicated in the contract, warranty:

  24 months for the machine  after delivery ,12 months for the motor after delivery.
3.Technical Support
  Our company will make occasional call to find problems and solve them in time.

  Provide  technical support timely.
4.Response Time(24 hours)
  Contact us through Telephone or Email, we will respond within 24 hours.

Large capacity vertical lift conveyor for grain

company information

Mainly manufacture conveyor, vibrating screen(linear/round rotary sieve shaker,vibrator

screen with ultrasonic ,tumbler rotary sieve,flow through filter sieve machine etc),feeder,

crusher and related products(magnetic separator) etc.

Large capacity vertical lift conveyor for grain

1.Past through the CE&ISO9001:2008
2.One of 10 Henan E-businessmen.
3.Excellent Equipment Manufacturer of China

Large capacity vertical lift conveyor for grain

Large capacity vertical lift conveyor for grain

Large capacity vertical lift conveyor for grain

FAQ

In order to help you choose a suitable model, please kindly confirm the following

information:

1.What do you want to convey? (Could you send us a picture?)
2.What about capacity (kg/h) you need?
3.How about the height of the conveyor?
4.What's the material of the conveyor you need, contacting part is 304/316 stainless steel or full carbon steel?

5.The 220v/50Hz/3phase is it ok for you?
