Company information
Xinxiang Zhenying Mechanical Equipment CO., Ltd is the professional machinery manufacturer
specialized in sieving,conveying,crushing and feeding equipment.
High quality product and service,hard-woking and cooperative spirits accelerate the growth of
Zhenying company.
With ISO9001:2008,CE Certificate,AAA credit companyand many government credits,our
products are your best choice.
Zhenying means flying eagle in Chinese,hope we can fly far away in the sky of world machinery.

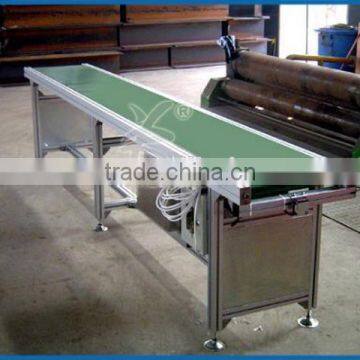

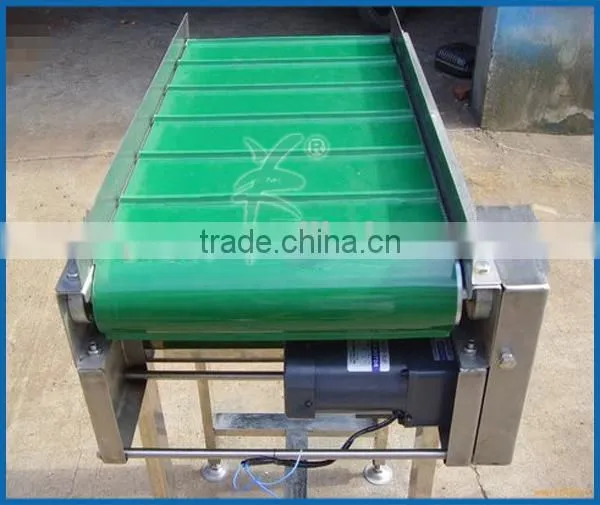

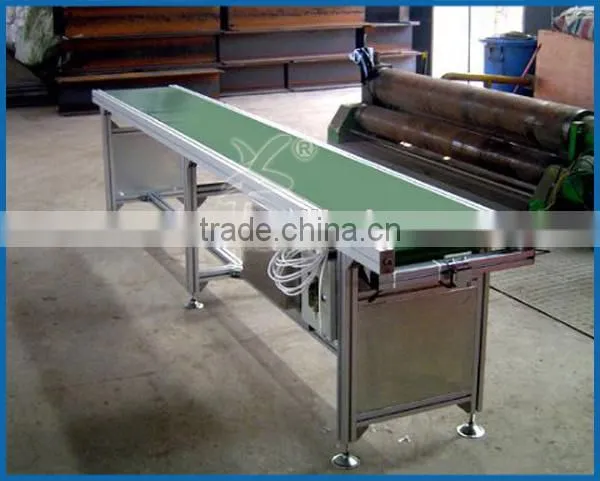

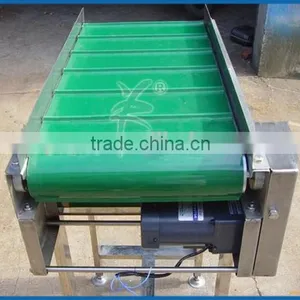

High efficiency flat belt conveyor with CE&ISO
Description
Belt conveyors are the most commonly used bulk handling conveyors in history due to their reliability
versatility,and range of capacities.Conveyor can be horizontal, tilt and vertical transmission, but also
the composition of space transmission lines,transmission lines are generally fixed. Conveyor transport
capacity, long-distance, but also in the transportation process while completing a number of process
operation, it is widely used. Main belt conveyor, plate conveyor,screw conveyor, bucket conveyor,
bucket elevator, overhead conveyors and so on.
Detail
Working principle
ZY69 Belt conveyor 's structure is in flat belt conveyor rubber conveyor belt on both sides of
the glue on the free expansion of the rubber waveform vertical "skirt", between the skirt and have
certain strength and elasticity of diaphragm plate box, in the bucket for continuous conveying of
material.
Technical parameter
Effective conveying length(m) |
10 |
15 |
Conveyor width(mm) |
500-800 |
500-800 |
Conveyor speed(m/s) |
0.8~1.6 |
0.8~1.6 |
Conveying capacity(V=1.0m/s)(m³/h) |
70~278 |
70~278 |
Rack adjustment angle(°) |
9~20 |
9~20 |
Conveying max height(mm) |
3910 |
5700 |
Conveying min height(mm) |
2000 |
2700 |
Taut route(mm) |
300 |
300 |
Motor power(kw) |
2.2~5.5 |
2.2~5.5 |
Transmission reduction ratio |
16.6 |
16.6 |
Steel cable¢12-6×19(m) |
17 |
26 |
Belt 4(3+1.5)(m) |
22 |
31.8 |
Feature

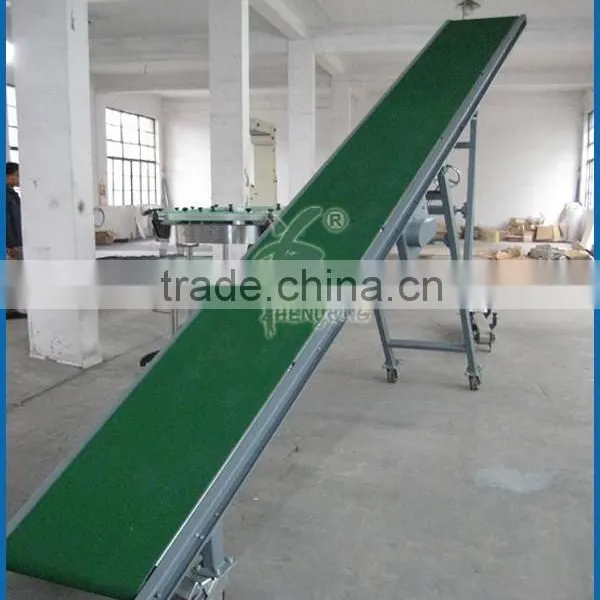

1. Using steeply inclined angle conveyor to convey loose bulk materials can save a lots
spaces and lift material at the same time that ordinary belt conveyor can not reach.
2. Big conveying capacity, it can reach 1800 cubic meters per hour.
3. When vertically conveying materials, the biggest materials granularity is 350 mm.
4. It can transit stably from level to inclination.
5. Low energy consumption, easy construction and convenient maintenance.
6. High adhesive tape strength and long life.
Our advantages
1. Our machine idle running for 48 hours before shipment.
2. 13 months guarantee for the machine,except wearing parts.
3. We have export experience more than 5 years, and passed the CE and ISO Certificate.
4. We have a professional team of engineers, support engineer on site installation and maintenance.
5. Provide the professional video and a warm, efficient, professional service.
6. The order service: during the production, all tracked by pictures.
ZY69 Belt Conveyor is suitable for harbor, mine, grain, freight yard, warehouse and other
departments,which is a kind of simple transtitions, transitions, wide application, high efficiency
transportation equipment.
Special design can tell us (like "made in China " sprayed on the case)
1.Installation,Debugging.
Provide installation files, technical data and related soft copies or videos etc to ensure customer
could install and debug by themselves.
2.warranty
The provider guarantee the vibrating screen could meet production technical standard and
performancerequirements indicated in the contract, 24 months for the machine after
delivery ,12 months for the motor after delivery.
3.Technical Support
Our company will make occasional call to find problems and solve them in time.Provide technical
support timely.
4.Response Time(24 hours)
Contact us through Telephone or Email, we will respond within 24 hours.
Certification
Please provide the following information to help us recommend a right machine for you:
1.material to be processed?
2.using purposes:to grade or to remove dusts?
3.granule size of material? Or mesh number?
4.moisture content if any?
5.granule size proportion if possible to get?
6.capacity(tons or kg or litter per hour or day)?
local power supply(voltage and frequency)?
Welcome to contact us
Neil
A: No.1018 South of Xinfei Road, Xinxiang, Henan ,China
T: +86-0373-5031 958(24 hours online for you)
M:+86 1823 8795 416
F: +86-0373-3532 217
QQ: 3047711785
Skype: cnzymachinery005
Web Site:
