Help CenterZY69 Carbon Steel Powders Inlet and Outlet Conveyor
Related Products
-
High Efficiency Flat Belt Conveyor With CE&ISOUS$ 1,000 - 10,000MOQ: 1 Set -
Hot Sale Mobile Bag StackerUS$ 1,000 - 100,000MOQ: 1 Set
-
High Efficiency and Encolsed Air Supported Belt Conveyor for GrainUS$ 10,000 - 1,000,000MOQ: 1 Set
-
Stainless Steel Tube Flexible Spiral Screw Conveyor With HopperUS$ 1,900 - 7,900MOQ: 1 Set
-
Industrial Cement Screw Conveyor With SiloUS$ 1,900 - 7,900MOQ: 1 Set
ZY69 Belt Conveyor is suitable for harbor, mine, grain, freight yard, warehouse and other departments, which is a kind of simple transitions, wide application, and high efficiency transportation equipment.
Working principle
This machine is inclined installation, mine paddle from feed inlet (inlet position defined by user)
into the tank, the tank bottom to form a settling tank, utilization of mineral particles in the
medium velocity difference, so that fine, light particles floating in the ore from the overflow
port paddle surface, discharge, while the large particles, heavy particle material is sinking
into the lake pool, a spiral to bring it to the upper part of the groove body is exit.

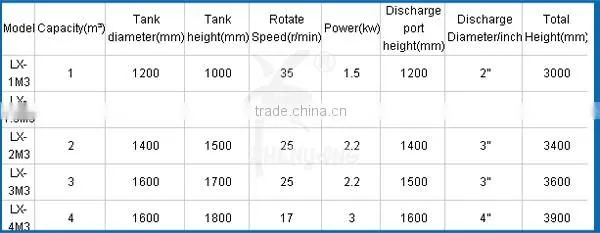

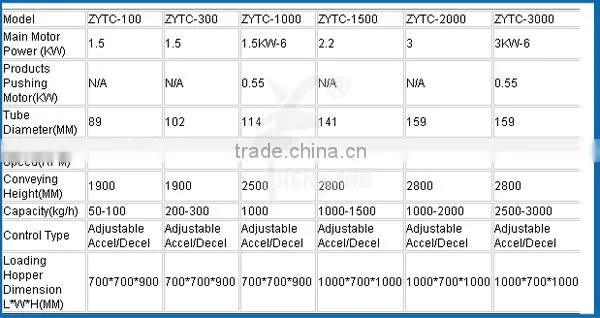

Technical Parameters

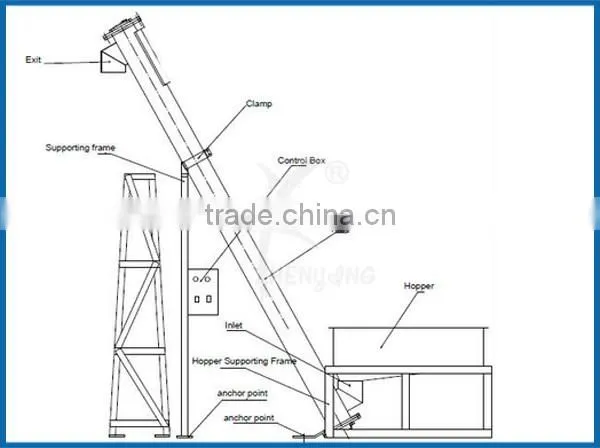

Structure
The machine consists of water tank, spiral, transmission mechanism, lifting mechanism, a lower seat, discharging valve, into the mine mouth.
1)Transmission device for spiral: work force, composed of a motor through a triangle belt, reducer, gear drives the screw drive.

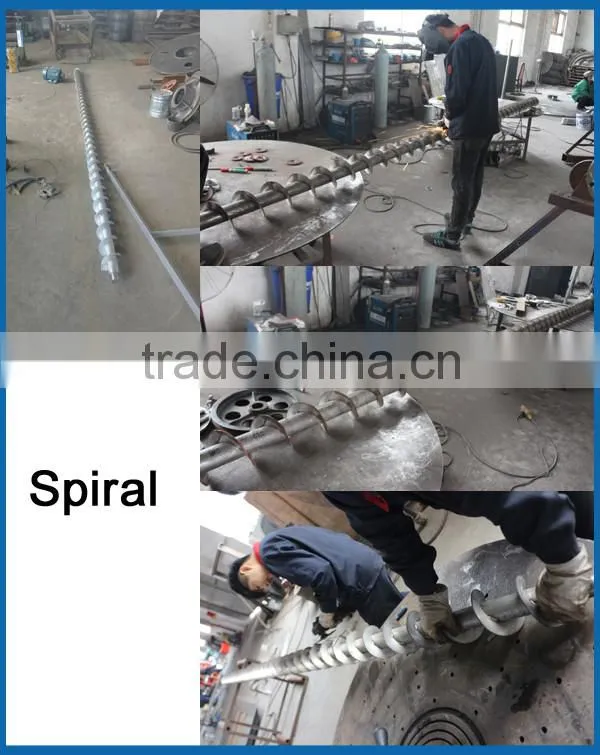

2)Spiral: child main working components, plays on mine paddle stirring and coarse mineral transport use, spindle for seamless steel pipe, is arranged on the upper end of the driving device on the frame, is arranged in the lower seat, spiral blade is supported by the support.
3)Body: for the machine body, composed of various types of steel, welded steel.
4)Lifting mechanism: its role is when open the machine shutdown will spiral shaft lifting and lowering. According to different specifications, by manually or motor driven to complete the lifting operation.
Type FG-12 and type FG-20 for the motor drive, the remaining models for manual actuation. Driven by a motor, in order to protect the machine in the safety of operation of special provided with travel agencies,
by the user on the installation machine to connect with.
5)Lower support: its role is to support the spiral.
6)Discharging valve: for when necessary to exclude a tank body of ore paddle and setting, in the normal production time to tightly seal.

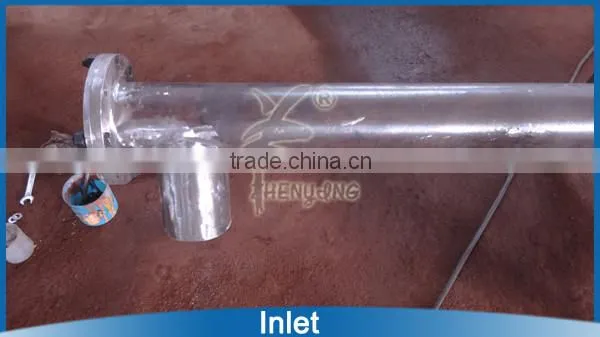

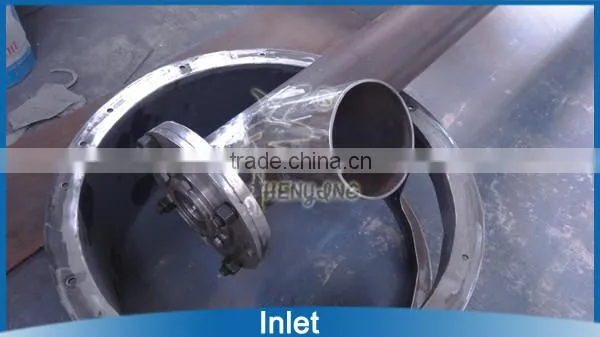

7)The mine inlet: by the user according to the actual needs of decision.
Quality
a. We have 8 years export experience to different countries
Until now have no problems for machines.
b. Good polishing and welding for the stainless steel AISI304
c. UBC brand bearing for the vibration motor.
d. Silica gel as sealing ring as food industry
Service
e. Our engineer can customize the free drawings for you.
f. The machine make the idle running for 48 hours before shipment. Quality is first.
g.The warranty is 13 months after delivery (except for the quick wear spares, eg: spring)
h. We will send you the production picture before shipment.
Instant message :QQ :528837994,Skype:cnzymachinery003
Cell phone/whatsapp/Viber:+86 13781997628
