Universal remote control single-board computer AT91SAM9263

FOB Price

USD $100 - $289 / Piece

1 Piece(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai/Ningbo
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Chipset Manufacturer:	Other, ATMEL	Memory Type:	SDRAM	Graphics Card Type:	Integrated
Hard Drive Interface:	SATA	Brand Name:	QY	Model Number:	QY-9263S
Place of Origin:	Zhejiang, China

Product Description

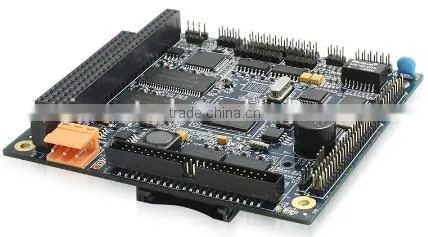

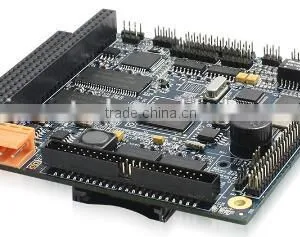

Universal remote control single-board computer AT91SAM9263

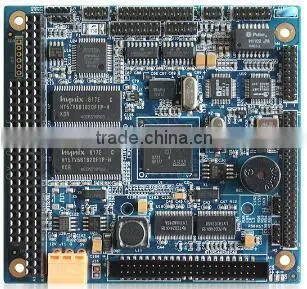

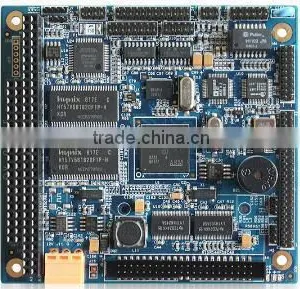

QY-9263S Mainboard is designed by 8-floor PCB; On-board CPU, SDRAM, NandFlash, DataFLash; with commonly used interfaces, such as TFT-LCD, touch screen, network, SPI, PWM, CAN, timer, matrix keypad, IDE, high-speed USB HostDevice, SD card, RS232485 serial port, audio, etc.

Universal remote control single-board computer AT91SAM9263 Specifications

CPU Processor
• ATMEL AT91SAM9263, ARM926EJ-S core
• With DSP expand instructions, JAVA hardware acceleration
• 200MHz

SDRAM Memory
• 64MB SDRAM, 2-piece 4Banks x 4Mbitsx16bits SDRAM

FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B)
• Could change large capacity or industrial chip according to customer's request

PCB Specification & Size
• Using eight floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 96 x 90 x 1.5mm

Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing

Low Power Consumption
• 5V Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30 + QT2.3
• Windows 5.0, WindowsCE 6.0

Universal remote control single-board computer AT91SAM9263 Software & Technical Support

No.	Item	Function
J1	Writing jumper cap	Write program to control jump line
J2	Audio signal	Audio signal input/output
J3	TFT-LCD, Touch screen	Expand color LCD screen, drive 4-wire resistive touch screen
J4	LCD power spply jump line	LCD power supply 3.3V/5.0V
J5	GPIO interface	Gnenral IO mouth
J6	Serial port	Debugging serial ports and general serial ports
J7	USB Device	Program download, USB communication
J8	USB Host 1&2	USB 2.0 host application
J9	IDE interface	connect IDE devices
J10	MISC composite interface	SPI, PWM, timer
J11	Power interface	+5V Dc power supply
J12(back)	SD card interface	Stable and portable storage application
J13	Ethernet interface	10M/100M self-adaptive network
J14	PC104 interface	Standard 8bit/16bit PC104 interface, can be stacked
J15	CPLD program download mouth	used to CPLD program download
J16	Reset pin	System reset
J17	IDE device power jump line	3.3V/5V jump line, support different IDE devices
J18	Matrix keypad interface	8 x 8 matrix keypad interface, can also used as I/O mouth
J19	CAN interface	CAN 2.0 bus application

Universal remote control single-board computer AT91SAM9263 Linux Software Features

Cross-compiler	arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2	arm-linux-gcc 4.2
U-boot	Version: U-boot 1.3.4	Provided with bootstrap, U-boot source code
	Support writing into DataFlash or NandFlash start
	Support SAM-BA software with USB writing and TFTP network update
Linux Kernel	Version: 2.6.30
	RTC driver, save and restore system time after power off	Provided with test program and source code
	CAN driver	Provided with test program and source code
	Ethernet driver	Provided with test program and source code
	Audio driver	Provided with test program and source code
	LCD driver, supporting 320240, 640480, 800600, 1024768 resolution	Provided special LCD with debug service
	Touch screen driver, supporting 4-wire resistive screen	Provided with test program and source code
	Serial driver	Provided with test program and source code
	Buzzer driver	Provided with test program and source code
	GPIO driver	Provided with test program and source code
	8*8 matrix keypad driver	Provided with test program and source code
	SPI driver	Provided with test program and source code
	PWM driver	Provided with test program and source code
	PC104 driver	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc.	Support various USB external devices, provided with debug service
	IDE driver	Support various IDE equipment
	CF card driver	Support large capacity CF card
	SD card driver	Support large capacity SD card storage
File System	Jffs2 file system	Provided with source code
QT	QT2.3 development environment	Provided with QT routine
PC Development Environment	Provided ubuntu 10.10 development environment and VM7.1.4 virtual machine	Provided with development environment build manual

Universal remote control single-board computer AT91SAM9263 Software Features

Bootloader	support writing into DataFlash or NandFlash start	Optional
Bootloader	support user-defined boot logo	Up to 1024*768 resolution 24 bmp image
BSP Source Code
BSP Open Source	RTC diver, save and restore system time after power off	Provided with test program and source code
	Registry saving, support saving registry information when electricity adjusted	Convenient for user to debug
	LCD driver, supporting 320240, 640480, 800600, 1024768 resolution	Provided special LCD with debug service
	Touch screen driver, supporting 4-wire resistive screen	Provided with test program and source code
	SD card driver, support 2-wire SD card	Biggest support 4G
	Audio driver, support audio input/output and MIC input	Provided with test program and source code
	Nic driver, 10/100M self-adaptive, can be expanded gigabit nic	Provided with test program and source code
	CF card driver	Support large capacity CF card
	IDE driver	Support various IDE equipments
	Serial driver	Provided with 232, 485 test program and source code
	support 8*8 matrix keypad, also can used as GPIO	Provided with test program and source code
	USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc.	According to user's selection, debug driver
PC Development Environment	Wince6.0: Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in Wince5.0: Provided with supporting EVC development tools, Wince 5.0 plug-in	Convenient for user to next develop

Universal remote control single-board computer AT91SAM9263

Technical Support:

• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customer's requirements(another pay)

Universal remote control single-board computer AT91SAM9263

Order Infomation

Item	QY-9263EK
Standard accessories	(1)5V/2A power supply (2)cross serial line (3) CD of DVD development (4)1-wire RS232 serial line(a trailer four)(5) 1-wire USB download line (6)Network line(7)USB expansion line(a trailer two)(8)Audio expansion line(9)exquisite packing box
DVD resources	Linux	Compilers	Cross-compiler arm-linux-gcc
		Tool software	Supporting terminal, writing, download tools
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Bootstarp, u-boot, kernal, image file of file system
		Test source code	Test routines and source codes of all interfaces
		System source code	Including bootstrap, u-boot, kernel, file system and QT source code
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
	Windows CE	Tool software	Supporting terminal, writing, download tools, sync software
		Device manual	Main components' datasheet of back plane
		User manual	About all development and use
		Image file	Firstboot, Eboot, NK image file
		Test source code	Test routines and source codes of all interfaces
		BSP package	Related BSP board-level supporting package
		SDK	Related SDK
		Schematic	Back plane's schematic in PDF format
		Packaging library	Component packaging library of evaluation board
LCD options	4.3' LCD module + 4-wire resistive touch screen +USB cable
	5.6' LCD module + 4-wire resistive touch screen +USB cable
	6.4' LCD+ 4-wire resistive touch screen + USB cable + inverter
	7' LCD module + 4-wire resistive touch screen +USB cable
	8' LCD module + 4-wire resistive touch screen +USB cable
	10.4' LCD+ 4-wire resistive touch screen + USB cable + inverter
Module options	TTL to LVDS module
Module options	TTL to VGA module
Sales hotline	+86-571- 89935913

Universal remote control single-board computer AT91SAM9263

Application:

• Textile Industry, Numeric Control Industry, Automobile Electronics, Industrial Touch Screen Control System, Robot Vision, Media Deal Wireless Application, Digital Applicance, On-board Equipment, Communication Equipment, Network Terminal, etc.

Why Qiyangtech?

1.Technical Support for lifetime.

2.Open Source.

3.Customisation Service.

4.Supply stably and chronically.

Wanna get a free Universal remote control single-board computer AT91SAM9263 catalogue?

Wanna get an accurate price of Universal remote control single-board computer AT91SAM9263?

Wanna get information of same series products of Universal remote control single-board computer AT91SAM9263?

Contact us NOW!

Janet

Contact Us

Zhejiang Qiyang Intelligent Technology Co., Ltd.: Contact nameSally Ma; Phone86-571-87858811-811; AddressFloor 5,Building 2,No.8,XiYuanYi Road,WestLake Technology Park,HangZhou City Hangzhou,Zhejiang
