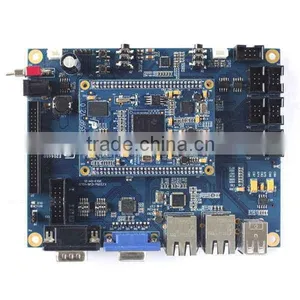

Android embedded touch screen rugged AM335X SOM LCD module
Android embedded touch screen rugged AM335X SOM LCD module Specifications
Core Module is designed by 6-floor PCB; the volume is only card size; together with CPU, DDR2 RAM, NandFlash, DataFLash, network; using 5V dc power supply, low power consumption; 2 x 100 BtoB connectors lead various commonly used interfaces; The core module is compatible with all AM335x-ARM Cortex-A8 series processors, and the users can choose different types of appropriate processor chip to reduce cost(only for bulk users).
Android embedded touch screen rugged AM335X SOM LCD module only for bulk users!
| Item | ARM CPU | ARM MHz(MAX.) | ARM MIPS(MAX.) | Graphics Acceleration | Other Hardware Acceleration |
|---|---|---|---|---|---|
| AM3359 | 1 ARM Cortex-A8 | 275 600 720 |
1200 1440 |
1 3D | 2 PRU-ICSS Crypto Accelerator |
| AM3358 | 1 ARM Cortex-A8 | 275 600 500 720 |
1000 1200 1440 |
1 3D | 2 PRU-ICSS Crypto Accelerator |
| AM3357 | 1 ARM Cortex-A8 | 275 600 720 |
550 1200 1440 |
2 PRU-ICSS Crypto Accelerator |
|
| AM3356 | 1 ARM Cortex-A8 | 275 600 500 720 |
550 1000 1200 1440 |
2 PRU-ICSS Crypto Accelerator |
|
| AM3354 | 1 ARM Cortex-A8 | 275 600 500 720 |
1000 1200 1440 |
1 3D | Crypto Accelerator |
| AM3352 | 1 ARM Cortex-A8 | 275 600 500 720 |
1000 1200 1440 |
Crypto Accelerator |
Android embedded touch screen rugged AM335X SOM LCD module Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customers' requirements(another pay)
Android embedded touch screen rugged AM335X SOM LCD module order Infomation
Software & Technical Support:
• The problems that customer encounter in the process of development on the products
• System cut, according to customer's requirements
• Develop related drivers, according to the demand of customer(another pay)
• Customized development of back plane, according to customers' requirements(another pay)
Order Information:
| Item | IAC-335X-CM Cortex-A8 Core Module | ||
|---|---|---|---|
| DVD resources | Linux | Compilers | Cross-compiler arm-arago-linux-gnueabi |
| Tool software | Supporting terminal, writing, download tools | ||
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of MLO, u-boot, kernel and file system | ||
| Test source code | Test routines and source codes of all interfaces | ||
| System source code | Including bootloader, kernel, kernel, QT source code and madplay | ||
| Android | Tool software | Supporting terminal, writing, download tools, sync software | |
| Device manual | Main components' datasheet of back plane | ||
| User manual | About all development and use | ||
| Image file | Image file of MLO, u-boot, kernel and file system | ||
| Source code | Including u-boot, kernel and file system | ||
| LCD options(another pay) | 4.3'LCD module + 4-wire resistive touch screen + USB cable | ||
| 5.6'LCD module + 4-wire resistive touch screen + USB cable | |||
| 6.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| 7'LCD module + 4-wire resistive touch screen + USB cable | |||
| 8'LCD module + 4-wire resistive touch screen + USB cable | |||
| 10.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
| Module options(another pay) | TTL to LVDS module | ||
| TTL to VGA module | |||
| Sales hotline | 86-571- 89935913 |
||
Android embedded touch screen rugged AM335X SOM LCD module Application:
1.Technical Support for lifetime.
2.Open Source.
3.Customisation Service.
4.Supply stably and chronically.
Wanna get a free Android embedded touch screen rugged AM335X SOM LCD module catalogue?
Wanna get an accurate price of Android embedded touch screen rugged AM335X SOM LCD module?
Wanna get information of same series products of Android embedded touch screen rugged AM335X SOM LCD module?
Contact us NOW!
