Home > Products > New Products > Android board development arm motherboard with ethernet
Android board development arm motherboard with ethernet
- 100000 Piece / Pieces per Month
- Shanghai or Ningbo
- T/T L/C D/P D/A Credit Card PayPal
Product Details
D/C: | QY-9M10EK | Package: | BGA | Model Number: | QY-9M10EK |
Brand Name: | QY | Place of Origin: | Zhejiang, China |
Product Description
ATMEL AT91SAM9M10 Development Board Specifications
Core Module is designed by 6-floor PCB; the volume is only card size(74*53mm); together with CPU, 128M DDR2 RAM,128M Nand Flash, 512K DataFLash, 10/100Mbps; using 5V dc power supply, low power consumption and high performance power management function, to achieve the necessary CPU core voltage conversion; Industry standard design, through the high temperature resistant B to B (2*100) connector leads to a variety of commonly used interface resources, in order to offer fast and the secondary development of use for those who do not intend to design the CPU plate themselves, and it’s suitable for the batch used by the user.
Development Board is a general standard reference design board for QY-9M10P, with commonly used interfaces, such as TFT-LCD(1280*860), touch screen, VGA, camera, 8*8 matrix keypad, external bus interface, SPI, JTAG, 1 high-speed USB2.0 Device, 1 high-speed USB2.0 Host, 2 SD card storage interfaces, 1 debug serial port , 4 RS232 serial ports and audio input, output, MIC interface, with professional reset chip, reset switch; Support +6V~+23V wide range voltage power supply; can provide a complete design material for user to develop or customize.
Chip introduction

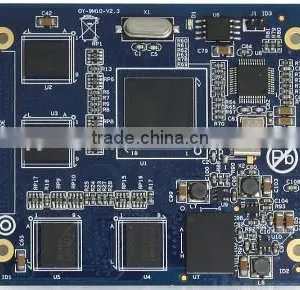

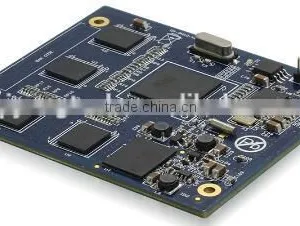

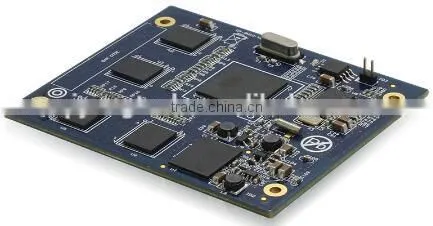

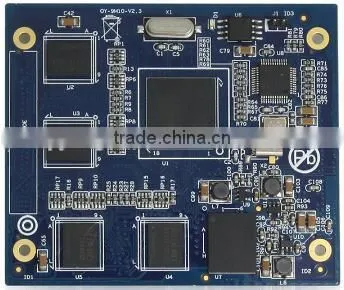

Development Board Core Module Specifications
CPU Processor
• ATMEL AT91SAM9M10,ARM926EJ-S Core
• 400MHz
DDR RAM Memory
• 128MB DDR2 RAM,133MH:,32bit data bus
FLASH Storage
• On-board 512K DataFlash (DB45041D)
• On-board 128M*8bits NandFlash (K9F1G08U0B) could change a large capacity or industrial chip according to customer's requirement.
Interfaces
• 2*100 pin 0.xmm spacing B to B (the connectors are 350°C high temperature-tested and seismic-tested)
Other Onboard Resources
• DM9161 net chip, support 10M/100M Ethernet with MII mode, more compatible than RMII;
• 1.8V, 3.3V, 5.0V voltage input
PCB Specification & Size
• Using six floors of PCB high precision process, and has the best electrical properties and anti-jamming performance
• 74 x 53 x 1.5mm
Working Parameters
• Working temperature: -20°C~ 70°C (batch user could customize -40°C~ 85°C)
• Humidity Range: 5%~ 95%, Non-Condensing
Low Power Consumption
• 5v Dc power supply, low power consumption, <1W
Support OS
• Linux2.6.30 + QT2.3 / QT4
• WindowsCE 6.0
<img src="/img/pb/056/456/751/751456056_623.jpg" alt="Hot Sale! ATMEL AT91SAM9M10 Embedded Development Board Support Wince&amp;Linux" style="width: 280px; height: 280px;">
<img src="/img/pb/058/456/751/751456058_914.jpg" alt="Hot Sale! ATMEL AT91SAM9M10 Embedded Development Board Support Wince&amp;Linux" style="width: 280px; height: 280px;">

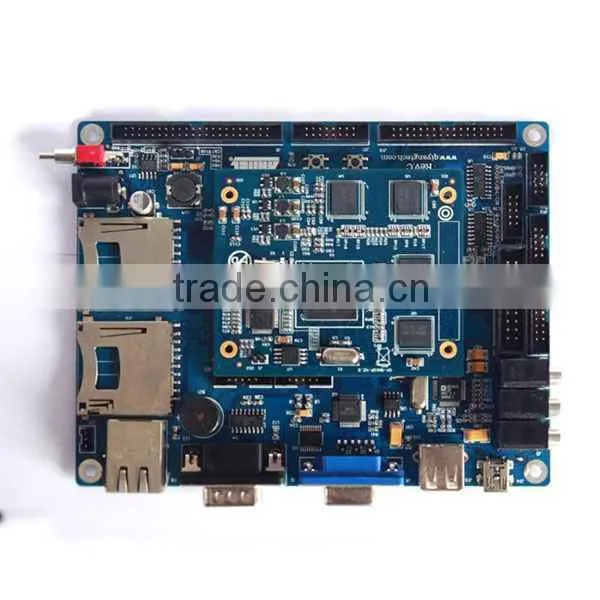

Development Board Software & Technical Support
No. | Item | Function |
---|---|---|
J3 | Earphone output interface | Audio output |
J4 | Line input interface | Audio input |
J5 | MIC input interface | MIC input |
J6 | TFT-LCD, Touch screen | Expand LCD interface, with 4-wire touch screen interface |
J8 | VGA input | VGA video output, and display connection |
J9 | Debug serial port | Download, communication |
J10 | COM 1 | 232485 reuse |
J11 | COM 2 | 232485 reuse |
J12 | COM 3 | RS232 |
J13 | COM 4 | RS232 |
J14 | US 2.0 Device | High-speed USB(480MHz), used to download program |
J15 | USB 2.0 Host | USB Host |
J16 | SD card interface 1 | SD card storage |
J17 | SD card interface 2 | SD card storage |
J18 | Ethernet interface | 10/100M self-adaptive network |
J19 | EBI bus interface | CPU internal bus |
J20 | Camera interface | COMS interface, used as video collection and GPIO |
J21 | Matrix keypad | 8 x 8 keypad interface, can used as GPIO |
J22 | SPI interface | SPI bus interface |
J23 | Standard JTAG interface | Simulation, debugging |
J24 | Power interface | +12V power supply, support +6 ~+253V wide range voltage |
K1 | System reset | System reset |
K2 | Wake-up button | Sleep state activation |
S1 | Power switch | Power supply control |
Linux Software Features
Cross-compiler | arm-2007q1-10-arm-none-linux-gnueabi-i686-pc-linux-gnu.tar.bz2 | arm-linux-gcc 4.2 |
U-boot | Version: U-boot 1.3.4 | Provided with bootstrap, U-boot source code |
Support writing into DataFlash and NandFlash start | ||
Support SAM-BA software with usb writing and TFTP network update | ||
Linux Kernel | Version: 2.6.30 | |
RTC driver, save and restore system time after power off | Provided with test program and source code | |
SPI driver | Provided with test program and source code | |
EBI driver | Provided with test program and source code | |
I2C driver | Provided with test program and source code | |
Audio driver | Provided with test program and source code | |
LCD driver, support 320*240, 640*480, 800*480, 800*600, 1024*768 resolution; | Provided special LCD with debug service | |
Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
Serial driver | Provided with test program and source code | |
PWM driver | Provided with test program and source code | |
Buzzer driver | Provided with test program and source code | |
GPIO driver | Provided with test program and source code | |
8*8 matrix keypad driver | Provided with test program and source code | |
USB driver, support mouse, keypad, U disk, WiFi, bluetooth, printer, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
SD card driver | Support large capacity storage SD card | |
File System | Jffs2 file system | Provided source code |
QT Routine | QT development environment | QT routine |
PC Development Environment | Provided with ubuntu 10.10 Linux OS, VMware 7.1.4 virtual machine and supporting development environment build manual | Convenient for user to next develop |
WindowsCE 6.0 Software Features
Bootloader | Support writing into DataFlash and NandFlash start | Optional |
Support user-defined boot logo | 1024*768 resolution, 24 bmp image | |
BSP Source Code | ||
BSP Open Source | RTC driver, save and restore system time after power off | Provided with test program and source code |
Registry saving, support saving registry information when electricity adjusted | Convenient for user to debug | |
LCD driver, support 320*240, 640*480, 800*480, 800*600, 1024*768 resolution; | Provided special LCD with debug service | |
Touch screen driver, supporting 4-wire resistive screen | Provided with test program and source code | |
SD card driver, supporting 2-wire SD card | Largest capacity support 4G | |
Audio driver, support audio input/output and MIC input | Provided with test program and source code | |
Nic driver, 10/100M self-adaptive, can be expanded gigabit nic | Provided with test program and source code | |
PWM driver | Provided with test program and source code | |
I2C driver | Provided with test program and source code | |
SPI driver | Provided with test program and source code | |
232, 485 serial driver test | Provided with test program and source code | |
support 8*8 matrix keypad, also can used as GPIO | Provided with test program and source code | |
USB driver, support mouse, keypad, U disk, printer, WiFi, bluetooth, camera, barcode scanning, etc. | Support various USB external devices, provided with debug service | |
PC Development Environment | Provided with supporting VS.NET 2005 development tools, Wince 6.0 plug-in | Convenient for user to next develop |
Development Board Order Infomation
Item | QY-9M10EK | ||
---|---|---|---|
Standard accessories | (1)12V/2A power supply (2)1-wire cross serial line (3) CD of DVD development (4)4-wire RS232 serial lines (5)mini cable (6)packing box | ||
DVD resources | Linux | Compilers | Cross-compiler arm-linux-gcc |
Tool software | Supporting terminal, writing, download tools | ||
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Image file of bootstarp, u-boot, kernel and file system | ||
Test source code | Test routines and source codes of all interfaces | ||
System source code | Including bootstrap, u-boot, kernel,?file system and QT source code | ||
Schematic | Back plane's schematic in PDF format | ||
Packaging library | Component packaging library of evaluation board | ||
Windows CE | Tool software | Supporting terminal, writing, download tools, sync software | |
Device manual | Main components' datasheet of back plane | ||
User manual | About all development and use | ||
Image file | Firstboot, Eboot, NK image file | ||
Test source code | Test routines and source codes of all interfaces | ||
BSP package | Related BSP board-level supporting package | ||
SDK | Related SDK | ||
Schematic | Back plane's schematic in PDF format | ||
Packaging library | Component packaging library of evaluation board | ||
LCD options(another pay) | 4.3'LCD module + 4-wire resistive touch screen + USB cable | ||
5.6'LCD module + 4-wire resistive touch screen + USB cable | |||
6.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
7'LCD module + 4-wire resistive touch screen + USB cable | |||
8'LCD module + 4-wire resistive touch screen + USB cable | |||
10.4'LCD + 4-wire resistive touch screen + USB cable + inverter | |||
Module options(another pay) | TTL to LVDS module | ||
TTL to VGA module | |||
Sales hotline | 86-571-87858811, 87858822 |
Development Board Application:
