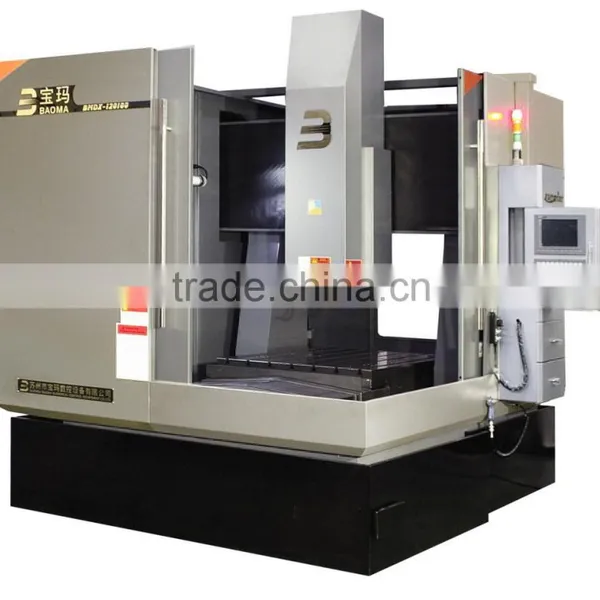

Help CenterBMDX6050 CNC Engraving and Milling Machine
Related Products
-
BMDX8060 CNC Engraving and Milling MachineUS$ 1 - 50,000MOQ: 1 Set -
BMDX120100 CNC Engraving and Milling MachineUS$ 1 - 50,000MOQ: 1 Set
-
BMDX5040 CNC Engraving and Milling MachineUS$ 1 - 50,000MOQ: 1 Set
-
New Desinged High Accuracy Mini Cnc Milling Machine Center BMDX6050US$ 1,000 - 80,000MOQ: 1 Set
-
2014 NEW SYSTERM EDM ENGRAVING Mini Metal Cnc Milling Machine Center BMDX10080-7DZUS$ 1,000 - 80,000MOQ: 1 Set
Specifications
High speed precision spindle, RPM can reach 24000Adopt precision line guide way to get good precision
1. The opening protector design makes big work piece loading easily.
2. In design we use the advanced finite element software to do dynamic simulation and construction analysis in order to
ensure the machine possesses the best construction rigidity, machining precision and machining steady.
3. X, Y, Z use precision ball bearing screw, all have be hauled advance, that will ensure machine get the best
precision and make the position error to the lowest.
4. The slop bed and the big capacity water tank make scrap to be cleaned easily.
5. The one key to make sure the machining result excellent is high speed and precision spindle. The power source for small tool engraving comes from the electric motor of high speed and precision spindle. If you want to make the small tool working in good condition, the spindle electric motor has the follow characteristics: high speed rolling, small rolling shake, and small rolling noise.
6. Excellent design makes the machine to be so good operation.
7. Using the advanced cooling-water machine to cool down the spindle, to make sure the spindle keeping long life and machining having high precision.
Our company offer Taiwan SYNTEC, LNC or Germany PA system according to the customer’s request, and try our best to
offer you the best products.
Taiwan Syntec940i specialist control system
1. Be able to connect the man-machine communicated interface of Easy view and Digital
2. Wide range to connect with other equipment
3. Convenient to communicate through the figural interface
4. Convenient to renew the software through the mobile hard disk
5. Control several axes in different synchronous way by PLC
6. The function of video mending
7. Nice panel design and steady controller design
Parameters
| Travel/space | X/Y/Z axis travel | mm | 500/600/260 |
| Table upper surface to spindle nose end face | mm | 120-380 | |
| Accuracy | Positioning | mm | ±0.005/300 |
| Repeatability | mm | ±0.003/300 | |
| Table | Table dimension | mm | 550x700 |
| Max. load on table | Kg | 400 | |
| Power(X Y Z) | Kw | 0.85,0.85,0.85 | |
| T shape groove | mm | 14TxP100x5 | |
| Spindle |
24000rpm / 4kw / ER25 | 18000rpm / 5kw / BT30 (Tool Diamter 3.175-16) |
||
| Feeding speed | Rapid speed(X/Y/Z) | mm/min | 7500 |
| Cutting speed(X/Y/Z) | mm/min | 6000 | |
| Outer size and weight | Machine height | mm | 2050 |
| Floor space | mm | 1894x1910 | |
| Net weight | Kg | 3000 | |
| Total input power | Kw |
14/16 |
|
